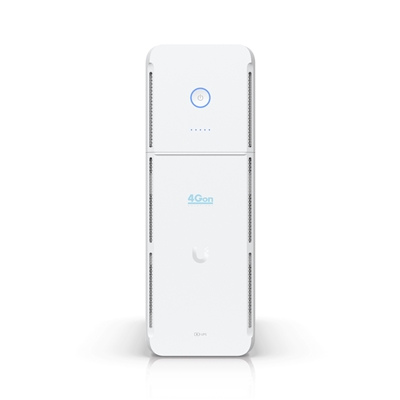

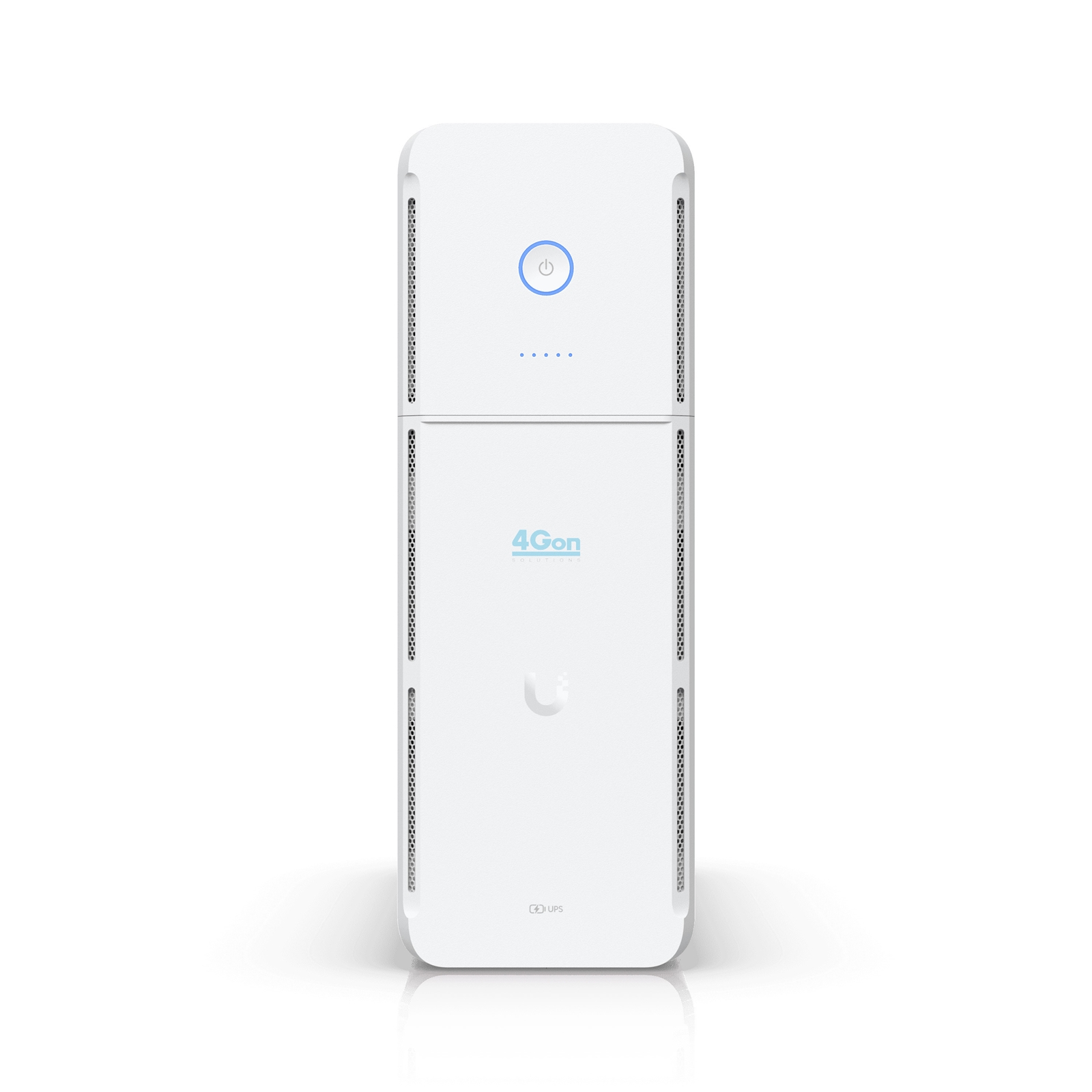

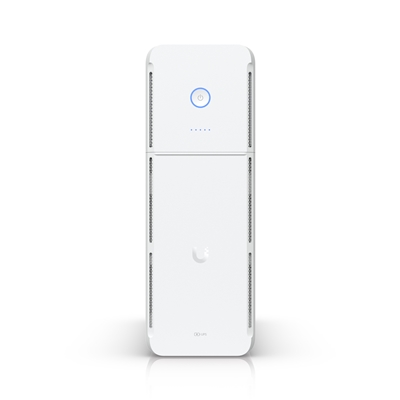

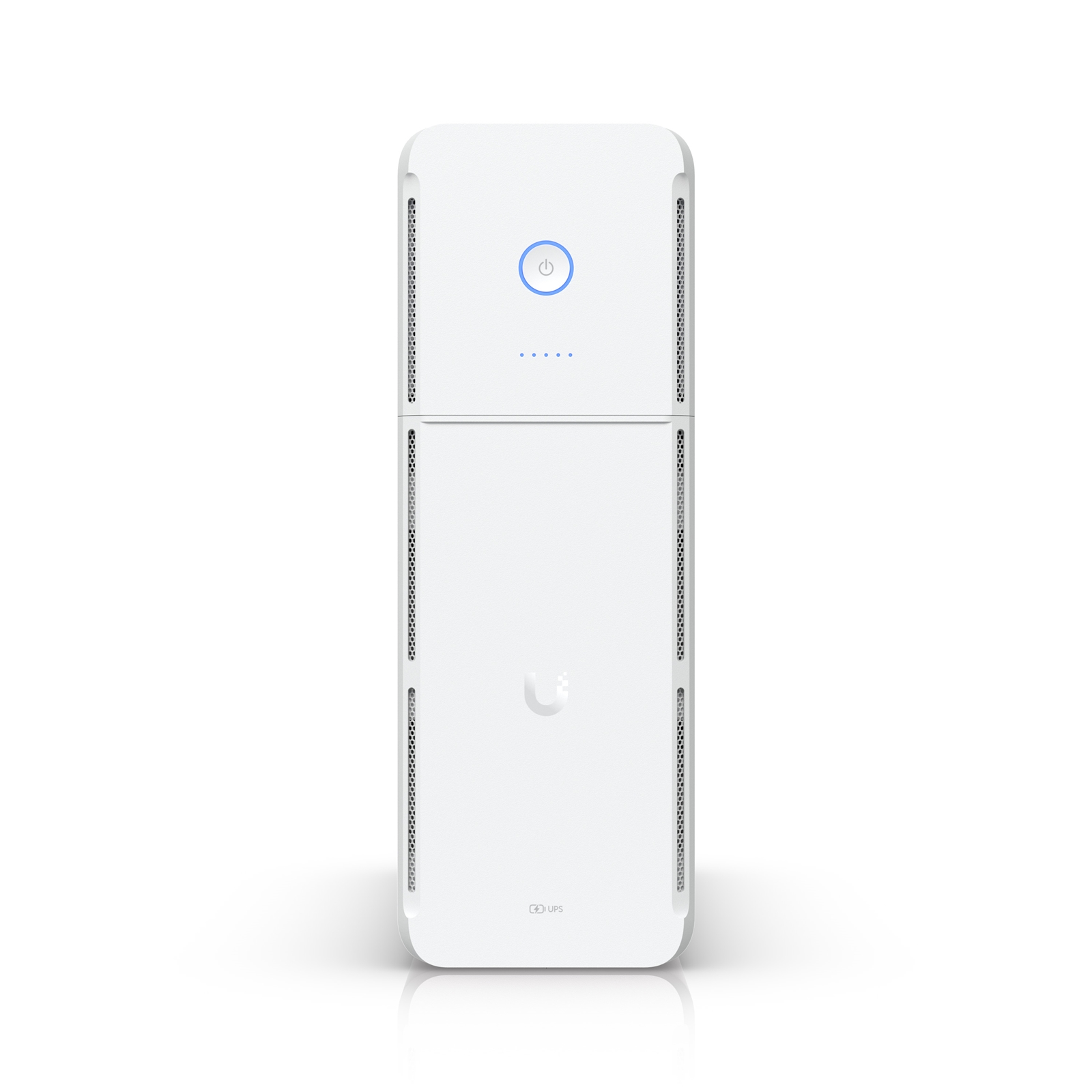

Ubiquiti UniFi UPS Tower

UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.

Specifications

Mechanical

Dimensions
288 x 99 x 280.5 mm
(11.3 x 3.9 x 11")

Weight
7.85 kg (17.3 lb)

Enclosure Material
Polycarbonate and acrylonitrile butadiene styrene blend

Form Factor
Desktop

Weatherproofing
IP20

Hardware

Management

Ethernet
Networking Interface
(1) 100/10 MbE port for network connection
(2) GbE ports for surge in/out

Power
(1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord
(5) Battery backup/surge protection: C13
(5) Surge protection: C13

Capacity
1,000VA/600W

Type
Line interactive

Input Voltage Range
170—280V AC

Power Method
(1) TN system, 220—240V AC, 6A Max., 50/60 Hz

Nominal Input Voltage
230V AC

Output Voltage
220—240V AC

Nominal Output Voltage
230V AC

Frequency Range
AC mode: 50/60 Hz ±5 Hz (Auto sensing)
Battery mode: 50 Hz ±1 Hz

AC Voltage Regulation
±10% (Battery mode)

Transfer Time
6 ms typical; 10 ms max. (Battery mode)

Wave Form
Simulated sine wave (Battery mode)

Battery Type
(1) Lead Acid 12V, 9Ah

Runtime
Full load: 2 min
Half load: 7 min

Battery Charging Time
6-8 hours recovery to 90% capacity

Overload at On-Line Mode
110% 5 min go to fault
120% go to fault immediately

Overload at Battery Mode
110% shutdown in 5 sec
120% shutdown immediately

Short Circuit Protection at On-Line Mode
Breaker, 250V AC, 10A
Output Short-Circuit Current
Ipeak 401.9A
Irms 160.7A

Buttons
(1) Power
(1) Factory reset

LEDs

Status
Off: device not turned on
Flashing white: initializing / factory default
Steady white: waiting for adoption
Steady blue: device adoption and working
Flashing blue: battery mode
Alternating white/blue: firmware upgrading
Rapid flashing blue: locate
Steady red: warning
Flashing red: low battery

Battery Indicator
All off: 0%
(1) Steady blue: battery 1—19%
(2) Steady blue: battery 20—39%
(3) Steady blue: battery 40—59%
(4) Steady blue: battery 60—79%
(5) Steady blue: battery 80—100%

Operating Altitude
3,000 m (1.9 mi)

Operating Environment
Pollution Degree 2

Ambient Storage Temperature
-20 to 50 C (-4 to 122 F)
Ambient Operating Temperature
0 to 40 C (32 to 104 F)
Ambient Operating Humidity
0 to 95% noncondensing

Certifications
CE, IEC 62040-1
