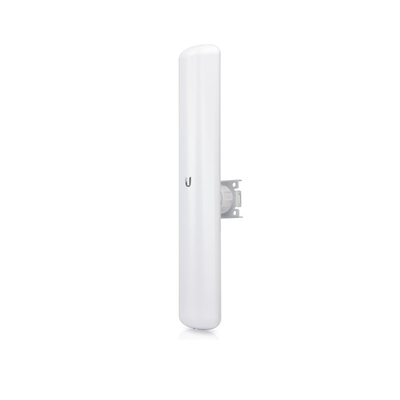

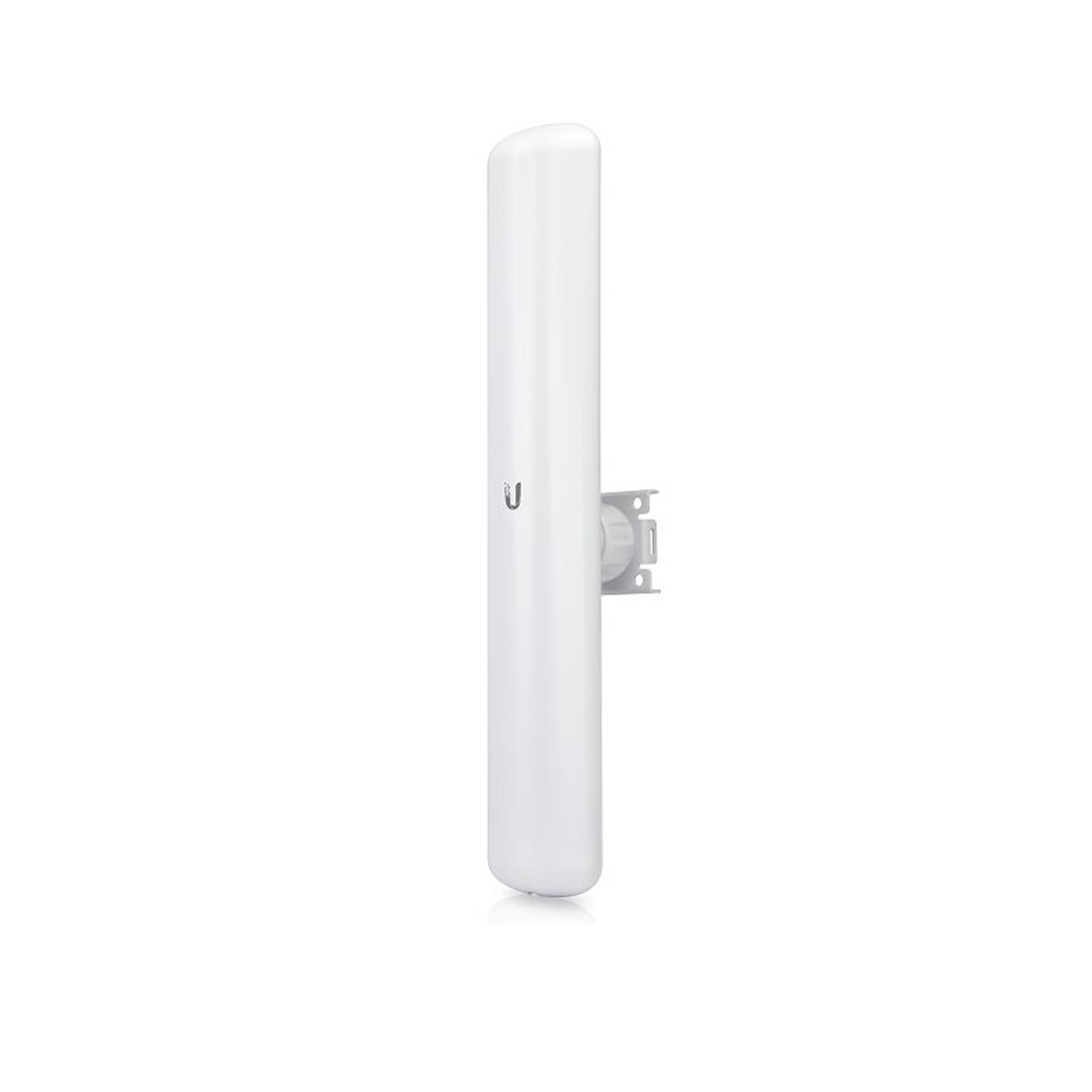

2x2 MIMO airMAX ac Sector AP
The LiteAP ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.

airMAX ac Sector Coverage
The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120d coverage area.

Now with airOS8
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Lightweight and Sleek Design
The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.

Installation Flexibility
Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

Specifications

Frequency
5 GHz

Throughput
450+ Mbps

Ports
(1) 10/100/1000 Ethernet Port

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Certification	FCC, IC, CE
Compliance certificates	RoHS
ENERGY MANAGEMENT
Power source type	PoE
Power consumption (max)	7 W
FEATURES
Certification	FCC, IC, CE
Antenna type	MIMO directional antenna
Product colour	White
Mounting	Pole
LOGISTICS DATA
Harmonized System (HS) code	85177100
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 70 °C
PACKAGING CONTENT
Cables included	AC
Quick installation guide	Yes
Mounting kit	Yes
Quantity per pack	1 pc(s)
PERFORMANCE
Processor frequency	533 MHz
Internal memory	64 MB
Processor model	Atheros MIPS 74Kc
Cabling technology	10/100/1000Base-T(X)
Frequency band	5 GHz
Antenna gain level (max)	16 dBi
Built-in processor	Yes
Bandwidth note	5150 - 5875 MHz
TECHNICAL DETAILS
Sustainability certificates	RoHS
Compliance certificates	RoHS
WEIGHT & DIMENSIONS
Weight	420 g
Height	452.3 mm
Width	78.7 mm
Depth	54.4 mm
