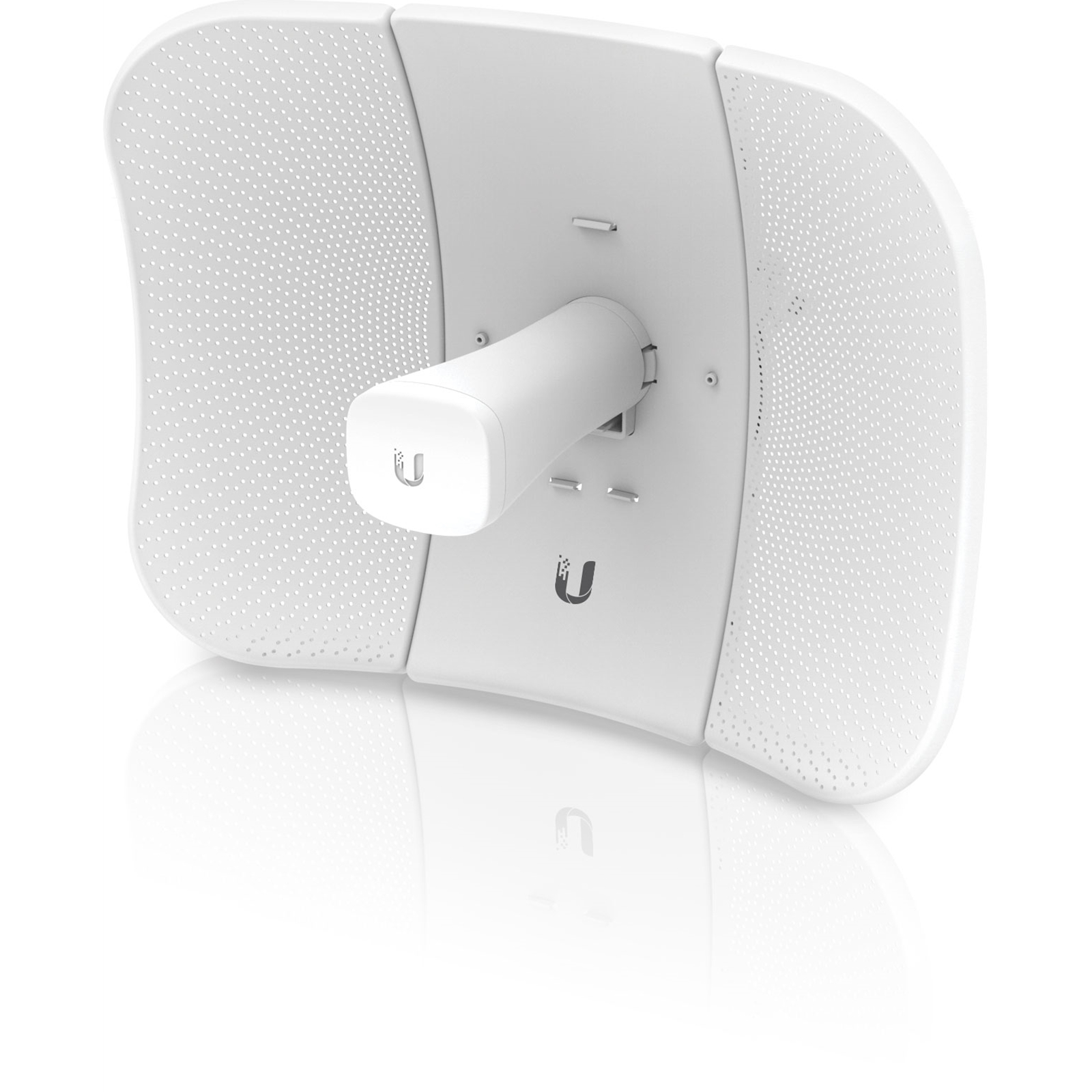

Ubiquiti LBE-5AC-GEN2 LiteBeam AC Gen2 2x2 MIMO airMAX Outdoor Wireless AC CPE Bridge

NPUBI-LBE5ACG2
Key Specifications
TypeCPE
Speed450+ Mbps
POE Capability24v
RangeN/A
Antenna Gain23 dBi
/productImages/80/NPUBI-LBE5ACG2.JPG
/productImages/80/129318.JPG
/productImages/80/129319.JPG
/productImages/80/129320.JPG
Manufacturer : UBIQUITI
EAN : 810354026317
Manufacturer Part Code : LBE-5AC-GEN2
Weight : 0.98 kg
Login For Pricing

Key Specifications
TypeCPE
Speed450+ Mbps
POE Capability24v
RangeN/A
Antenna Gain23 dBi
Manufacturer :
UBIQUITI

EAN :
810354026317

Manufacturer Part Code :
LBE-5AC-GEN2

Weight :
0.98 kg
Recommended Products

2x2 MIMO airMAX ac CPE

The LiteBeam AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.

Management Wi-Fi Radio
The LiteBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam� AC offers a more robust mount with separate azimuth and elevation adjustments.

Now with airOS8 and airView
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam AC fully assembles in seconds no tools needed. Only a single wrench is required for pole-mounting.

Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam AC is ideal for shipping and logistics.

Specifications

Model: LBE-5AC-Gen2
Throughput: 450+ Mbps
Management Radio: Yes
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
Antenna gain level (max) 23 dBi
CERTIFICATES
Certification CE, FCC, IC
DATA TRANSMISSION
Maximum data transfer rate 450 Mbit/s
ENERGY MANAGEMENT
Power over Ethernet (PoE) Y
FEATURES
Internal memory 64 MB
Material Plastic
LED indicators LAN, Power
Product colour White
Product type Network bridge
LOGISTICS DATA
Harmonized System (HS) code 85176990
MANAGEMENT FEATURES
Web-based management Y
NETWORKING
Ethernet LAN Y
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -40 - 158 °F
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 1
SECURITY
Security algorithms WPA2
TECHNICAL DETAILS
Harmonized System (HS) code 85176990
WEIGHT & DIMENSIONS
Dimensions (WxDxH) 358 x 271.95 x 272.5 mm
Weight 980 g
WIRELESS LAN FEATURES
Modulation 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Modulation 16-QAM,64-QAM,256-QAM,BPSK,QPSK
Frequency band 2.412 - 2.462, 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz
