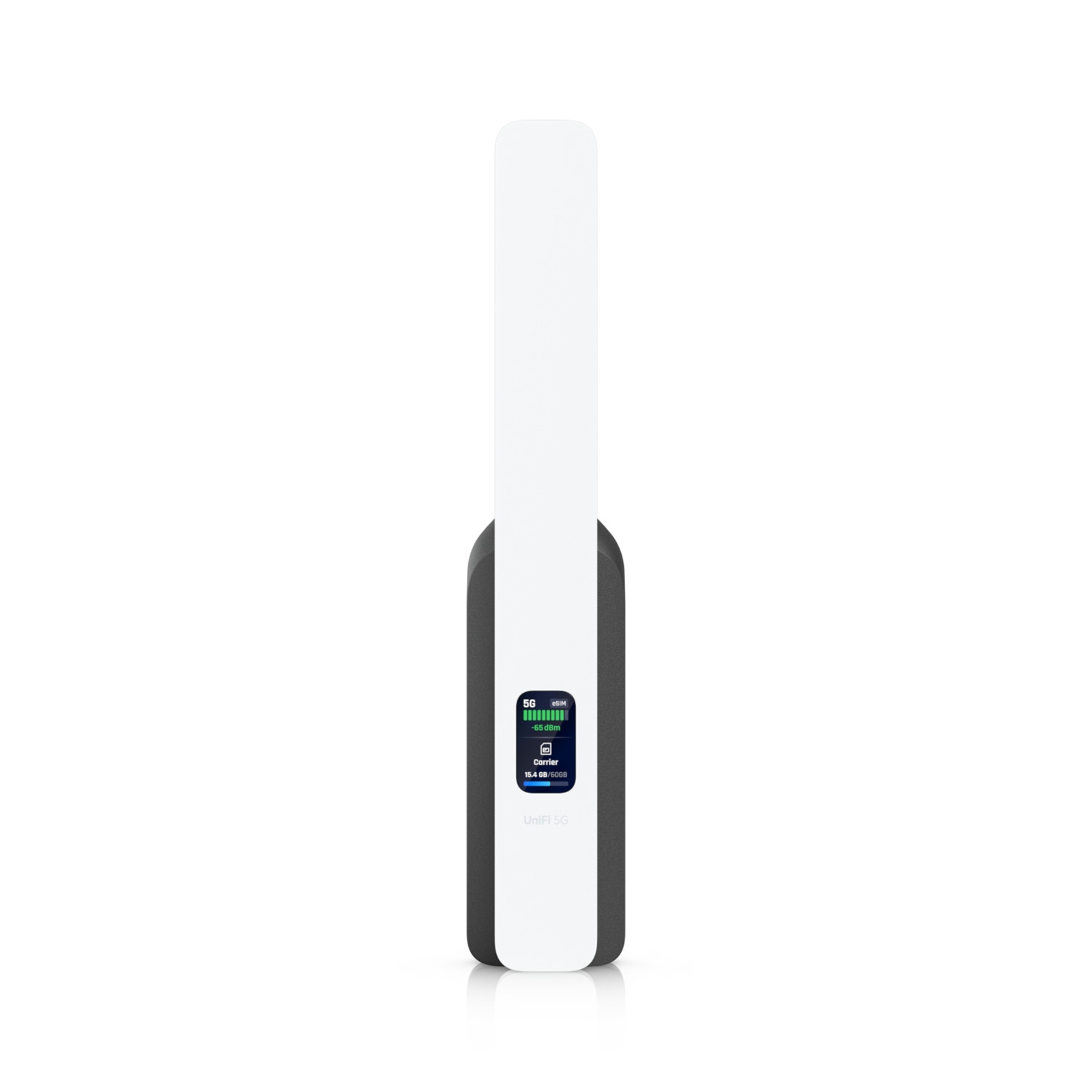

Ubiquiti 5G Backup
Compact PoE-powered 5G RedCap antenna system with versatile mounting that plugs into any UniFi PoE port to provide automatic internet backup.
Note. Supports 5G RedCap and LTE networks. 5G connectivity requires carrier-specific 5G Standalone (SA) and RedCap subscription support; otherwise, the device will operate via LTE fallback.
Specifications
Overview
Dimensions
Device: 200 x 38 x 20.2 mm
(7.9 x 1.5 x 0.8")
Table stand: 48.1 x 48 xx55.2 mm
(1.9 x 1.9 x 2.2")
Networking Interface
(1) GbE RJ45 port
5G RedCap and LTE
SIM
(1) Nano SIM (4FF)
(1) eSIM
PoE Interface
(1) PoE input
Mounting
Desktop stand, wall, window mount (Included)
Mechanical
Weight
Device: 122 g (4.3 oz)
Stand: 138 g (4.9 oz)
Wall mount: 66 g ( 2.3 oz)
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material?
Galvanized steel, silicone rubber
Hardware
Management
Ethernet
5G NR
Category - 5G RedCap
Frequency Bands - n1, n3, n5, n7, n8, n20, n26, n28, n40, n41, n77, n78
Max. TX Power
23 dBm
4G LTE
Frequency Bands - B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B38, B40, B41, B42, B43
Max. TX Power - HPUE power class 2: 26 dBm
Peak Data Speed
5G SA - Downlink 220 Mbps / Uplink 120 Mbps
4G LTE - Downlink 195 Mbps / Uplink 100 Mbps
Antennas
Type - (2) Embedded omni-directional cellular antennas
Power Method
PoE
Display
1.14" status display
Buttons
(1) Factory reset
Ambient Operating Temperature
0 to 40 C (32 to 104 F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE
Software
Application Requirements
UniFi Network - Version 10.4.57 and later
Mobile App
UniFi iOS version 10.35.0 and later
UniFi Android version 10.38.2 and later
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
There are currently no data sheets available for this product.
