All-in-one enterprise security gateway & network appliance for small to medium-sized businesses. The optimal experience for larger networks.

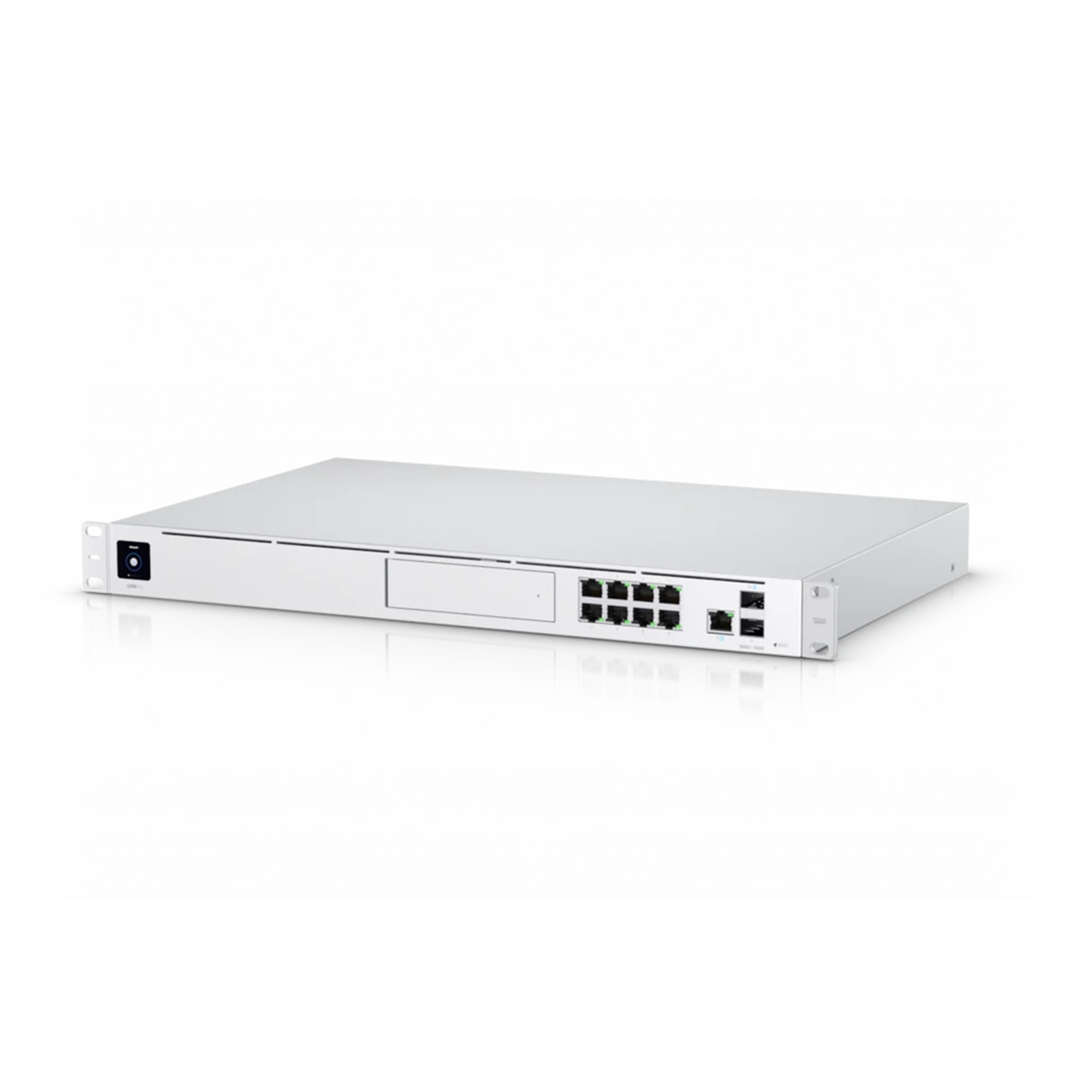

UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.
All-in-one 1U rack appliance for small to medium sized businesses
Combines new UniFi OS with 8-port switch and security gateway
UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support
8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN
Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
Powered by fast 1.7 GHz quad-core processor
Dimensions
Width x Height x Depth:
442.4 x 43.7 x 285.6 mm
(17.42 x 1.72 x 11.24")
Weight: 3.90 kg (8.60 lb)
With Mounting Kits:
3.99 kg (8.80 lb)
Package Contents
(2) Rackmount Brackets
(8) Bracket Screws
(4) Mounting Screws
(4) Cage Nuts
(1) Security Screw
(4) 2.5" HDD Screws
Power Cord
(4) Rubber Feet
Interfaces
(8) 10/100/1000 RJ45 LAN Ports
(1) 10/100/1000 RJ45 WAN Port
(1) 1/10G SFP+ LAN Port
(1) 1/10G SFP+ WAN Port
Management Interfaces
Ethernet In-Band
(1) Bluetooth BLE
Technical Information
IDS/IPS Throughput: 3.5 Gbps *
Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
System Memory: 4 GB DDR4
On-Board Flash Storage: 16 GB eMMC
* Measured with iPerf3.
Environment
Operating Temperature: -10° to 40° C (14° to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Power
Max. Power Consumption: 33W
Voltage Range: 100 to 240VAC
Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz
Redundant Power: (1) RPS DC Input
Power Supply: Internal 50W/12V
ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
CERTIFICATION
|
| Certification |
CE, FCC, IC |
DATA TRANSMISSION
|
| Throughput |
3.5 Gbit/s |
DESIGN
|
| Certification |
CE, FCC, IC |
| Rack mounting |
Yes |
| LED indicators |
Yes |
| Product colour |
White |
ENERGY MANAGEMENT
|
| Number of power supply units |
1 |
| Redundant power supply (RPS) support |
Yes |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| DC input voltage |
12 V |
| Power consumption (max) |
33 W |
| Power supply included |
Yes |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
| Switch type |
Managed |
NETWORKING
|
| 10G support |
Yes |
PERFORMANCE
|
| Processor frequency |
1700 MHz |
| Internal memory |
4096 MB |
| Processor model |
ARM Cortex-A57 |
| Flash memory |
16000 MB |
| Built-in processor |
Yes |
| Harmonized System (HS) code |
85176990 |
PORTS & INTERFACES
|
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
9 |
| SFP+ module slots quantity |
2 |
WEIGHT & DIMENSIONS
|
| Weight |
3.9 kg |
| Height |
43.7 mm |
| Width |
442.4 mm |
| Depth |
285.6 mm |
