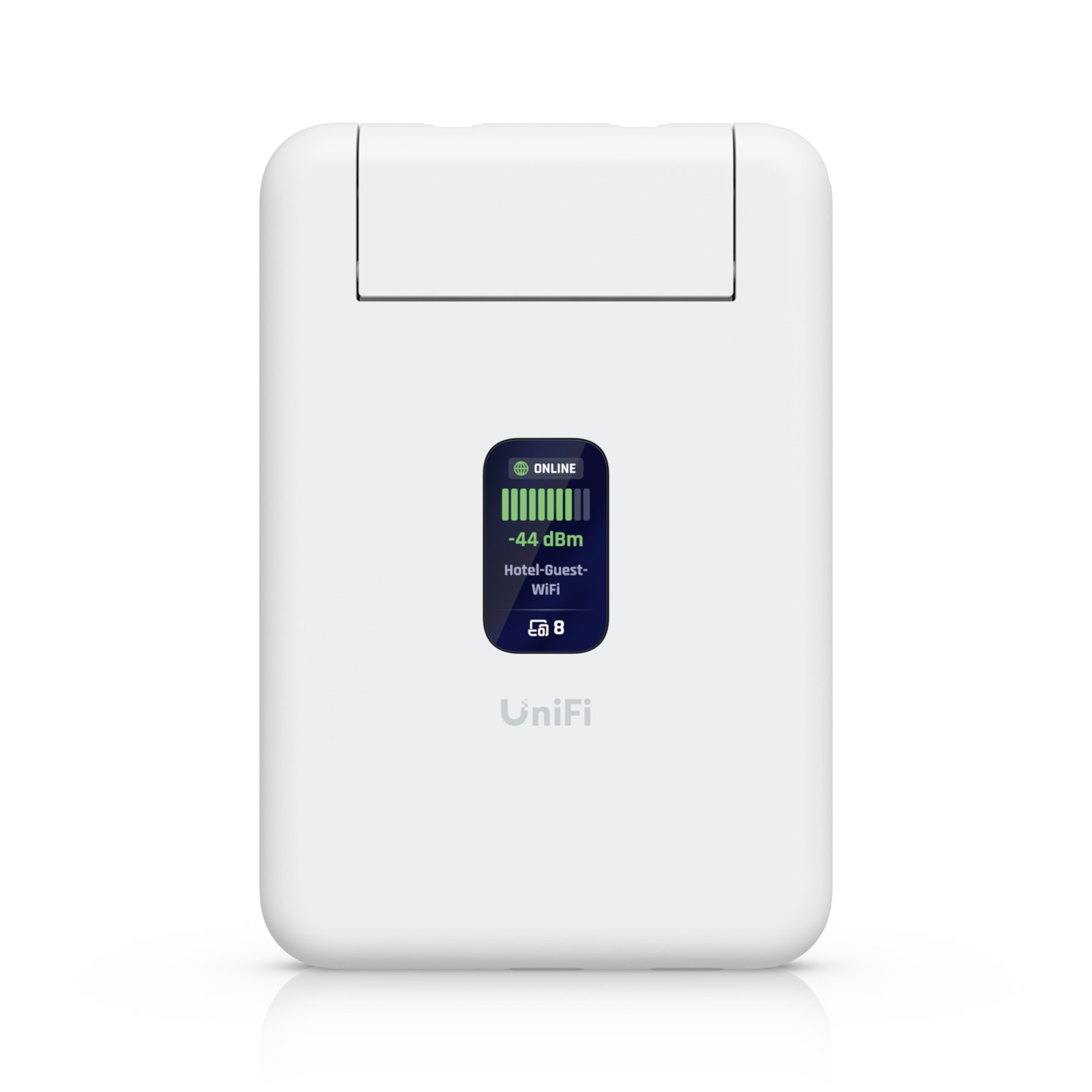

Ubiquiti UniFi Travel Router

An ultra-slim travel router that instantly extends your UniFi Network wherever you are, bringing secure, familiar connectivity to remote locations.

No UniFi Account required. Works in stand-alone device mode.
WireGuard VPN supported.

Specifications

Overview

Dimensions
95.95 x 65 x 12.5 mm
(3.8 x 2.6 x 0.5")

Uplink
(2) GbE RJ45 ports
WiFi

WiFi Standards
WiFi 5

Mechanical

Weight
89 g (3.1 oz)

Enclosure Material
Polycarbonate

Features

WAN
WiFi - Yes
Ethernet - Yes

VPN Client
OpenVPN - Yes
WireGuard - Yes

Port Forwarding
Yes

Firewall
Yes

Networking

Supported Data Rates
802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

Hardware

Management
Ethernet
Bluetooth

Antennas
Type - (2) Embedded WiFi antennas

Max. TX Power
2.4G: 13 dBm
5G: 13 dBm

WiFi MIMO
2 x 2

Max. Power Consumption
5W

Power Method
USB-C

Power Supply
USB-C, 5V/2A
(Adapter not included)

Display
1.14" status display

Buttons
(1) Factory-reset

Ambient Operating Temperature
-10 to 40 °C (-40 to 104 °F)

Ambient Operating Humidity
5 to 95% noncondensing

NDAA Compliant
Yes

Certifications
CE, FCC, IC

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ANTENNA
Antennas quantity	2
Antenna design	Internal
CERTIFICATION
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
DESIGN
Product colour	White
Housing material	Polycarbonate (PC)
Built-in display	Yes
Product type	Portable router
MANAGEMENT FEATURES
Reset button	Yes
MIMO	Yes
Number of data streams	2x2
MOBILE NETWORKING
SIM card slot	No
NETWORKING
Ethernet LAN	Yes
VPN support	OpenVPN, WireGuard
Port forwarding	Yes
Ethernet LAN interface type	Gigabit Ethernet
Maximum Tx power (2.4 GHz)	13 dBmW
Maximum Tx power (5 GHz)	13 dBmW
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-10 - 40 °C
PACKAGING CONTENT
Cables included	USB Type-C to USB Type-C
Manual	Yes
PACKAGING DATA
Cables included	USB Type-C to USB Type-C
Manual	Yes
Number of products included	1 pc(s)
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	2
USB port	Yes
POWER
Power source type	USB
SECURITY
Firewall	Yes
TECHNICAL DETAILS
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
WAN CONNECTION
DSL WAN	No
Ethernet WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No
WEIGHT & DIMENSIONS
Weight	89 g
Height	96 mm
Width	65 mm
Depth	12.5 mm
WIRELESS LAN FEATURES
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	867 Mbit/s
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
