PLEASE NOTE THIS PRODUCT IS ONLY SUPPLIED WITH AN EU PLUG - NO UK PLUG SUPPLIED

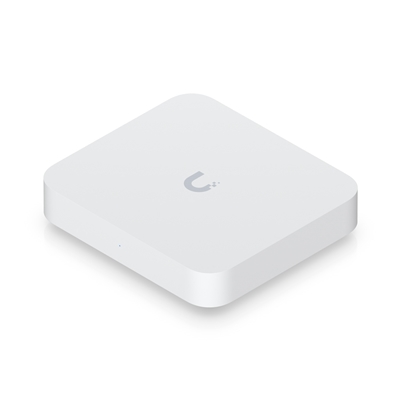

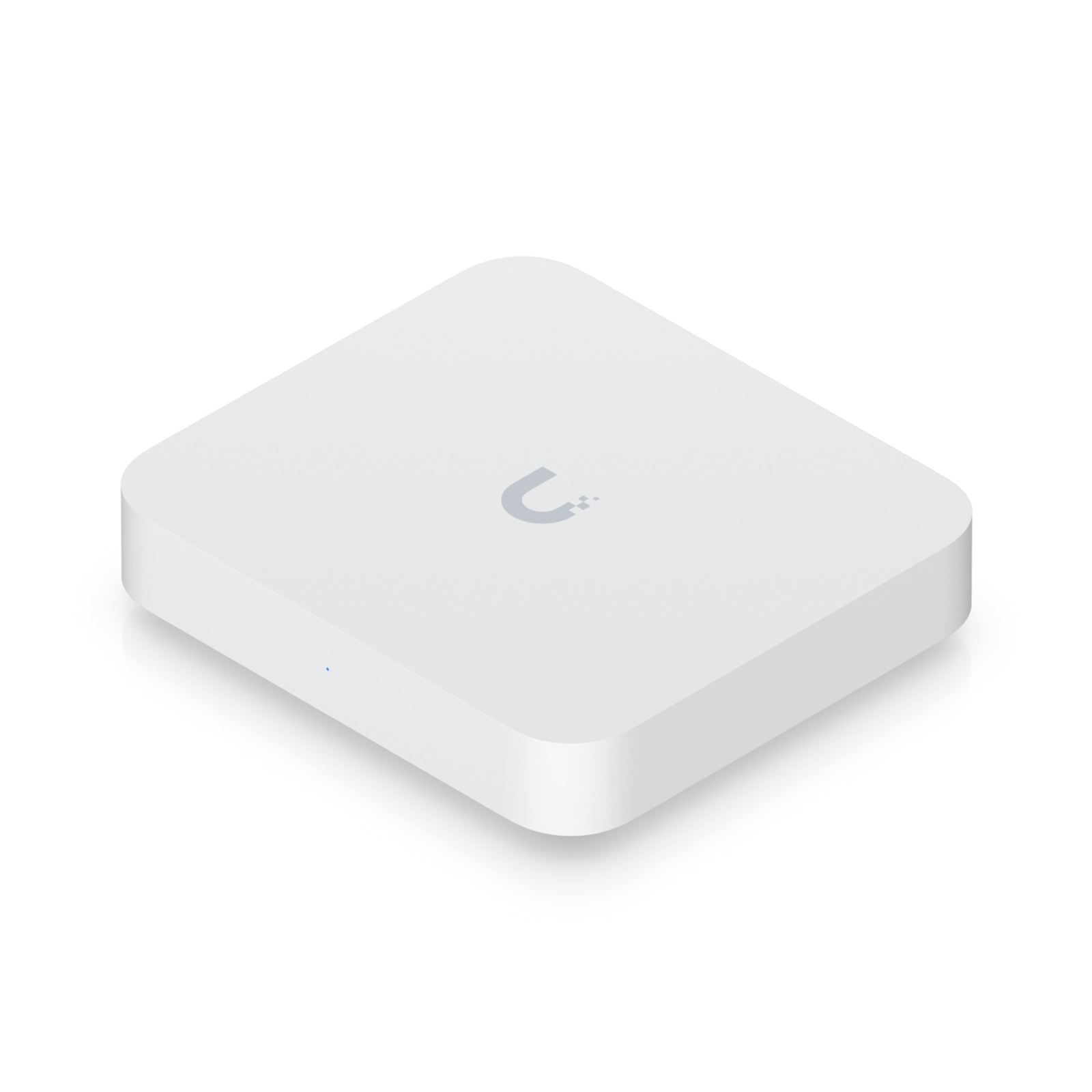

Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
Up to 1.5 Gbps routing with IDS/IPS
(1) 2.5 GbE WAN port
(4) 2.5 GbE LAN ports, including (1) remappable to WAN
USB-C powered
Managed with UniFi Network 8.1.113 and later
Performance
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Internet quality and outage reporting
Next-Generation Security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced Networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity Enterprise VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IPv6 ISP support
Dimensions
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight
520 g (1.1 lb)
Enclosure Material
Polycarbonate
Resistance
IK04
Processor
Quad-core ARM Cortex-A53 at 1.5 GHz
Memory Information
2GB DDR4
Management Interface
Ethernet
Bluetooth
Networking Interface
LAN:
(4) 2.5 GbE RJ45 ports
WAN:
(1) 2.5 GbE RJ45 port
IDS/IPS Throughput
1.5 Gbps*
*Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation.
Power Method
USB type C (5V/3A)
Supported Voltage Range
100–240V
Maximum Power Consumption
9.6W
LED
Ethernet
White: link/activity
Button
(1) Factory reset
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
CERTIFICATES
|
| Certification |
CE, FCC, IC |
DESIGN
|
| Certification |
CE, FCC, IC |
| LED indicators |
Yes |
| Product colour |
White |
| Enclosure material |
Polycarbonate (PC) |
DISPLAY
|
| Control display unit |
No |
ENERGY MANAGEMENT
|
| Input voltage |
100 - 240 V |
| Power consumption (max) |
9.6 W |
ILLUMINATION/ALARMS
|
| LED indicators |
Yes |
MANAGEMENT FEATURES
|
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
NETWORKING
|
| Data transfer rate |
1.5 Gbit/s |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 40 °C |
PERFORMANCE
|
| Processor frequency |
1500 MHz |
| Processor model |
Cortex-A53 |
| Certification |
CE, FCC, IC |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Control display unit |
No |
PORTS & INTERFACES
|
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
4 |
TECHNICAL DETAILS
|
| Processor frequency |
1500 MHz |
| Built-in processor |
Yes |
WEIGHT & DIMENSIONS
|
| Weight |
520 g |
| Height |
30 mm |
| Width |
141.8 mm |
| Depth |
127.6 mm |
