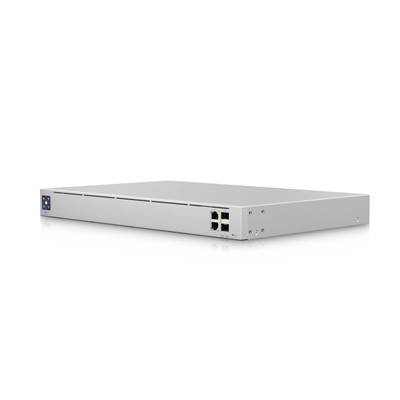

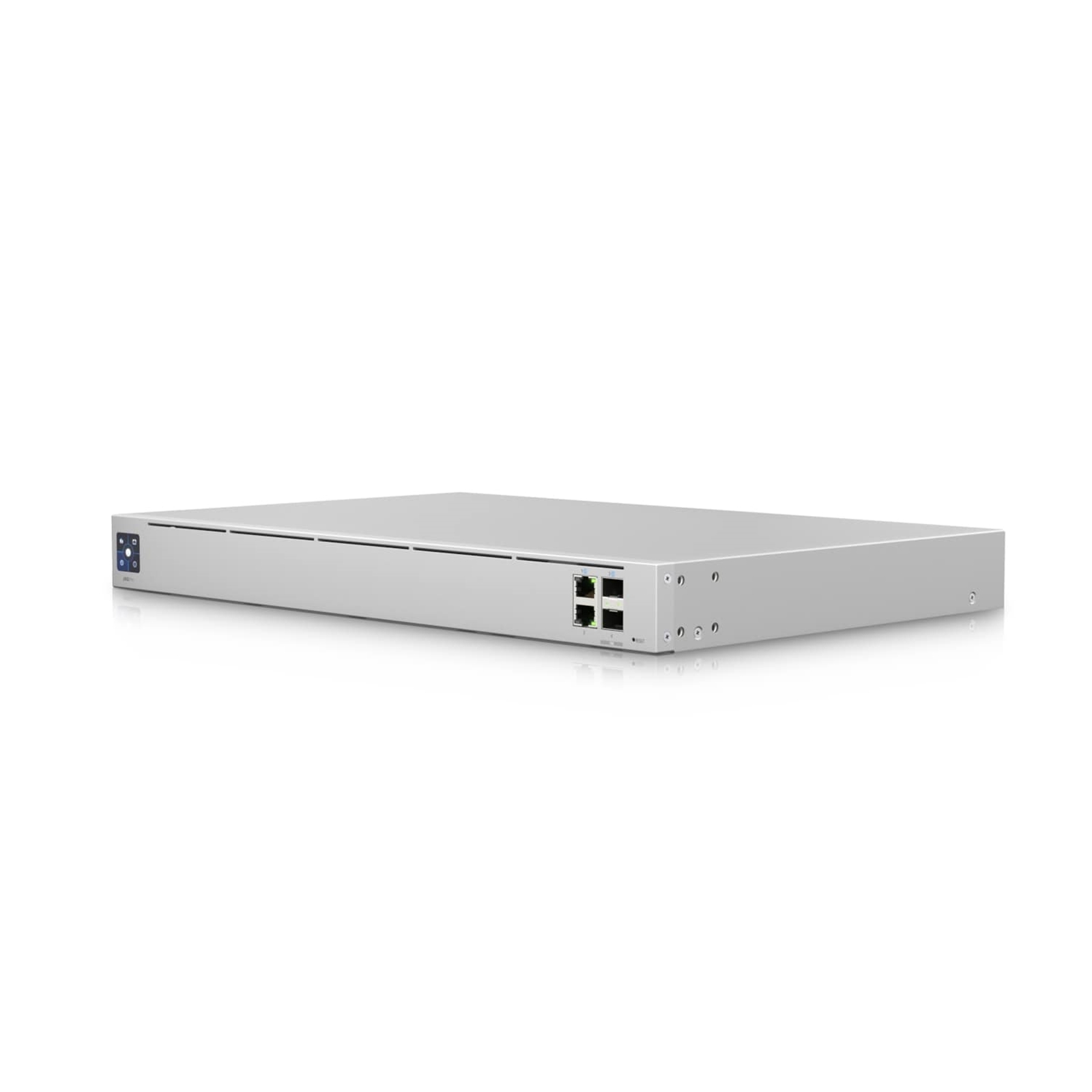

The UniFi Next-generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks.
The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications. It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration.
The UXG Pro can be paired with a Cloud Key Gen2 Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application (web/mobile).
Key Features
1.7 GHz quad-core processor
(2) WAN ports (GbE RJ45 and 10G SFP+) with failover support
(2) LAN ports (GbE RJ45 and 10G SFP+)
Enterprise-class DPI, IPS/IDS, and layered firewall configuration
Power redundancy when connected to the UniFi SmartPower RPS (sold separately)
SmartPower outlet (125VAC/2A) for an external modem
1U-sized, rack-mountable device
Specifications
Physical
Dimensions
442.4 x 43.7 x 285.6 mm
Weight
3.42KG
Hardware
Processor Specs
Quad-core ARM Cortex-A57 at 1.7 GHz
Memory Information
2Gb DDR4
Management Interface
Ethernet
Networking Interface
LAN
1 x GbE RJ45 port
10G SFP+ port
WAN
1 x GbE RJ45 port
10G SFP+ port
Buttons
Factory Reset
Power Method
AC Input - 200-240VAC 1.7A 50/60Hz
RPS DC Input - 11.5VDC 2.87A
Power Supply
AC/DC internal 50W
Max Power Consumption
30W
Environmental
ESD/EMP protection
Air: ± 15 kV, contact: ± 8 kV
Operating temperature
-10 to 40° C (14 to 104° F)
Operating humidity
5 - 95% noncondensing
Certifications
CE, FCC, IC
Box Contents
UXG-PRO
Rackmount Ears
Rackmount screws
Rack screws and nuts
Rubber Feet (desktop use)
Power Cord
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
DESIGN
|
| LED indicators |
LAN, Power |
| Rack capacity |
1U |
| Mounting type |
Rack mounting |
| Enclosure material |
Aluminum |
DISPLAY
|
| Display diagonal |
3.3 cm (1.3") |
| Touchscreen |
Y |
| Control display unit |
Y |
ENERGY MANAGEMENT
|
| Power supply |
50 W |
| Input voltage |
200 - 240 V |
| Input frequency |
50 - 60 Hz |
ILLUMINATION/ALARMS
|
| LED indicators |
LAN, Power |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
| Reset button |
Y |
MEMORY
|
| Internal memory |
2048 MB |
NETWORKING
|
| Ethernet LAN data rates |
1000 Mbit/s |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 40 °C |
PERFORMANCE
|
| Processor frequency |
1700 MHz |
| Internal memory |
2048 MB |
| Number of processors installed |
1 |
| Built-in processor |
Y |
| Control display unit |
Y |
PORTS & INTERFACES
|
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
2 |
SUSTAINABILITY
|
| Sustainability certificates |
CE |
TECHNICAL DETAILS
|
| Processor frequency |
1700 MHz |
| Number of processors installed |
1 |
| Built-in processor |
Y |
| Harmonized System (HS) code |
85176990 |
WEIGHT & DIMENSIONS
|
| Weight |
3.42 kg |
| Height |
43.7 mm |
| Width |
442.4 mm |
| Depth |
285.6 mm |
