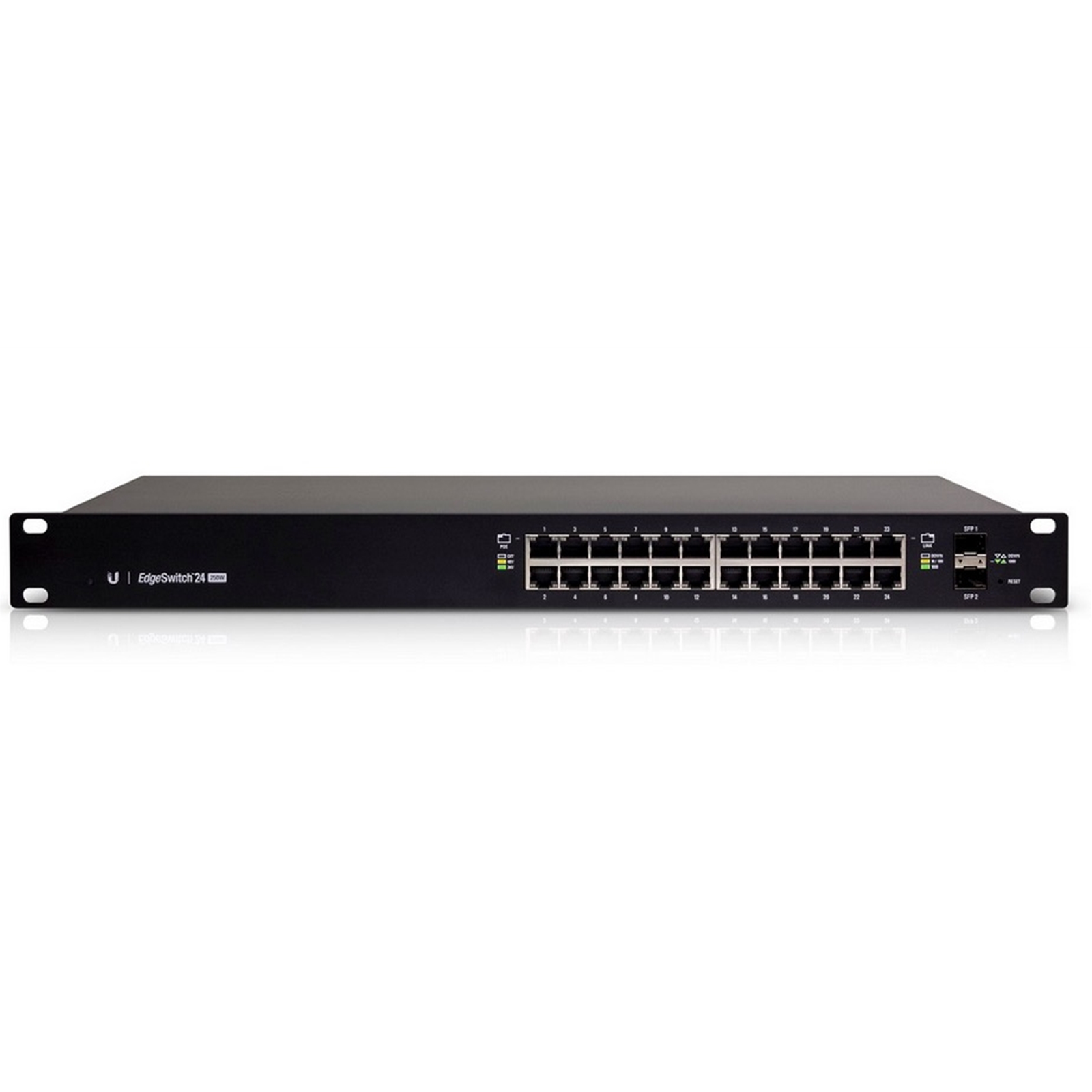

Powerful Enterprise Switch Models
The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.

Enterprise-Class Features
The EdgeSwitch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Convenient PoE+ Support
The EdgeSwitch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

Specifications

Total Non-Blocking Throughput
26 Gbps

Gigabit RJ45 Ports
24

SFP+ Ports
N/A

SFP Ports
2

Max. Power Consumption
250W

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Certification	CE, FCC, IC
DATA TRANSMISSION
MAC address table	8000 entries
Switching capacity	52 Gbit/s
Throughput	38.69 Mpps
DESIGN
Certification	CE, FCC, IC
Rack mounting	Y
Form factor	1U
LED indicators	Activity, Link, PoE
Product colour	Black
ENERGY MANAGEMENT
Power consumption (typical)	250 W
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
MANAGEMENT FEATURES
Switch layer	L2/L3
Switch type	Managed
NETWORKING
Networking standards	IEEE 802.3af,IEEE 802.3at
10G support	N
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-5 - 40 °C
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
SFP module slots quantity	2
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Y
WEIGHT & DIMENSIONS
Weight	3.7 kg
Height	44.5 mm
Width	485 mm
Depth	285.6 mm
