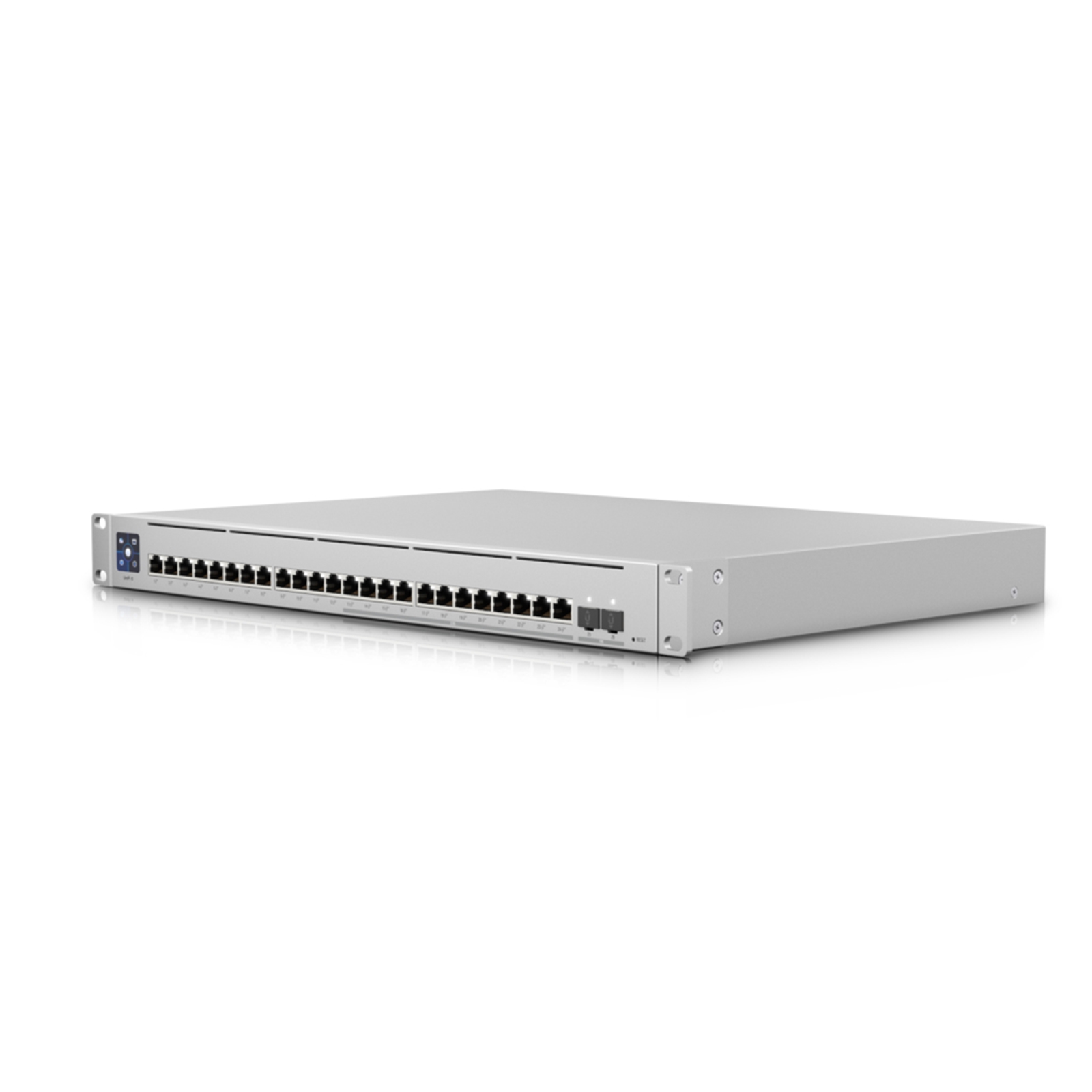

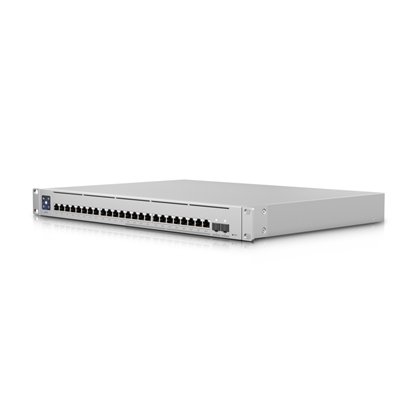

Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks.
Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System (USP-RPS) support for intelligent protection from internal PSU interruption or failure.
The Switch Enterprise 24 PoE (USW Enterprise 24 PoE) is a fully managed, Layer 3 switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. The USW Enterprise 24 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 24 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features
(1) 1.3" LCM color touchscreen with AR switch management
(12) GbE, 802.3at PoE+ RJ45 ports
(12) 2.5GbE, 802.3at PoE+ RJ45 ports
(2) 10G SFP+ ports
(1) USP RPS DC input
400W total PoE supply
Layer 3 switching features
Single-row RJ45 port layout for easy patch panel cable management
Specifications
Dimensions
442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Weight
Without Mount: 5.11 kg (11.27 lb)
With Mount: 5.2 kg (11.46 lb)
Total Non-Blocking Throughput
62 Gbps
Switching Capacity
124 Gbps
Forwarding Rate
92.25 Mpps
Max. Power Consumption
550W
Power Method
(1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
Networking Interfaces
(12) 10/100/1000 Mbps RJ45 Ethernet
(12) 100/1000/2500 Mbps RJ45 Ethernet
SFP+ Interfaces
(2) 1/10G SFP+
PoE Interfaces
(24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE
34.2W
Services
SMB Layer 3 PoE Gigabit Ethernet Switch
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
CERTIFICATION
|
| Certification |
CE, FCC, IC |
DATA TRANSMISSION
|
| Switching capacity |
124 Gbit/s |
| Forwarding rate |
92.25 Mpps |
| Throughput |
62 Gbit/s |
DESIGN
|
| Certification |
CE, FCC, IC |
| Rack mounting |
Yes |
| LED indicators |
Activity, Link, System |
| Product colour |
Silver |
| Housing material |
Galvanized steel |
ENERGY MANAGEMENT
|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| DC input voltage |
11.5 - 52 V |
| Power consumption (max) |
550 W |
| Power supply included |
Yes |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
| Switch layer |
L3 |
| Switch type |
Managed |
NETWORKING
|
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| 10G support |
Yes |
OPERATIONAL CONDITIONS
|
| Storage temperature (T-T) |
10 - 95 °C |
| Operating temperature (T-T) |
-5 - 40 °C |
PACKAGING CONTENT
|
| Rack mount kit |
Yes |
PACKAGING DATA
|
| Rack mount kit |
Yes |
PERFORMANCE
|
| Harmonized System (HS) code |
85176990 |
PORTS & INTERFACES
|
| Installed SFP+ modules quantity |
2 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
POWER OVER ETHERNET (POE)
|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Power over Ethernet (PoE) power per port |
34.2 W |
WEIGHT & DIMENSIONS
|
| Weight |
5.11 kg |
| Height |
43.7 mm |
| Width |
442.4 mm |
| Depth |
325 mm |
