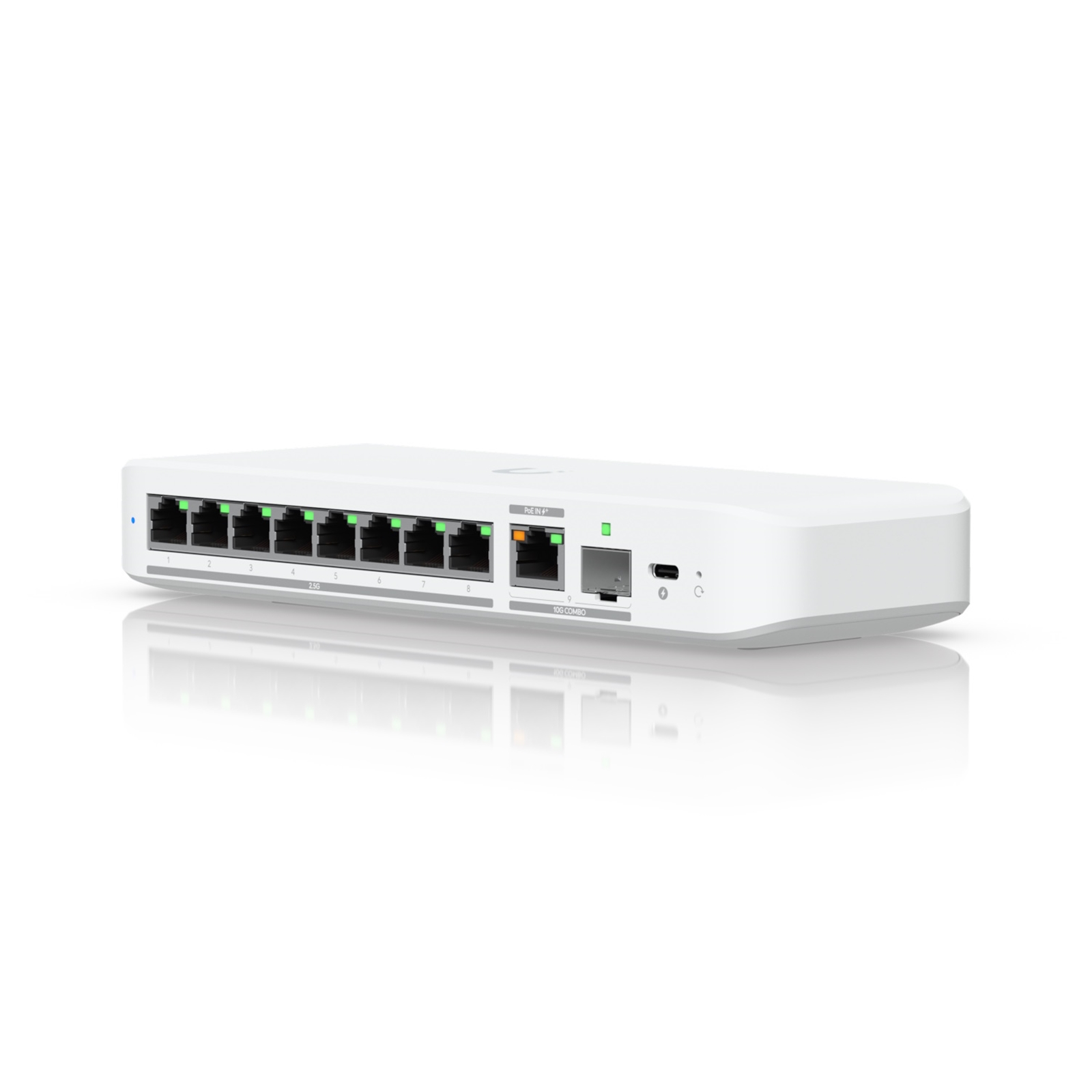

Ubiquiti USW-FLEX-2.5G-8 UniFi Flex 2.5G Ultra Compact 8 Port POE/USB-C Powered Managed Switch

NPUBI-USWF25G8
Key Specifications
Speed2.5 GbE
Ports8
POE CapabilityNo
Managed or UnmanagedManaged
Rack MountableNo
/productImages/80/NPUBI-USWF25G8.JPG
/productImages/80/208375.JPG
/productImages/80/208376.JPG
/productImages/80/208377.JPG
/productImages/80/208378.JPG
Manufacturer : UBIQUITI
EAN : USW-Flex-2.5G-8
Manufacturer Part Code : USW-Flex-2.5G-8
Weight : 0.57 kg
Login For Pricing

Key Specifications
Speed2.5 GbE
Ports8
POE CapabilityNo
Managed or UnmanagedManaged
Rack MountableNo
Manufacturer :
UBIQUITI

EAN :
USW-Flex-2.5G-8

Manufacturer Part Code :
USW-Flex-2.5G-8

Weight :
0.57 kg
Recommended Products

Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.

Dimensions
212.9 x 76 x 33.5 mm
(8.4 x 3 x 1.3")

Port Layout
2.5 GbE RJ45
8

10 GbE RJ45
1

10G SFP+
1

Form Factor
Compact Desktop, wall, DIN, magnetic

Switching Capacity
60 Gbps

Total Non-Blocking Throughput
30 Gbps

Forwarding Rate
45 Mpps

Supported VLANs
256

MAC Address Table Size
4000

STP and RSTP
Yes

Egress Rate Limit
Yes

Flow Control
Yes

Storm Control
Yes

Multicast and Broadcast Rate Limiting
Yes

Port Isolation
Yes

Port Mirroring
Yes

Jumbo Frames
Yes

Loop Protection
Yes

Max. Power Consumption
14W with PoE input
14W with AC adapter input

Power Method
(1) USB Type-C, 5V DC, 3A
(1) PoE+

Power Input Method
USB Input
PoE

Power Supply
AC/DC, external, 15W

Supported Voltage Range
4.8—5.2V DC/USB
44V—57V PoE

Management
Ethernet

Weight
395 g (0.87 lb)

Enclosure Material
Polycarbonate

Mount Material
Polycarbonate

Certifications
CE, FCC, IC
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
DATA TRANSMISSION
MAC address table 4000 entries
Switching capacity 60 Gbit/s
Jumbo frames support Yes
Forwarding rate 45 Mpps
Throughput 30 Gbit/s
DESIGN
Form factor Desktop/Wall-Mounting
LED indicators Activity, Link, PoE, Power, Status
Wall mountable Yes
Product colour White
Housing material Polycarbonate (PC)
DIN rail mounting Yes
ENERGY MANAGEMENT
Power source AC/DC
Input current 3.9 A
DC input voltage 54 V
Power consumption (max) 17 W
Power supply included No
MANAGEMENT FEATURES
Switch layer L2
Switch type Managed
MULTICAST FEATURES
Multicast support Yes
NETWORKING
Flow control support Yes
Port mirroring Yes
Broadcast storm control Yes
Rate limiting Yes
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Number of VLANs 256
VLAN support Yes
10G support Yes
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -20 - 45 °C
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity 8
SFP+ module slots quantity 1
Power connector DC-in jack
2.5G Ethernet (copper) ports quantity 8
10G Ethernet (copper) ports quantity 1
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE) Yes
SECURITY
Loop protection Yes
TECHNICAL DETAILS
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
WEIGHT & DIMENSIONS
Weight 567 g
Height 33.5 mm
Width 212.9 mm
Depth 99.4 mm
