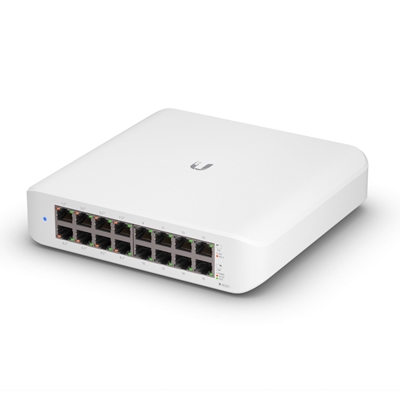

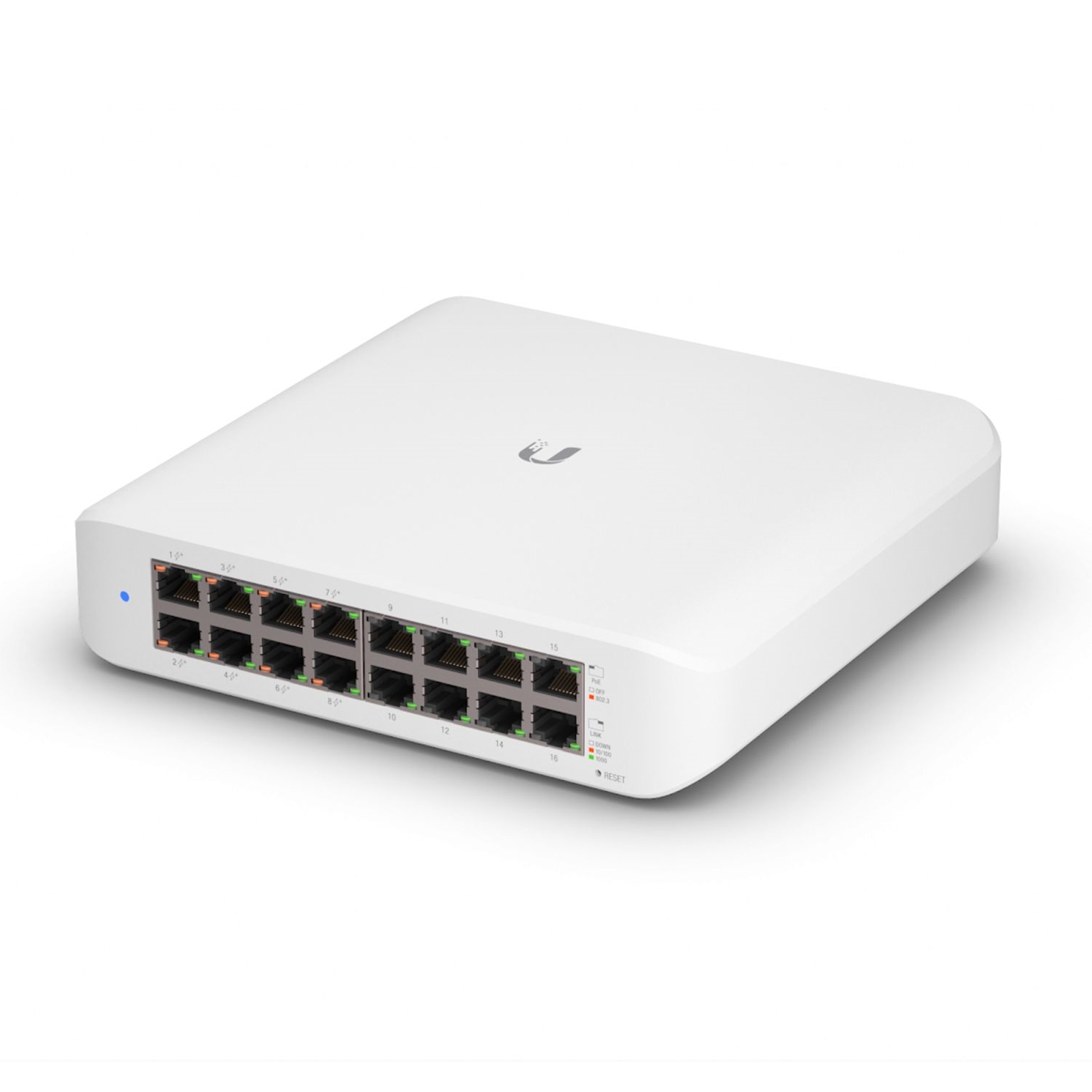

Ubiquiti USW-LITE-16-POE UniFi Switch Lite 16 Port Gigabit Managed Switch with 8 POE+ Ports

NPUBI-USWL16POE
Key Specifications
SpeedGigabit
Ports16
POE Capability48v
Managed or UnmanagedManaged
Rack MountableNo
/productImages/80/NPUBI-USWL16POE.JPG
/productImages/80/160821.JPG
/productImages/80/160822.JPG
/productImages/80/160823.JPG
/productImages/80/160824.JPG
/productImages/80/160825.JPG
Manufacturer : UBIQUITI
EAN : 810010071163
Manufacturer Part Code : USW-LITE-16-POE
Weight : 1.2 kg
Login For Pricing

Key Specifications
SpeedGigabit
Ports16
POE Capability48v
Managed or UnmanagedManaged
Rack MountableNo
Manufacturer :
UBIQUITI

EAN :
810010071163

Manufacturer Part Code :
USW-LITE-16-POE

Weight :
1.2 kg
Recommended Products

The Switch Lite 16 PoE (USW Lite 16 PoE) is a fully managed switch with (16) GbE RJ45 ports, including (8) 802.3at PoE+ ports, and a 45W total PoE supply for your UniFi access points and other PoE devices. The USW Lite 16 PoE also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

(8) GbE, 802.3at PoE+ RJ45 ports
(8) GbE RJ45 ports
45W total PoE supply
Fanless, silent cooling
Wall-mountable (kit included)

Specifications

Dimensions
191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72")

Weight
1.2 kg (2.65 lb)

Total Non-Blocking Line Rate
16 Gbps

Max. Power Consumption
15W

Power Method
Universal AC Input: 100-240VAC

Power Supply
Internal 60W AC/DC Power Supply

Networking Interfaces
(16) 10/100/1000 Mbps Ethernet RJ45

PoE Interfaces
(8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Max PoE+ Wattage per Port by PSE
30W

Modes
SMB Layer 2 PoE Gigabit Ethernet Switch
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
Certification CE, FCC, IC
DATA TRANSMISSION
Switching capacity 16 Gbit/s
DESIGN
Certification CE, FCC, IC
LED indicators Network, PoE, System
Wall mountable Yes
Product colour White
ENERGY MANAGEMENT
Number of power supply units 1
AC input voltage 100 - 240 V
Power consumption (max) 15 W
Power supply included Yes
LOGISTICS DATA
Harmonized System (HS) code 85176990
MANAGEMENT FEATURES
Switch layer L2
NETWORKING
Networking standards IEEE 802.3af, IEEE 802.3at
10G support No
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -15 - 40 °C
PERFORMANCE
Harmonized System (HS) code 85176990
PORTS & INTERFACES
Installed SFP+ modules quantity 0
Installed SFP modules quantity 0
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 16
Power connector AC-in jack
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 8
Power over Ethernet (PoE) power per port 30 W
WEIGHT & DIMENSIONS
Weight 1.2 kg
Height 43.7 mm
Width 191.7 mm
Depth 185 mm
