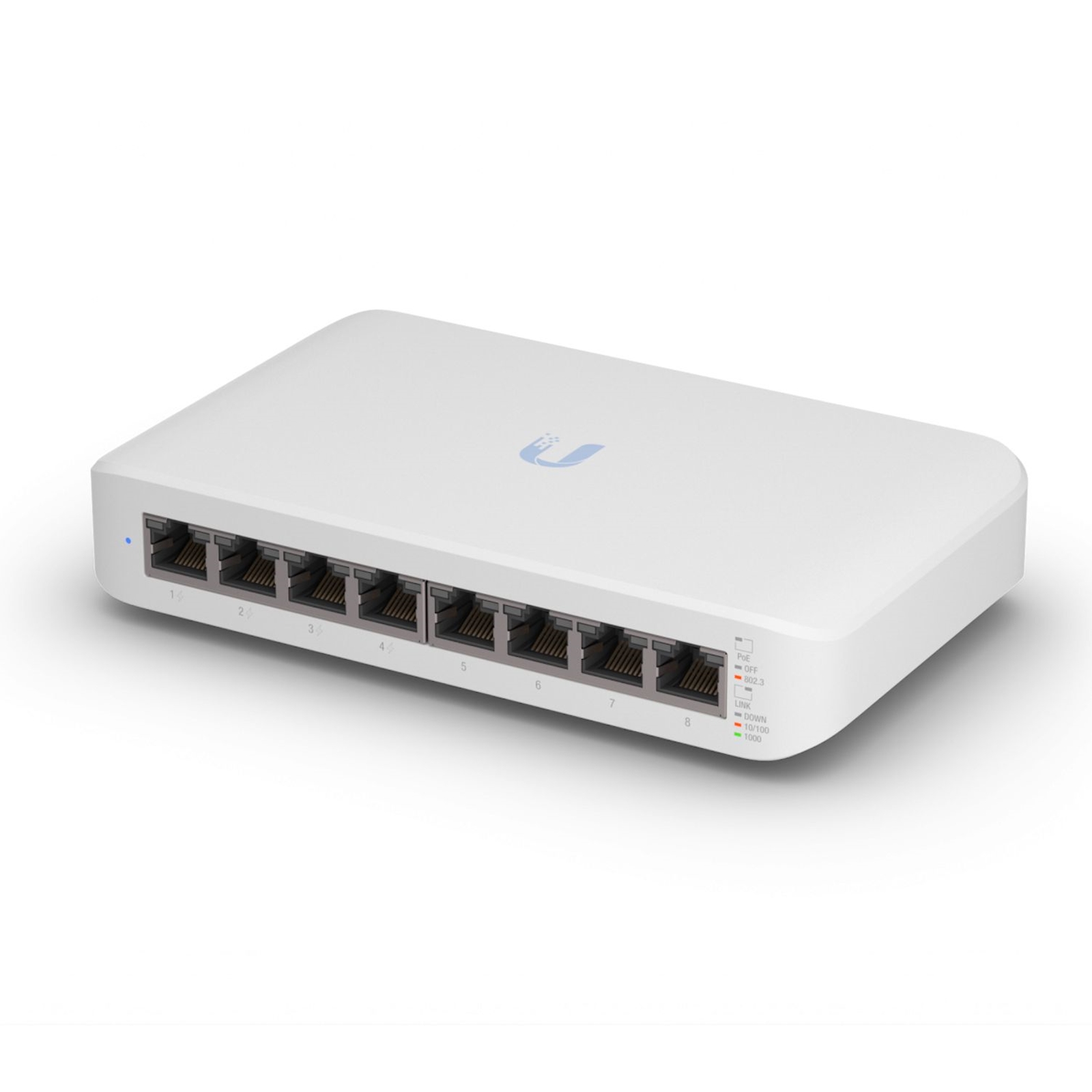

Ubiquiti USW-LITE-8-POE UniFi Switch Lite 8 Port Gigabit Managed Switch with 4 POE+ Ports (EU Plug)

NPUBI-USWL8POE
Key Specifications
SpeedGigabit
Ports8
POE Capability48v
Managed or UnmanagedManaged
Rack MountableNo
/productImages/80/NPUBI-USWL8POE.JPG
/productImages/80/156677.JPG
/productImages/80/156678.JPG
/productImages/80/156679.JPG
/productImages/80/156680.JPG
/productImages/80/156681.JPG
Manufacturer : UBIQUITI
EAN : 810010071156
Manufacturer Part Code : USW-LITE-8-POE-UK
Weight : 0.3 kg
Login For Pricing

Key Specifications
SpeedGigabit
Ports8
POE Capability48v
Managed or UnmanagedManaged
Rack MountableNo
Manufacturer :
UBIQUITI

EAN :
810010071156

Manufacturer Part Code :
USW-LITE-8-POE-UK

Weight :
0.3 kg
Recommended Products

PLEASE NOTE THIS PRODUCT IS ONLY SUPPLIED WITH AN EU PLUG - NO UK PLUG AVAILABLE

Fully managed Layer 2 switch with (8) Gigabit Ethernet ports in a compact form factor.

The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.

Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Features

(8) Gigabit RJ45 ports including (4) 802.3af/at PoE+ ports
Managed with UniFi Application Version: 5.13.10 or later
External 60W power adapter (EU Plug)
Wall-mountable (Kit included)
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
DATA TRANSMISSION
Switching capacity 16 Gbit/s
Throughput 8 Gbit/s
DESIGN
Certification CE, FCC, IC
Rack mounting No
LED indicators LAN, PoE, System
Wall mountable Yes
Product colour White
Reset button Yes
Housing material Plastic
ENERGY MANAGEMENT
Power source DC
Input current 1.1 A
DC input voltage 54 V
Power consumption (max) 8 W
Power supply included Yes
MANAGEMENT FEATURES
Switch layer L2
Switch type Managed
NETWORKING
10G support No
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -15 - 40 °C
PACKAGING DATA
Manual Yes
PERFORMANCE
Fanless Yes
PORTS & INTERFACES
Gigabit Ethernet (copper) ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Power connector DC-in jack
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Total Power over Ethernet (PoE) budget 52 W
Power over Ethernet (PoE) power per port 30 W
WEIGHT & DIMENSIONS
Weight 295 g
Height 31.7 mm
Width 163.7 mm
Depth 99.6 mm
