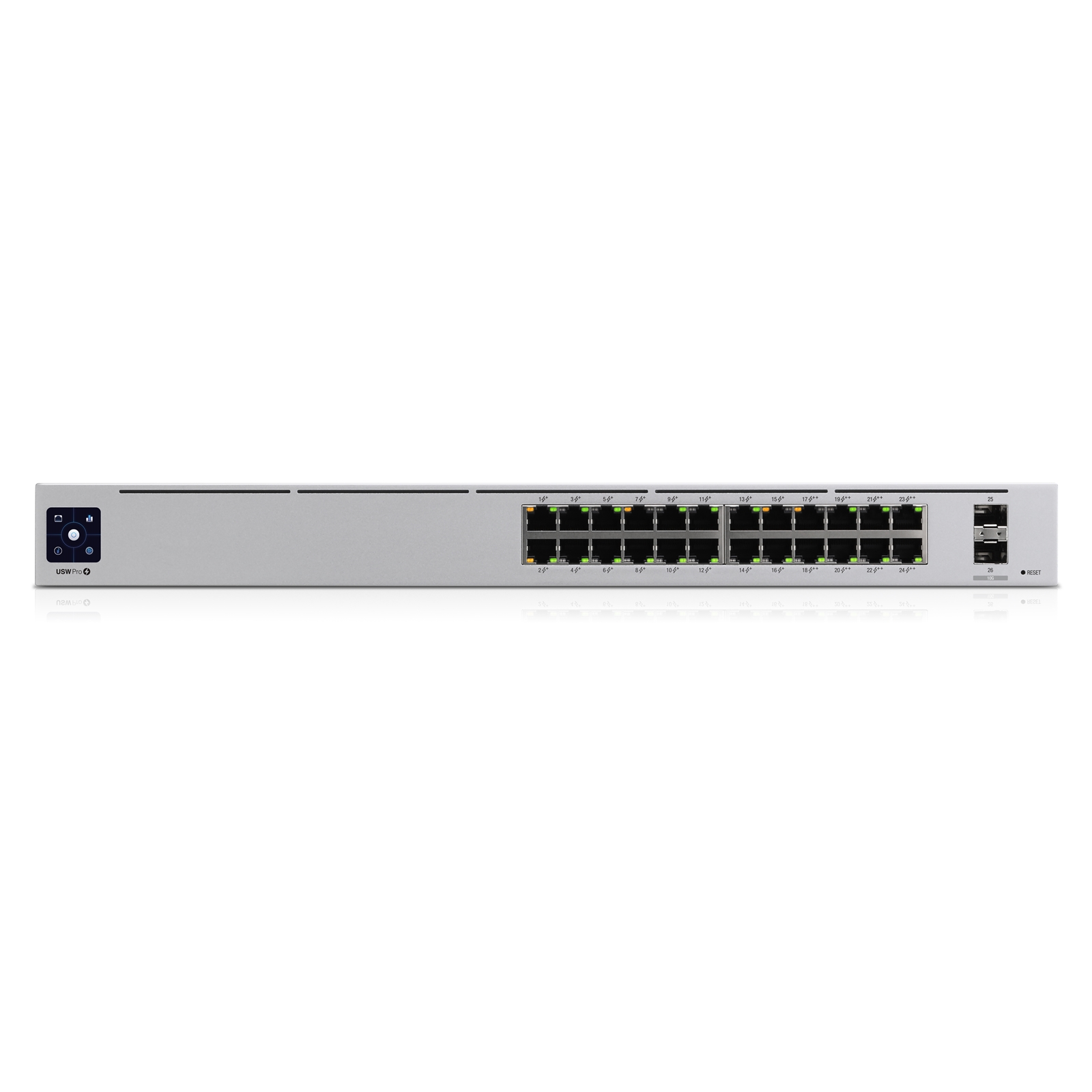

Second-Generation UniFi Switching
We've redesigned our UniFi Switches from the ground up.

Near Silent Cooling
Our new airflow design reduces the need for fan usage.

Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
* Available in a future software release

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Synchronized LCM Displays
Touch one to wake up all the screens and view a rich set of information.
System Information
Errors
Warnings
Port Statistics
PoE Power
Throughput
And a lot more...

Specifications

Power Budget
AC/DC, Internal, 450W

RJ45
(24) 10/100/1000 RJ45 Ports

PoE+
(1-16) IEEE 802.3af/at

PoE++
(17-24) 60W IEEE 802.3bt

SFP+
(2) 1/10G SFP+ Ethernet Ports

LCM
Yes

USP-RPS Power Redundancy
Yes

Dimensions
442.4 x 285.4 x 43.7 mm

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Certification	CE, FCC, IC
DATA TRANSMISSION
MAC address table	16000 entries
Switching capacity	88 Gbit/s
Jumbo frames support	Yes
Forwarding rate	65.472 Mpps
Packet buffer memory	2 MB
Throughput	44000 Mpps
Static route	Yes
DESIGN
Certification	CE, FCC, IC
Rack mounting	Yes
Form factor	1U
LED indicators	Activity, Link, PoE, Speed, System
Product colour	Silver
Reset button	Yes
Display type	LCM
ENERGY MANAGEMENT
Number of power supply units	1
Power source	AC
Redundant power supply (RPS) support	Yes
Input current	7.69 A
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
DC input voltage	52 V
Power consumption (max)	450 W
Power supply included	Yes
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
Switch type	Managed
NETWORKING
Full duplex	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
Flow control support	Yes
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Y
Number of VLANs	1000
Spanning tree protocol	Y
VLAN support	Yes
10G support	Yes
Auto-sensing	Y
IPv4 routes	64
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 40 °C
PERFORMANCE
Harmonized System (HS) code	85176990
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
SFP+ module slots quantity	2
Power connector	AC-in jack
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	400 W
Power over Ethernet (PoE) power per port	64 W
Power over Ethernet 4PPoE (PoE++) ports quantity	8
SECURITY
IGMP snooping	Yes
Authentication type	IEEE 802.1x, RADIUS
DHCP features	DHCP relay, DHCP server, DHCP snooping
WEIGHT & DIMENSIONS
Weight	4.3 kg
Height	43.7 mm
Width	442.4 mm
Depth	285.4 mm
