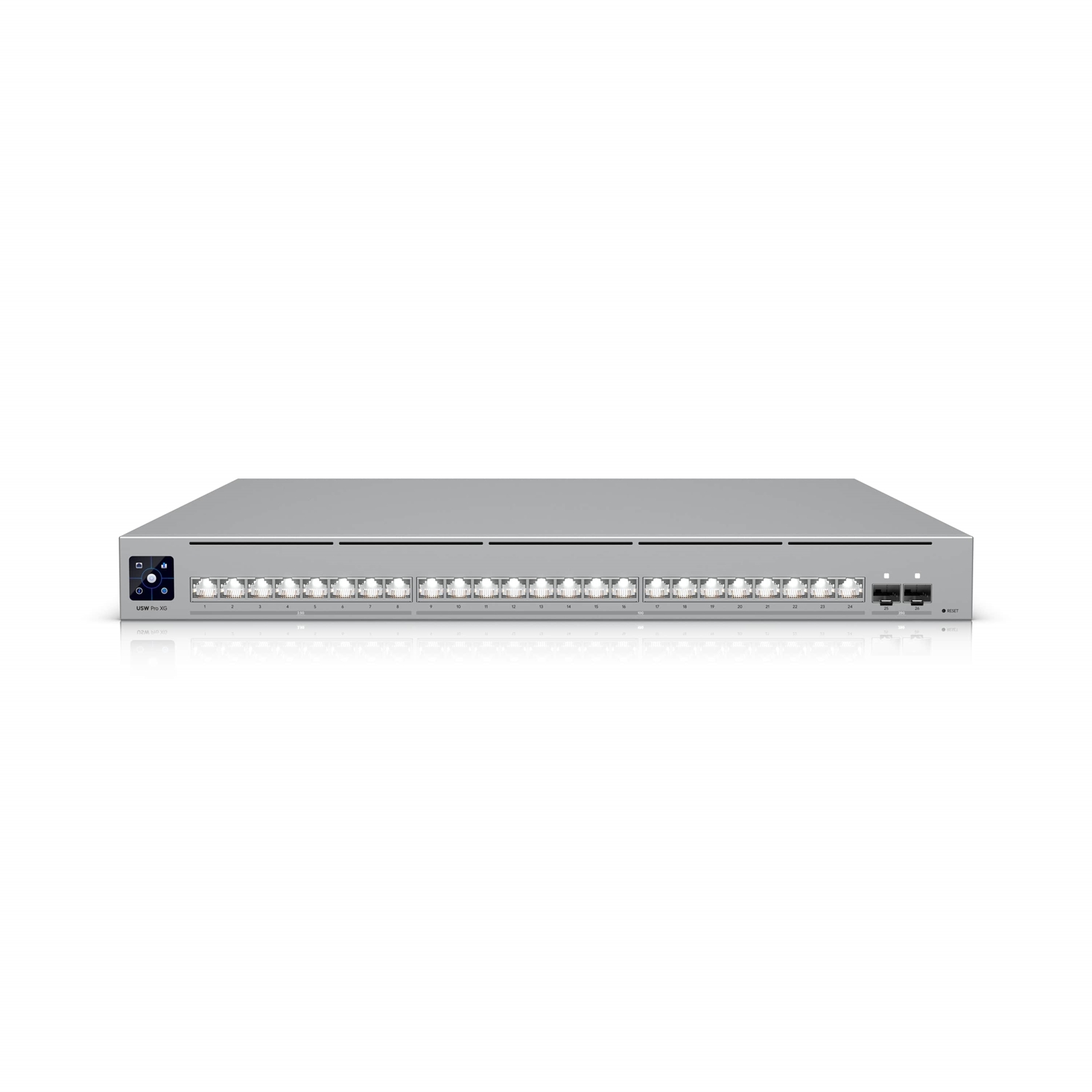

Ubiquiti USW-Pro-XG-24 Professional-grade, 24-port Layer 3 Etherlighting switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.

NPUBI-USWPXG24
Key Specifications
Speed2.5 GbE
Ports24
POE Capability90W
Managed or UnmanagedManaged
Rack MountableOptional - Kit Required
/productImages/80/NPUBI-USWPXG24.JPG
/productImages/80/213049.JPG
/productImages/80/213050.JPG
/productImages/80/213051.JPG
/productImages/80/213052.JPG
/productImages/80/213053.JPG
/productImages/80/213054.JPG
Manufacturer : UBIQUITI
EAN : 0810177160663
Manufacturer Part Code : USW-Pro-XG-24
Weight : 8 kg
Login For Pricing

Key Specifications
Speed2.5 GbE
Ports24
POE Capability90W
Managed or UnmanagedManaged
Rack MountableOptional - Kit Required
Manufacturer :
UBIQUITI

EAN :
0810177160663

Manufacturer Part Code :
USW-Pro-XG-24

Weight :
8 kg
Recommended Products

Ubiquiti Professional-grade, 24-port Layer 3 Etherlighting switch

Specifications

Overview

Dimensions
442 x 480 x 44 mm
(17.4 x 18.9 x 1.7")

Port Layout
2.5 GbE RJ45
8
(2.5G/1G/100M/10M)
10 GbE RJ45

16
(10G/5G/2.5G/1G/100M/10M)
25G SFP28

2
(25G/10G/1G)

Redundancy
DC Power Backup

Layer 3
Yes

Form Factor
Rack mount (1U)

Etherlighting
Yes

Performance

Switching Capacity
460 Gbps

Total Non-Blocking Throughput
230 Gbps

Forwarding Rate
342 Mpps

Supported VLANs
1,000

MAC Address Table Size
128,000

L3 Table Size
ARP Entries
128,000
I
Pv4 Routes
256,000

Packet Buffer Size
8 MB

Access Lists
IPv4
256

MAC
256

Layer 3 Features
DHCP Server (Local Networks)
Yes

DHCP Relay
Yes

Inter-VLAN Routing (Local Networks)
Yes

Static Routing (Local Networks)
Yes

Layer 2 Features
LACP Port Aggregation
Yes

STP & RSTP
Yes

IGMP Snooping
Yes

802.1X Control
Yes

MAC-Based ACLs & Device Isolation
Yes

DHCP Snooping & Guarding
Yes

Egress Rate Limit
Yes

Flow Control
Yes

Storm Control
Yes

Multicast & Broadcast Rate Limiting
Yes

MAC Address Blocking
Yes

IP-Based ACLs & Network Isolation
Yes

MAC-Based Port Restriction
Yes

Port Isolation
Yes

Port Mirroring
Yes

Jumbo Frames
Yes

LLDP-MED
Yes

Voice VLAN
Yes

Loop Protection
Yes

Virtual Network Override
Yes

Hardware

Max. Power Consumption
150W

Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method
AC input

Power Supply
AC/DC, internal, 200W

Supported Voltage Range
100—240V AC

Management
Ethernet
AR

Weight
Without mounting brackets: 7.2 kg (15.9 lb)
With mounting brackets: 7.3 kg (16.1 lb)

Enclosure Material
SGCC steel

Mount Material
SGCC steel

Supported Rack Depth
482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42?)

LCM Display
1.3" touchscreen

ESD Protection
Air: ± 30kV, contact: ± 20kV

Ambient Operating Temperature
-5 to 40C (23 to 104F)

Ambient Operating Humidity
10 to 90% noncondensing

Etherlighting
Ethernet
Yes

SFP28
Yes

LEDs
RPS
yes

NDAA Compliant
Yes

Certifications
CE, FCC, IC, Anatel: 06464-25-08356

Software

Application Requirements

UniFi Network
Version 9.0.114 and later
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
DATA TRANSMISSION
MAC address table 128000 entries
Switching capacity 460 Gbit/s
Jumbo frames support Yes
Forwarding rate 342 Mpps
Packet buffer memory 8 MB
Static route Yes
Throughput 230 Gbit/s
DESIGN
Rack mounting Yes
Form factor 1U
Backlight display Yes
Product colour Grey
Stackable Yes
Reset button Yes
Housing material SGCC
Display type LCM
ENERGY MANAGEMENT
Power source AC/DC
Redundant power supply (RPS) support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power consumption (max) 150 W
Power supply included Yes
MANAGEMENT FEATURES
Switch layer L2/L3
Quality of Service (QoS) support Yes
Switch type Managed
MULTICAST FEATURES
Multicast support Yes
NETWORKING
Flow control support Yes
Port mirroring Yes
Broadcast storm control Yes
Rate limiting Yes
Number of VLANs 1000
VLAN support Yes
10G support Yes
Virtual LAN features Interface-based VLAN, Voice VLAN
IPv4 routes 256000
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -5 - 40 °C
PACKAGING CONTENT
Cables included Power
Rack mount kit Yes
PACKAGING DATA
Cables included Power
Rack mount kit Yes
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity 24
Power connector AC/DC
SFP28 ports quantity 2
2.5G Ethernet (copper) ports quantity 8
10G Ethernet (copper) ports quantity 16
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE) No
SECURITY
IGMP snooping Yes
Loop protection Yes
Access Control List (ACL) IPv4 entries 256
DHCP features DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
TECHNICAL DETAILS
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
WEIGHT & DIMENSIONS
Weight 7.2 kg
Height 44 mm
Width 442 mm
Depth 480 mm
