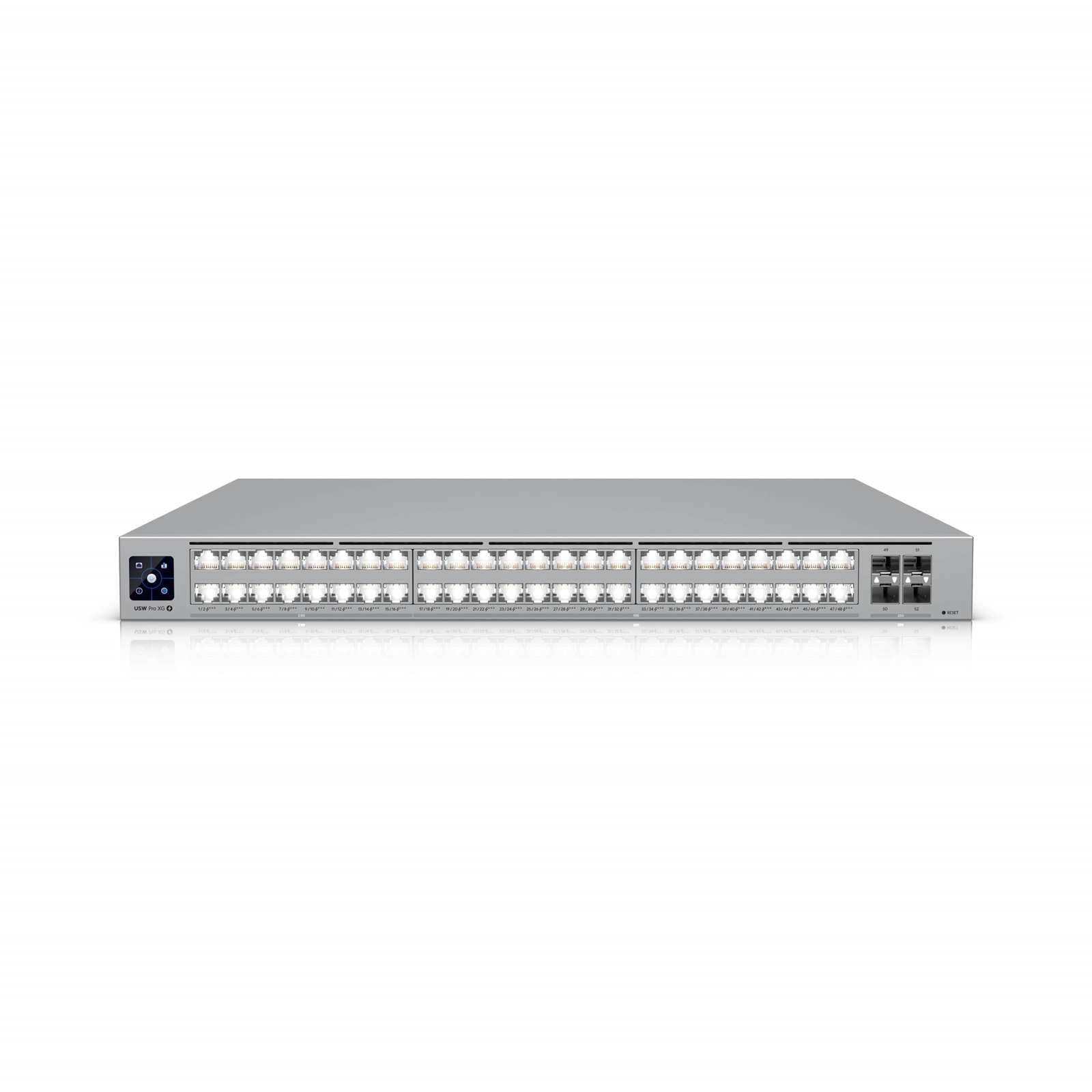

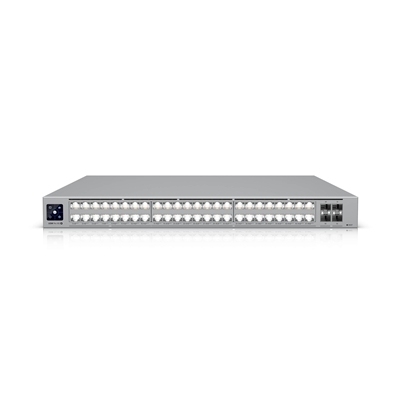

Professional-grade, 48-port Layer 3 Etherlighting PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.

Specifications

Overview

Dimensions
442 x 480 x 44 mm
(17.4 x 18.9 x 1.7")

Port Layout
2.5 GbE RJ45
16 (All PoE+++)
(2.5G/1G/100M/10M)
10 GbE RJ45
32 (All PoE+++)
(10G/5G/2.5G/1G/100M/10M)
25G SFP28
4
(25G/10G/1G)

Max. PoE Output
Up to PoE+++

Total PoE Availability
200-240V AC: 1080W
100-120V AC: 972W

Redundancy
DC Power Backup

Layer 3
Yes

Form Factor
Rack mount (1U)

Etherlighting
yes

Performance

Switching Capacity
920 Gbps

Total Non-Blocking Throughput
460 Gbps

Forwarding Rate
684 Mpps

Supported VLANs
1,000

MAC Address Table Size
128,000

L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000

Packet Buffer Size
8 MB

Access Lists
IPv4
256
MAC
256

Layer 3 Features

DHCP Server (Local Networks)
Yes

DHCP Relay
Yes

Inter-VLAN Routing (Local Networks)
Yes

Static Routing (Local Networks)
Yes

Layer 2 Features

LACP Port Aggregation
Yes

STP & RSTP
Yes

QoS (DSCP)
Yes

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes

IGMP Snooping
Yes

802.1X Control
Yes

MAC-Based ACLs & Device Isolation
Yes

DHCP Snooping & Guarding
Yes

Egress Rate Limit
Yes

Flow Control
Yes

Storm Control
Yes

Multicast & Broadcast Rate Limiting
Yes

MAC Address Blocking
Yes

IP-Based ACLs & Network Isolation
Yes

MAC-Based Port Restriction
Yes

Port Isolation
Yes

Port Mirroring
Yes

Jumbo Frames
Yes

LLDP-MED
Yes

Voice VLAN
Yes

Loop Protection
Yes

Virtual Network Override
Yes

Hardware

PoE Ports
PoE+++
48

Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W

Max. Power Consumption
200W (Excluding PoE Output)
200-240V: 1,280W /
100-120V AC: 1,172W (Including PoE Output)

Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method
AC input

Power Supply
AC/DC, internal, 1,350W

Supported Voltage Range
100—240V AC

Management
Ethernet
AR

Weight
Without mounting brackets: 8.7 kg (15.4 lb)
With mounting brackets: 8.8 kg (15.7 lb)

Enclosure Material
SGCC steel
Mount Material
SGCC steel

Supported Rack Depth
482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42?)

LCM Display
1.3" touchscreen

ESD Protection
Air: ± 30kV, contact: ± 20kV

Ambient Operating Temperature
-5 to 40° C (23 to 104° F)

Ambient Operating Humidity
10 to 90% noncondensing

Etherlighting
Ethernet
Yes
SFP28
Yes

LEDs
RPS
Yes

NDAA Compliant
Yes

Certifications
CE, FCC, IC, Anatel: 04322-25-08356

Software

Application Requirements
UniFi Network
Version 9.1.120 and later

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
DATA TRANSMISSION
MAC address table	128000 entries
Switching capacity	920 Gbit/s
Jumbo frames support	Yes
Forwarding rate	684 Mpps
Packet buffer memory	8 MB
Static route	Yes
Throughput	460 Gbit/s
DESIGN
Rack mounting	Yes
Form factor	1U
Backlight display	Yes
Product colour	Grey
Stackable	Yes
Reset button	Yes
Housing material	SGCC
Display type	LCM
ENERGY MANAGEMENT
Power source	AC/DC
Redundant power supply (RPS) support	Yes
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	1280 W
Power supply included	Yes
MANAGEMENT FEATURES
Switch layer	L3
Quality of Service (QoS) support	Yes
Switch type	Managed
MULTICAST FEATURES
Multicast support	Yes
NETWORKING
Flow control support	Yes
Port mirroring	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Number of VLANs	1000
VLAN support	Yes
10G support	Yes
Virtual LAN features	Interface-based VLAN, Voice VLAN
IPv4 routes	256000
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 40 °C
PACKAGING CONTENT
Cables included	Power
Rack mount kit	Yes
PACKAGING DATA
Cables included	Power
Rack mount kit	Yes
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity	48
Power connector	AC/DC
SFP28 ports quantity	4
2.5G Ethernet (copper) ports quantity	16
10G Ethernet (copper) ports quantity	32
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	1080 W
Power over Ethernet (PoE) power per port	15.4 W
Power over Ethernet (PoE) type supported	PoE+++
SECURITY
IGMP snooping	Yes
Loop protection	Yes
Access Control List (ACL) IPv4 entries	256
DHCP features	DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
TECHNICAL DETAILS
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
WEIGHT & DIMENSIONS
Weight	8.7 kg
Height	44 mm
Width	442 mm
Depth	480 mm
