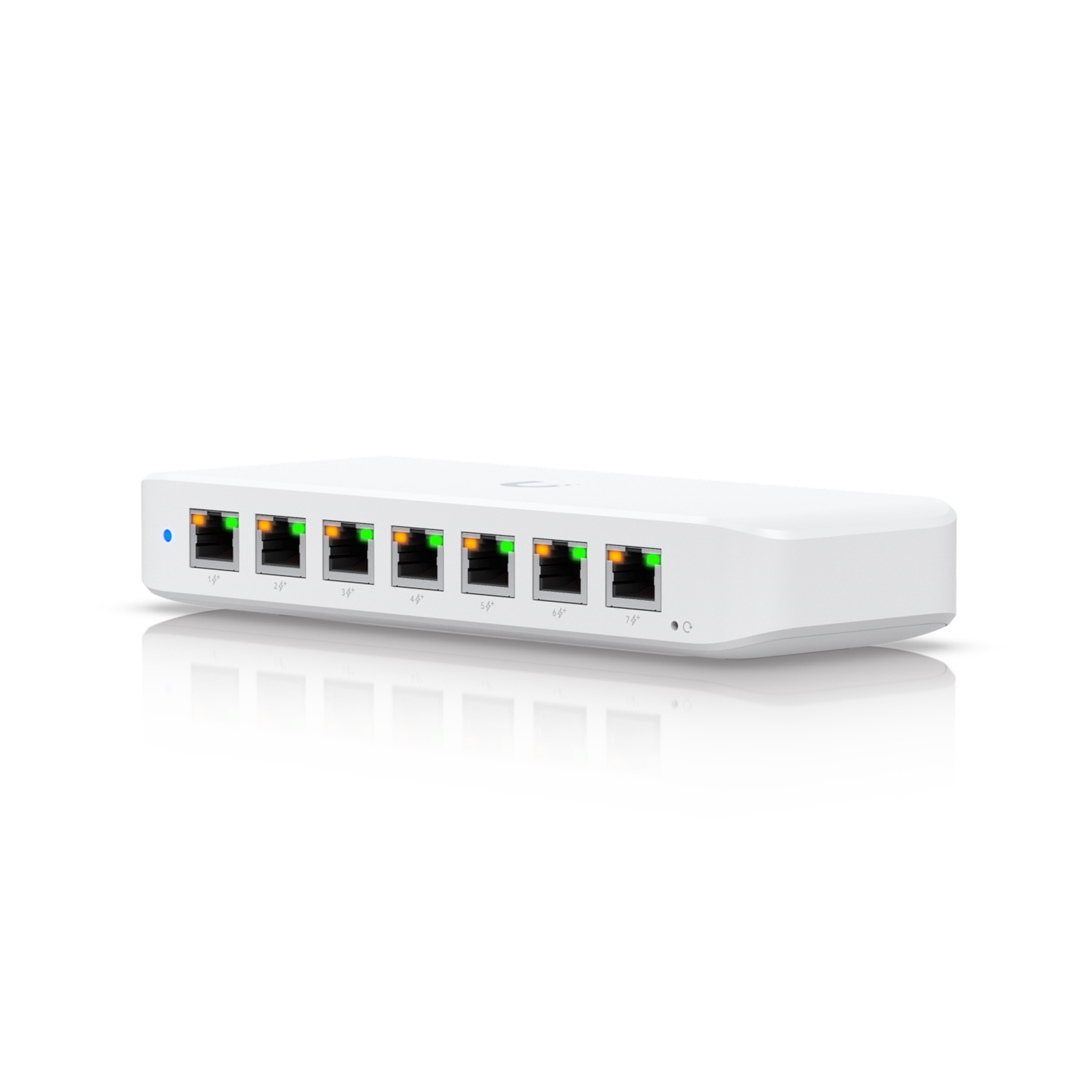

Ubiquiti USW-ULTRA UniFi Switch Ultra POE++ Powered 8 Port Gigabit POE Managed Network Switch (No PSU)

Key Specifications
SpeedGigabit
Ports8
POE Capability48v
Managed or UnmanagedManaged
Rack MountableNo
/productImages/80/NPUBI-USWULTRA.JPG
/productImages/80/200505.JPG
/productImages/80/200506.JPG
/productImages/80/200507.JPG
/productImages/80/200508.JPG
/productImages/80/200509.JPG
/productImages/80/200510.JPG
Manufacturer : UBIQUITI
EAN : 0810084693698
Manufacturer Part Code : USW-ULTRA
Weight : 0.32 kg
Login For Pricing

Key Specifications
SpeedGigabit
Ports8
POE Capability48v
Managed or UnmanagedManaged
Rack MountableNo
Manufacturer :
UBIQUITI

EAN :
0810084693698

Manufacturer Part Code :
USW-ULTRA

Weight :
0.32 kg
Recommended Products

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

(7) GbE PoE+ output ports
(1) GbE PoE++ input port
— 42W PoE availability with PoE++ input
— 16W PoE availability with PoE+ input

Dimensions
203 x 76 x 33 mm (8 x 3 x 1.3")

Weight
Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)

Enclosure Material
Polycarbonate

Management Interface
Ethernet In-Band

Networking Interface
(8) GbE RJ45 ports

POE Interface
(7) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total Non-Blocking Throughput
8 Gbps

Switching Capacity
16 Gbps

Forwarding Rate
11.904 Mpps

Power Method
(1) 54V, 3.9A power adapter (Not included)
(1) 54V, 1.1A power adapter (Not included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)

Supported Voltage Range
44—57V DC

Max Power Consumption
9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output)

Total Available POE
PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W

Max PoE+ Wattage per Port by PSE
30W

Button
Factory Reset

Ambient Operating Temperature
PoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)

Ambient Operating Humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

Layer 2 Features
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
Certification CE, FCC, IC
DATA TRANSMISSION
Switching capacity 16 Gbit/s
Throughput 8 Gbit/s
DESIGN
Certification CE, FCC, IC
Rack mounting No
LED indicators Activity, Link, PoE, Status
Wall mountable Yes
Product colour White
Reset button Yes
Housing material Polycarbonate (PC)
ENERGY MANAGEMENT
Power source DC/PoE
Input current 1.1 A
DC input voltage 44 - 57 V
Power consumption (max) 9 W
Power supply included No
MANAGEMENT FEATURES
Switch layer L2
Switch type Managed
NETWORKING
10G support No
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -30 - 60 °C
PACKAGING CONTENT
Manual Yes
PACKAGING DATA
Manual Yes
PORTS & INTERFACES
Installed SFP+ modules quantity 0
Installed SFP modules quantity 0
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Power connector DC-in jack
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 7
Total Power over Ethernet (PoE) budget 42 W
WEIGHT & DIMENSIONS
Weight 320 g
Height 33 mm
Width 203 mm
Depth 76 mm
