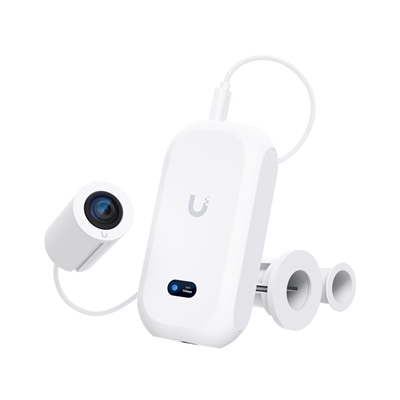

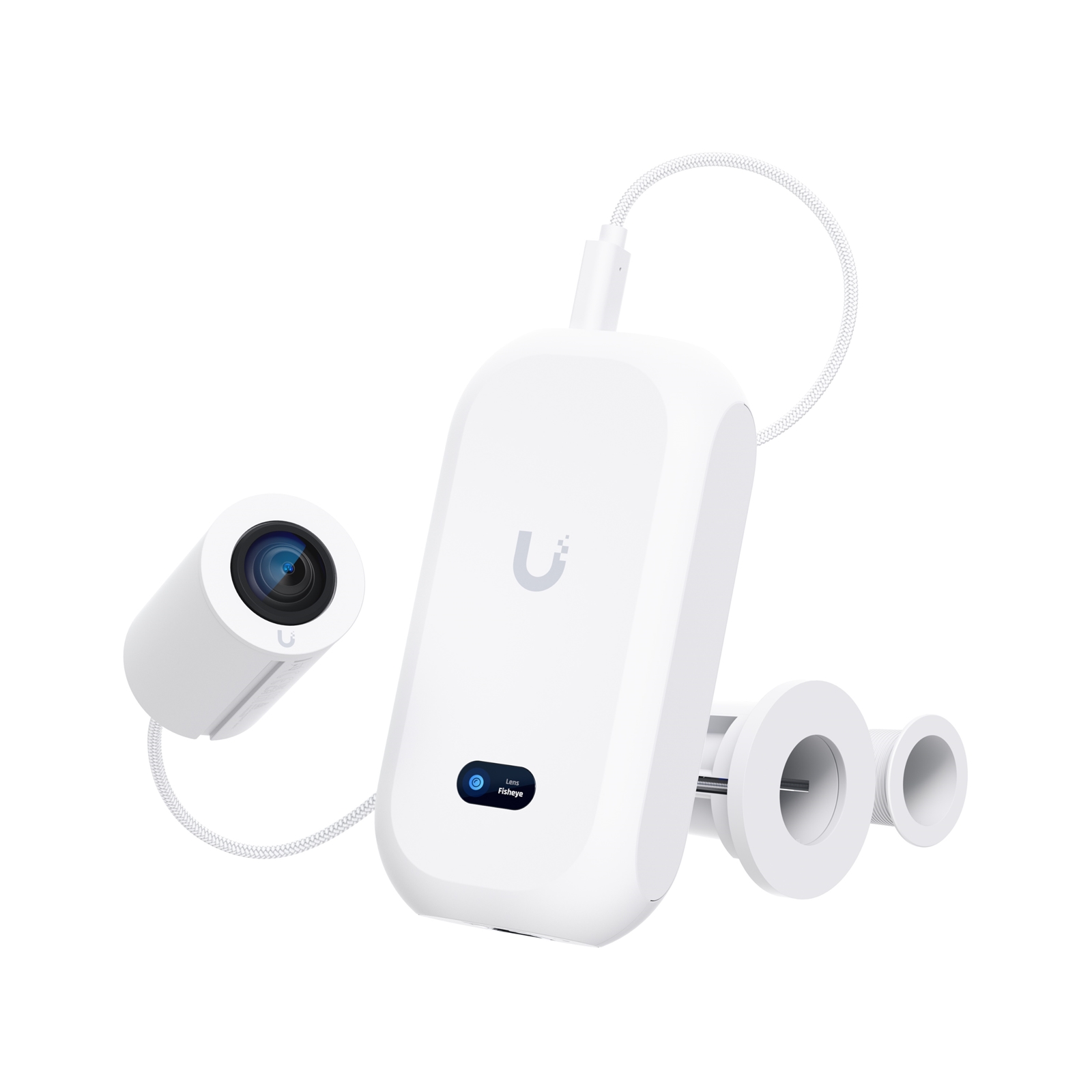

A complete ceiling 360 degree AI Theta system designed to discreetly provide a panoramic view of large, busy spaces.

Dimensions
UVC-AI-Theta-Hub: 170 x 70 x 38mm
UVC-AI-Theta-ProLens360: 36.6mm diameter, 58.9mm long

Weight
UVC-AI-Theta-Hub: 330 g (11.6 oz)
UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
UVC-AI-Theta-ProLens360: 58 g (2 oz)
UVC-AI-Theta-ProLens360 Flush Mount: 24 g (0.8 oz)

Enclosure Material
UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-ProLens360: aluminum alloy, polycarbonate

Mount Material
UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-ProLens360 Flush Mount: polycarbonate

Cable Jacket Enclosure Dimensions
28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")

Cable Jacket Enclosure Material
PVC

Cable Length
1m

Cable Diameter
3.7mm

Cable Jacket Material
Woven Fabric

Cable Weight
18g

Cable Connector Type
Theta Proprietary

Sensor
8MP 1/1.8" CMOS

Lens
Fixed Focal Length

Viewing Angle
H: 180°, V: 180°, D: 180°

Resolution
4MP 2160 x 2160 (1:1)

Max. Frame Rate
24 FPS

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

Power Supply
5V DC, 0.5A

Processor
Quad-core Arm Cortex-A53 based chip

Networking Interface
GbE RJ45 port

Max. Power Consumption
12.5W

Power Method
PoE

Supported Voltage Range
37—57V DC

Output Power
5V DC, 1A per port

Display
0.96" color display

Button
Factory Reset

Mounting
Wall/Ceiling Mount

Certifications
FCC, IC, CE

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CAMERA
Lens viewing angle, horizontal	180°
Lens viewing angle, vertical	180°
Lens viewing angle, diagonal	180°
DESIGN
Product colour	White
Mounting type	Ceiling/wall
ENERGY MANAGEMENT
DC output voltage	37, 48, 54, 57
Power source type	PoE
Power consumption (max)	12.5 W
IMAGE SENSOR
Sensor type	CMOS
Optical sensor size	25.4 / 1.8 mm (1 / 1.8")
LENS SYSTEM
Number of lenses	1
MANAGEMENT FEATURES
Reset button	Yes
NETWORKING
Ethernet LAN	Yes
Bluetooth	No
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
NIGHT VISION
Night vision	No
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-20 - 40 °C
PACKAGING CONTENT
Manual	Yes
Mounting kit	Yes
Number of cameras	1
Packaging content	AI Theta Hub
PERFORMANCE
Type	IP security camera
Processor model	ARM Cortex-A53
Certification	FCC, IC, CE
Connectivity technology	Wired
Placement supported	Indoor
Built-in processor	Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
STORAGE
Built-in HDD	No
VIDEO
Maximum resolution	2160 x 2160 pixels
Video compression formats	H.264
Noise reduction	Yes
Frame rate	24 fps
Total megapixels	4 MP
Image quality adjustment	Brightness, Contrast, Sharpness
Noise reduction technology	2D noise reduction, 3D noise reduction
WEIGHT & DIMENSIONS
Weight	58 g
Cable length	1 m
Height	58.9 mm
Diameter	3.66 cm
