Ubiquiti Network Video Recorder Instant Kit

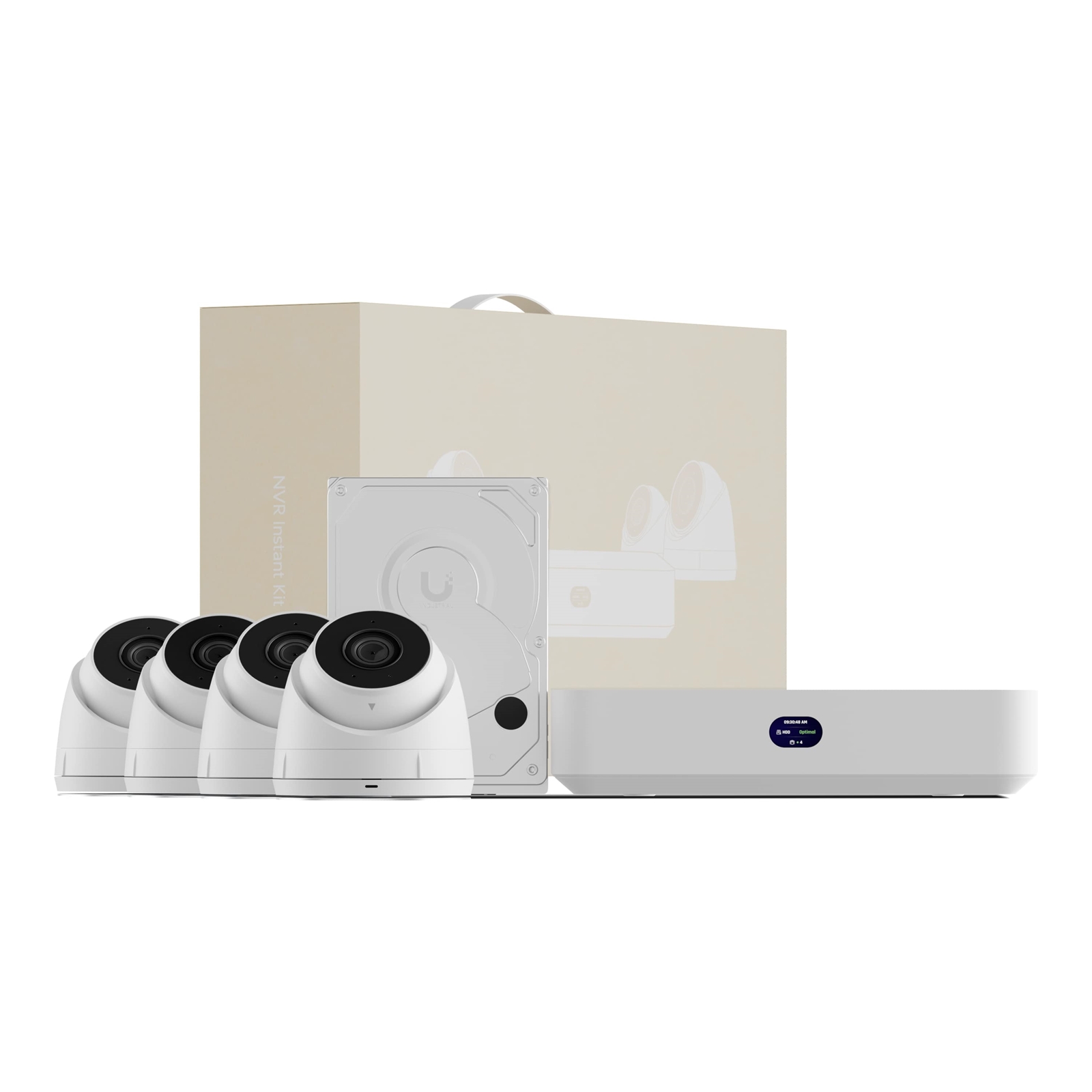

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
Network Video Recorder Instant
Dimensions
220 x 220 x 47 mm
(8.7 x 8.7 x 1.9")
UniFi Application Suite
Protect - Yes
Access - Yes
Managed Cameras
(15) HD
(8) 2K
(6) 4K
Storage Capacity
(1) 3.5" drive bay
Data Protection
Yes
Vantage Point
Yes
Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)
Form Factor
Compact Desktop
Mounting
Wall, Din rail mount (Included)
Door Access Support
Yes
Hard Drive Capacity
(1) 3.5" HDD support
Max. Power Budget for Drives
11W
Max. Power Consumption
9W
Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 60W
PoE Budget
40W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44–57V
Processor
Quad-core ARM Cortex-A55 at 1.7 GHz
Memory
4 GB
Management
Ethernet
Bluetooth
Display
1.14" screen
Weight
1.04 kg (2.3 lb)
Enclosure Materials
Polycarbonate
Mount Material
Polycarbonate
LEDs
Ethernet - Yes
PoE - Yes
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC, IC, CE, Electrical Safety, UL
G5 Turret Ultra
Dimensions
90 x 71.2 mm
(3.5 x 2.8")
IR Night Vision
30 m (98 ft)
Smart Detections (People, Vehicles, Animals)
Yes
Resolution
2K
Field of View
H: 102.4°, V: 54.9°, D: 120.6°
Audio/b>
Microphone
Weatherproofing
IP66
Tamper Resistance
IK04
Mounting
Wall, ceiling mount (Included)
Junction box, arm mount (Optional)
Networking Interface
10/100 MbE RJ45 port
Video
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate
30 FPS
Resolution
4MP 2688 x 1512 (16:9)
Optics
Sensor
1/2.4" CMOS
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter
Max. Power Consumption
4W
Supported Voltage Range
37—57V DC
Power Method
PoE
Processor
Dual-core Arm Cortex-A7 based chip
Weight
330 g (11.6 oz)
Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate
Mount Material
Polycarbonate
Button
(1) Factory-reset
Cable
Cable Connector Type
RJ45
Cable Diameter
5 mm (0.2")
Cable Length
30 cm (1 ft)
Jacket Material
Polycarbonate
Jacket Enclosure Dimensions
20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material
Thermoplastic elastomer, polycarbonate, silicone rubber
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
0 to 90% noncondensing
NDAA Compliant
?
Certifications
CE, FCC, IC
HDD
Dimensions
147 x 101.6 x 26.1 mm (5.75 x 4 x 1")
Hard Disk Form Factor
3.5-inch
Weight
0.45 kg (0.99 lb)
Storage Capacity
1 TB
Power Method
5V/12V input
Management Interface
SATA 6 Gb/s
Rotation Speed
5400 RPM
Workload Rating
180 TB/year
Mean Time Between Failure (MTBF)
1,000,000 h
Ambient Operating Temperature
0 to 65° C (32 to 149° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC, CE, UL, TUV, RCM, KC, BSMI
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
CAMERA
|
| Viewing angle, horizontal |
102.4° |
| Viewing angle, vertical |
54.9° |
| Colour |
Yes |
| Megapixel (approx.) |
4 MP |
| Built-in microphone |
Yes |
| Camera resolution |
2688 x 1512 pixels |
| Sensor type |
CMOS |
| Optical sensor size |
25.4 / 2.4 mm (1 / 2.4") |
| Connectivity technology |
Wired |
| LED type |
IR |
| Camera included |
Yes |
| Night mode |
Yes |
| Placement supported |
Indoor/outdoor |
| Housing material |
Polycarbonate (PC) |
| International Protection (IP) code |
IP66 |
| Night vision distance |
30 m |
| Surveillance camera form factor |
Turret |
| Day/night mode |
Yes |
| Number of cameras |
4 |
| Camera interface |
RJ-45 |
| Weatherproof |
Yes |
| Viewing angle, diagonal |
120.6° |
| Infrared (IR) cut-off filter |
Yes |
DISPLAY
|
| Display diagonal |
2.9 cm (1.14") |
| Placement |
Desk, Wall |
| Display type |
LCM |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85219000 |
NETWORKING
|
| Ethernet LAN |
Yes |
OPERATIONAL CONDITIONS
|
| Camera operating temperature (T-T) |
-30 - 50 °C |
| Camera operating relative humidity (H-H) |
0 - 90% |
| Recorder operating temperature (T-T) |
0 - 40 °C |
| Recorder operating relative humidity (H-H) |
5 - 95% |
PACKAGING CONTENT
|
| Cables included |
Power |
POWER
|
| Power over Ethernet (PoE) |
Yes |
| Power source type |
AC |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (max) |
9 W |
RECORDER
|
| HDD capacity |
1 TB |
| HDD interface |
SATA |
| LED indicators |
LAN, PoE |
| HDD size |
3.5" |
| Ethernet LAN (RJ-45) ports |
7 |
| Total storage capacity |
1 TB |
| Number of HDDs installed |
1 |
| Card reader integrated |
No |
| HDMI ports quantity |
1 |
| Storage media type |
HDD |
| Recorder included |
Yes |
| Power over Ethernet (PoE) ports quantity |
6 |
| Total Power over Ethernet (PoE) budget |
40 W |
| Power over Ethernet (PoE) power per port |
15.4 W |
TECHNICAL DETAILS
|
| Product colour |
White |
| Reset button |
Yes |
| Compliance certificates |
BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, National Defense Authorization Act (NDAA), RCM, TÜV mark, UL |
WEIGHT & DIMENSIONS
|
| Height |
47 mm |
| Width |
220 mm |
| Depth |
220 mm |
