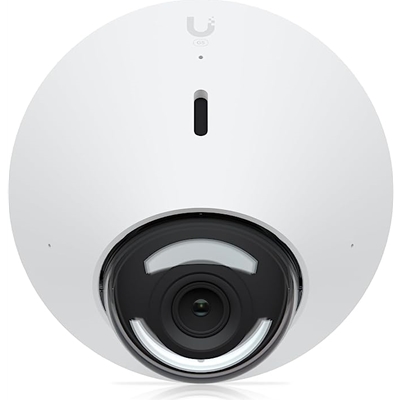

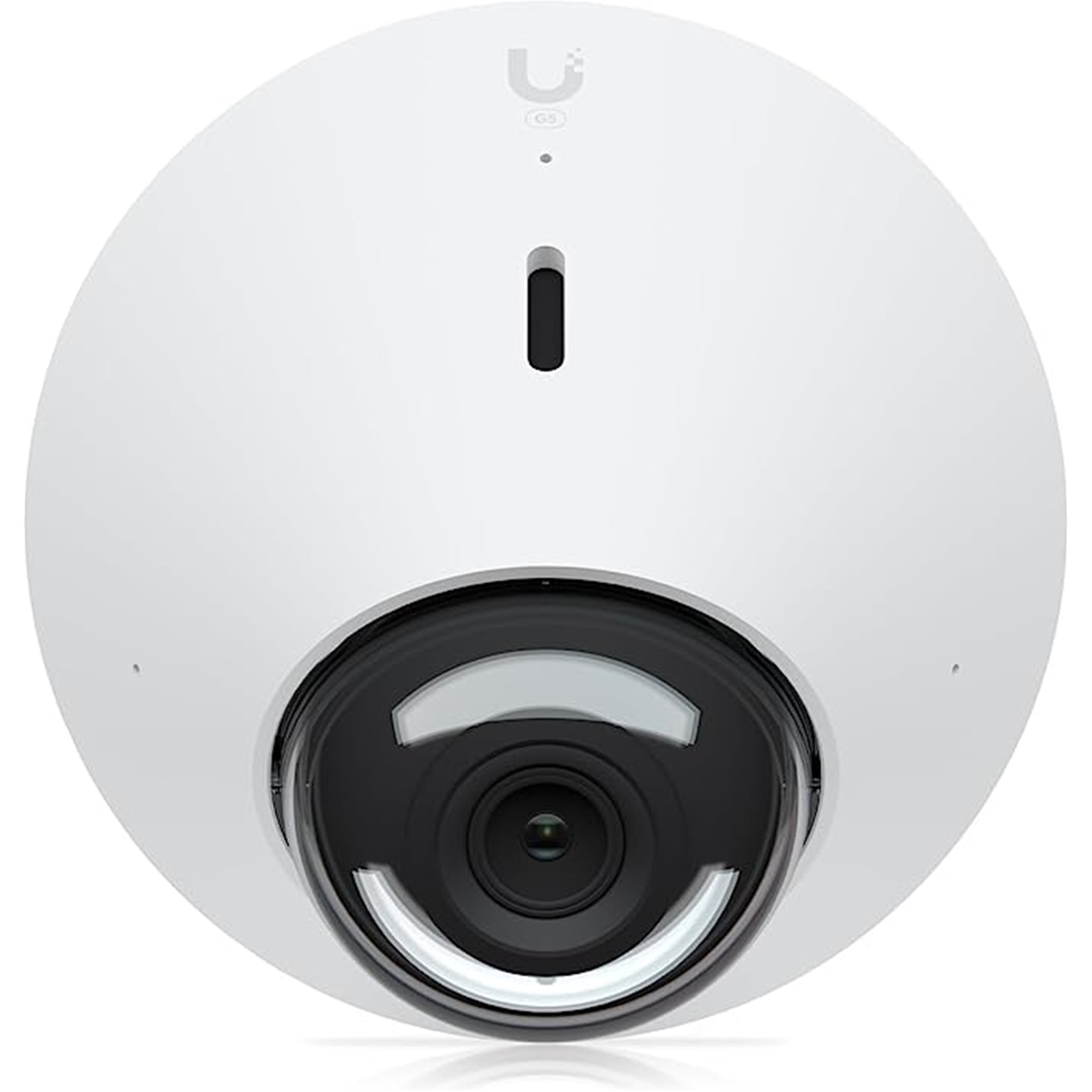

Ubiquiti UniFi Protect 2K 5MP Outdoor Camera G5 Dome CCTV - UVC-G5-DOME
Introducing the Ubiquiti UniFi UVC-G5-DOME camera, with its 5MP CMOS sensor, users can expect to experience crystal clear 2K video @ 30fps.
The UVC-G5-DOME is fully weather-proof, no matter how harsh the environment. The camera housing is IPX4-rated and IK08-rated for protection from vandalism.
The UniFi Protect G5 Dome is also ideal for low-light conditions, and has IR night vision suitable up to 10m viewable area.
Key Features
2K HD, 30 FPS camera with a 5MP CMOS sensor.
Wide-angle view (102.4°)
Weatherproof IPX4-rated enclosure with IK08-rated vandal resistance.
Improved low-light performance and IR night vision up to 10m.
Improved dynamic range
Works with the UniFi Protect Application
Plug-and-play installation
Designed for scalability
Intuitive user interface
Powerful mobile app
Subscription-free
Specifications
Mechanical
Dimensions
Ø109.2 x 64.5 mm (Ø4.3 x 2.5")
Weight
390 g (13.76 oz)
Enclosure materials
Aluminum alloy, polycarbonate, hard-coated dome
Mount materials
Polycarbonate, stainless steel
Weatherproofing
IPX4
Resistance
IK08
Optics
Sensor
5MP CMOS sensor
Lens
Fixed focal length
View angle
H: 102.4°, V: 71.4°, D: 134.3°
Night mode
Built-in IR LED illumination and IR cut lter
Video
Video compression
H.264, MJPEG
Resolution
2688 x 1512 (16:9)
Max frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
specs Dual-core Arm Cortex -A7 based chip
Networking interface
10/100 MbE RJ45
Max power consumption
5W
Power method
PoE
Supported voltage range
37–57 VDC
LED
R/G/B/W
Button Factory
reset
Mounting
Wall, ceiling mount
Operating temperature
-20 to 40º C (-4 to 104º F)
Operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled in software)
Speaker
Yes
Software
UniFi OS application
UniFi Protect
Mobile app
UniFi Protect iOS and Android
Box contents
1 x UVC-G5-DOME
1 x Tightening Tool
1 x Pole Mount Bracket
1 x Wall Mount Kit (Screws Included)
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
