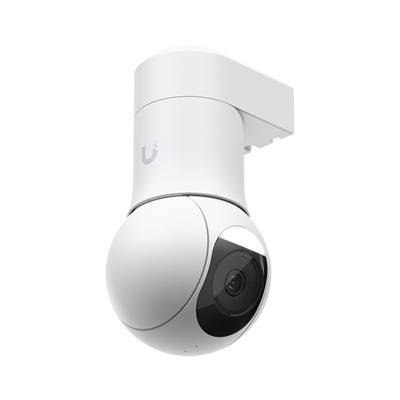

Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.

Specifications

Dimensions
Without mount: d90 x 152.5 mm
(d3.5 x 6")

With mount: 90 x 94 x 179.5 mm
(3.5 x 3.7 x 7")

IR Night Vision
20 m (65 ft)

Optical Zoom
2K

Smart Detections (People, Vehicles, Animals)
Yes

Resolution
2K

Field of View
Wide: H: 99.7d, V: 51.9d, D: 121d
Tele: H: 45.5d, V: 25.4d, D: 52.4d

Audio
Microphone

Weatherproofing
IP66

Tamper Resistance
IK04

Mounting
Wall mount, pole mount (Included)
Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional)

UniFi Application Suite
Protect

Networking Interface
10/100 MbE RJ45 Port

Video
Max Frame Rate: 30 FPS
Resolution: 4MP 2688 x 1512 (16:9)

Optics
Sensor: 5MP 1/2.7" CMOS
Lens: F 3.42–6.85 mm; ?/1.85–?/2.4
Night Mode: Built-in IR & white LED illumination with IR cut filter

Hardware

Max. Power Consumption
14W

Supported Voltage Range
37 - 57V DC

Power Method
PoE+

Pole Mount Diameter
1.5–2" (38–50 mm)

Weight
Without mount: 580 g (1.3 lb)
With mount: 650 g (1.4 lb)

Enclosure Material
Aluminum alloy, polycarbonate

Mount Material
Wall mount: polycarbonate
Pole mount: aluminum alloy

Button
(1) Factory-reset

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

AUDIO
Built-in microphone	Yes
CAMERA
Lens viewing angle, horizontal	99.7°
Lens viewing angle, vertical	51.9°
Lens viewing angle, diagonal	121°
DESIGN
Form factor	Dome
Product colour	White
Mounting type	Wall/Pole
International Protection (IP) code	IP66
IK code	IK04
Weatherproof	Yes
ENERGY MANAGEMENT
DC output voltage	37, 57
Power source type	DC, PoE
IMAGE SENSOR
Sensor type	CMOS
Optical sensor size	50.8 / 7 mm (2 / 7")
Number of sensors	1
LENS SYSTEM
Focal length range	3.42–6.85
Minimum aperture number	1.85
Maximum aperture number	2.4
NETWORKING
Ethernet LAN	Yes
Bluetooth	No
Wi-Fi	No
Ethernet interface type	Fast Ethernet
NIGHT VISION
LED type	IR
Night vision	Yes
Night vision distance	20 m
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-30 - 45 °C
PACKAGING CONTENT
Mounting kit	Yes
Number of cameras	1
PERFORMANCE
Type	IP security camera
Connectivity technology	Wired
Placement supported	Indoor & outdoor
PTZ control	Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
STORAGE
Built-in HDD	No
VIDEO
Maximum resolution	2688 x 1512 pixels
Total megapixels	4 MP
WEIGHT & DIMENSIONS
Weight	580 g
Height	90 mm
Diameter	15.2 cm
