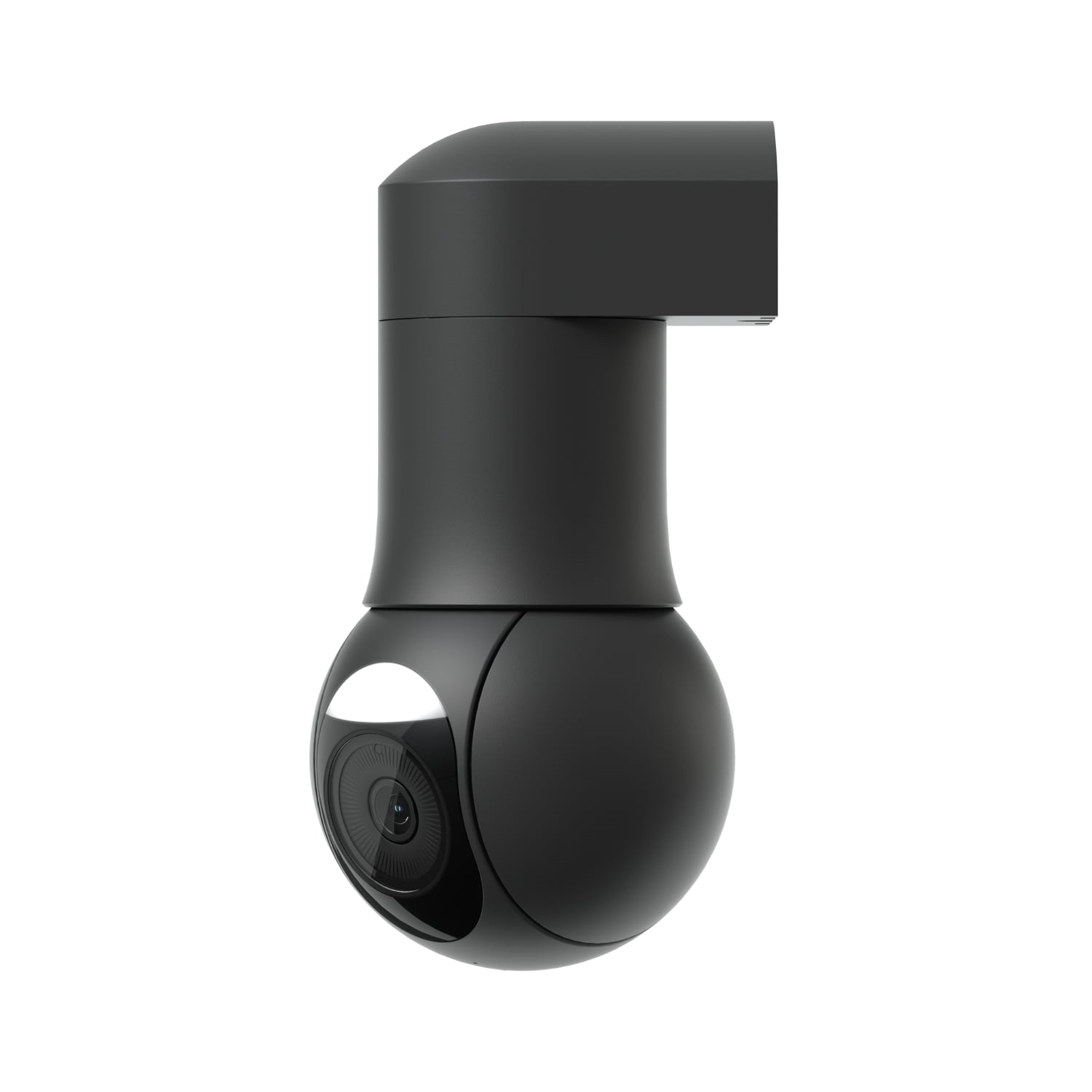

Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.
Specifications
Dimensions
Without mount: d90 x 152.5 mm
(d3.5 x 6")
With mount: 90 x 94 x 179.5 mm
(3.5 x 3.7 x 7")
IR Night Vision
20 m (65 ft)
Optical Zoom
2K
Smart Detections (People, Vehicles, Animals)
Yes
Resolution
2K
Field of View
Wide: H: 99.7d, V: 51.9d, D: 121d
Tele: H: 45.5d, V: 25.4d, D: 52.4d
Audio
Microphone
Weatherproofing
IP66
Tamper Resistance
IK04
Mounting
Wall mount, pole mount (Included)
Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional)
UniFi Application Suite
Protect
Networking Interface
10/100 MbE RJ45 Port
Video
Max Frame Rate: 30 FPS
Resolution: 4MP 2688 x 1512 (16:9)
Optics
Sensor: 5MP 1/2.7" CMOS
Lens: F 3.42–6.85 mm; ?/1.85–?/2.4
Night Mode: Built-in IR & white LED illumination with IR cut filter
Hardware
Max. Power Consumption
14W
Supported Voltage Range
37 - 57V DC
Power Method
PoE+
Pole Mount Diameter
1.5–2" (38–50 mm)
Weight
Without mount: 580 g (1.3 lb)
With mount: 650 g (1.4 lb)
Enclosure Material
Aluminum alloy, polycarbonate
Mount Material
Wall mount: polycarbonate
Pole mount: aluminum alloy
Button
(1) Factory-reset
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
