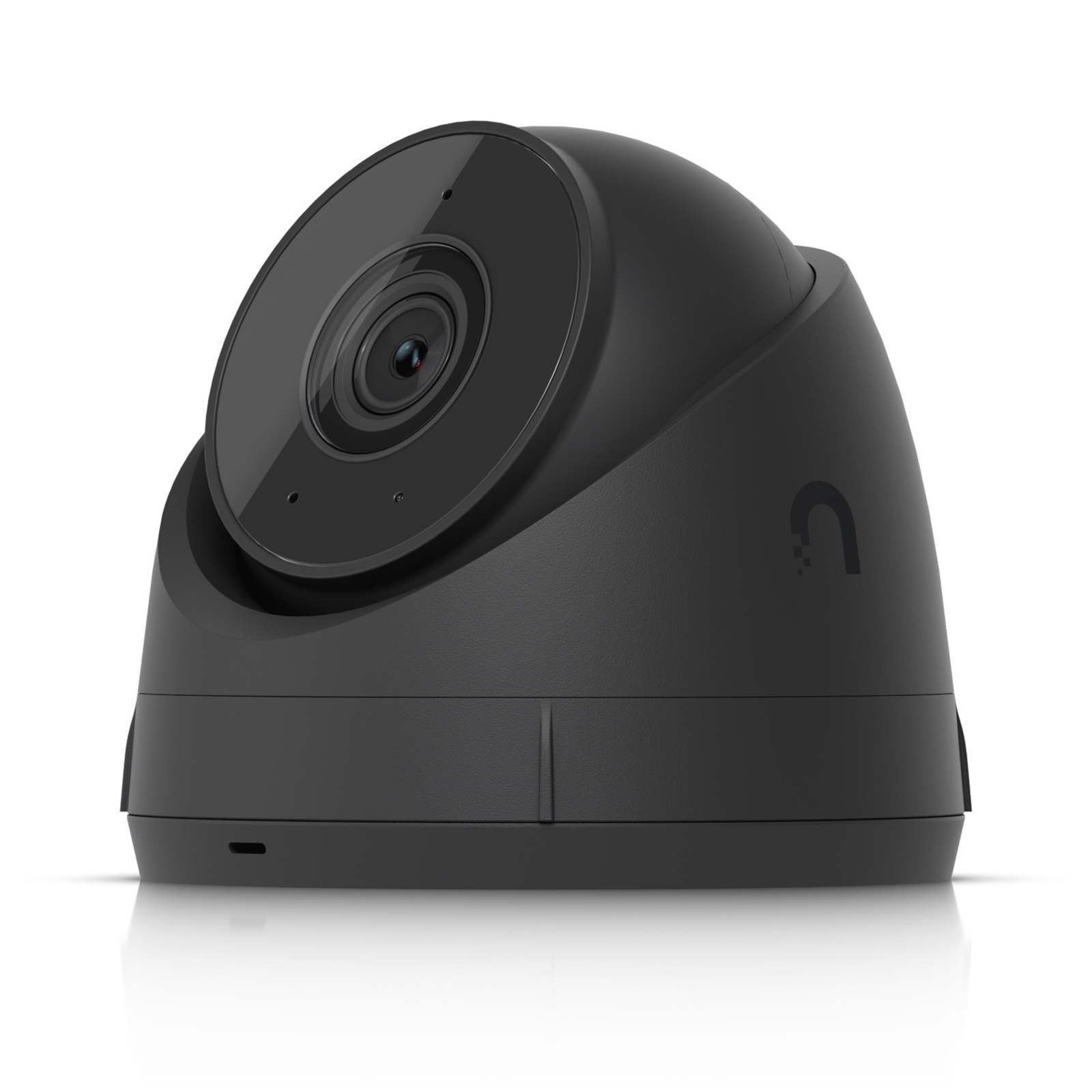

Ubiquiti UVC-G5-TURRET-ULTRA-B UniFi Protect G5 Turret Ultra HD PoE Black Turret IP Camera w/ 30m Night Vision (4 MP)

Key Specifications
Camera Resolution4MP
Camera TypeTurret
POE Capability48v
Pack SizeSingle
/productImages/80/NPUBI-UVCG5TURUB.JPG
/productImages/80/208351.JPG
/productImages/80/208352.JPG
/productImages/80/208353.JPG
/productImages/80/208354.JPG
/productImages/80/208355.JPG
/productImages/80/208356.JPG
Manufacturer : UBIQUITI
EAN : UVC-G5-Turret-Ultra-
Manufacturer Part Code : UVC-G5-Turret-Ultra-B
Weight : 0.33 kg
Login For Pricing

Key Specifications
Camera Resolution4MP
Camera TypeTurret
POE Capability48v
Pack SizeSingle
Manufacturer :
UBIQUITI

EAN :
UVC-G5-Turret-Ultra-

Manufacturer Part Code :
UVC-G5-Turret-Ultra-B

Weight :
0.33 kg
Recommended Products

Ultra-compact, tamper-resistant, and weatherproof 2K HD PoE camera with long-range night vision.

2K (4MP) video resolution
Ultra-wide viewing angle (102.4deg)
30 m (98 ft) IR night vision
AI event detections
Record audio with an integrated microphone
Connect and power using PoE
Weatherproof (outdoor exposed)

Dimensions
90 x 71.2 mm (3.5 x 2.8")

Weight
330 g (11.6 oz)

Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate

Weatherproofing
IP66

Resistance
IK04

Cable Jacket Enclosure Dimensions
20 x 70.6 mm (0.8 x 2.8")

Cable Jacket Enclosure Materials
Thermoplastic elastomer, polycarbonate, silicone rubber

Cable Length
30 cm (1 ft)

Cable Diameter
5mm

Cable Jacket Material
Polycarbonate

Cable Connector Type
RJ45

Optics
1/2.4" CMOS

Lens
Fixed focal length

Viewing Angle
H: 102.4deg, V: 54.9deg, D: 120.6deg

Night Mode
Built-in IR LED illumination and IR cut filter

Resolution
4MP 2688 x 1512 (16:9)

Max Frame Rate
30 FPS

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

Processor
Dual-core Arm Cortex-A7 based chip

Networking Interface
10/100 MbE RJ45 port

Max Power Consumption
4W

Power Method
PoE

Supported Voltage Range
37–57V DC

LED
R/G/B/W

Button
Factory reset

Mounting
Surface mount

Microphone
Yes (Can be disabled)

Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
AUDIO
Built-in microphone Yes
CAMERA
Lens viewing angle, horizontal 102.4°
Lens viewing angle, vertical 54.9°
Lens viewing angle, diagonal 120.6°
DESIGN
Form factor Turret
Product colour Black
Housing material Aluminium, Polycarbonate (PC)
Mounting type Ceiling/wall
International Protection (IP) code IP66
Protection features Tamper resistant, UV resistant
IK code IK04
Weatherproof Yes
ENERGY MANAGEMENT
Power consumption (typical) 4 W
Power source type PoE
AC input voltage 37 - 57 V
IMAGE SENSOR
Sensor type CMOS
Optical sensor size 25.4 / 2.4 mm (1 / 2.4")
Number of sensors 1
LENS SYSTEM
Number of lenses 1
MANAGEMENT FEATURES
Reset button Yes
NETWORKING
Ethernet LAN Yes
Bluetooth No
Wi-Fi No
Ethernet interface type Fast Ethernet
NIGHT VISION
LED type IR
Night vision Yes
Night vision distance 30 m
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 0 - 90%
Operating temperature (T-T) -30 - 50 °C
PACKAGING CONTENT
Cables included LAN (RJ-45)
Mounting kit Yes
Number of cameras 1
Screws included Yes
PERFORMANCE
Type IP security camera
Processor model ARM Cortex-A7
Connectivity technology Wired
Placement supported Indoor & outdoor
Built-in processor Yes
Day/night mode Yes
Infrared (IR) cut-off filter Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 1
STORAGE
Built-in HDD No
SUSTAINABILITY
Sustainability compliance Yes
Compliance certificates CE, Federal Communications Commission (FCC)
TECHNICAL DETAILS
Sustainability compliance Yes
Compliance certificates CE, Federal Communications Commission (FCC)
VIDEO
Maximum resolution 2688 x 1512 pixels
Noise reduction Yes
Frame rate 30 fps
Video formats supported H.264
Total megapixels 4 MP
Image quality adjustment Brightness, Colour depth, Contrast, DNR, Sharpness
Privacy masking Yes
Text caption overlay Yes
Noise reduction technology 2D noise reduction, 3D noise reduction
WEIGHT & DIMENSIONS
Weight 330 g
Cable length 0.3 m
Height 71.2 mm
Diameter 9 cm
