Target Components Ltd

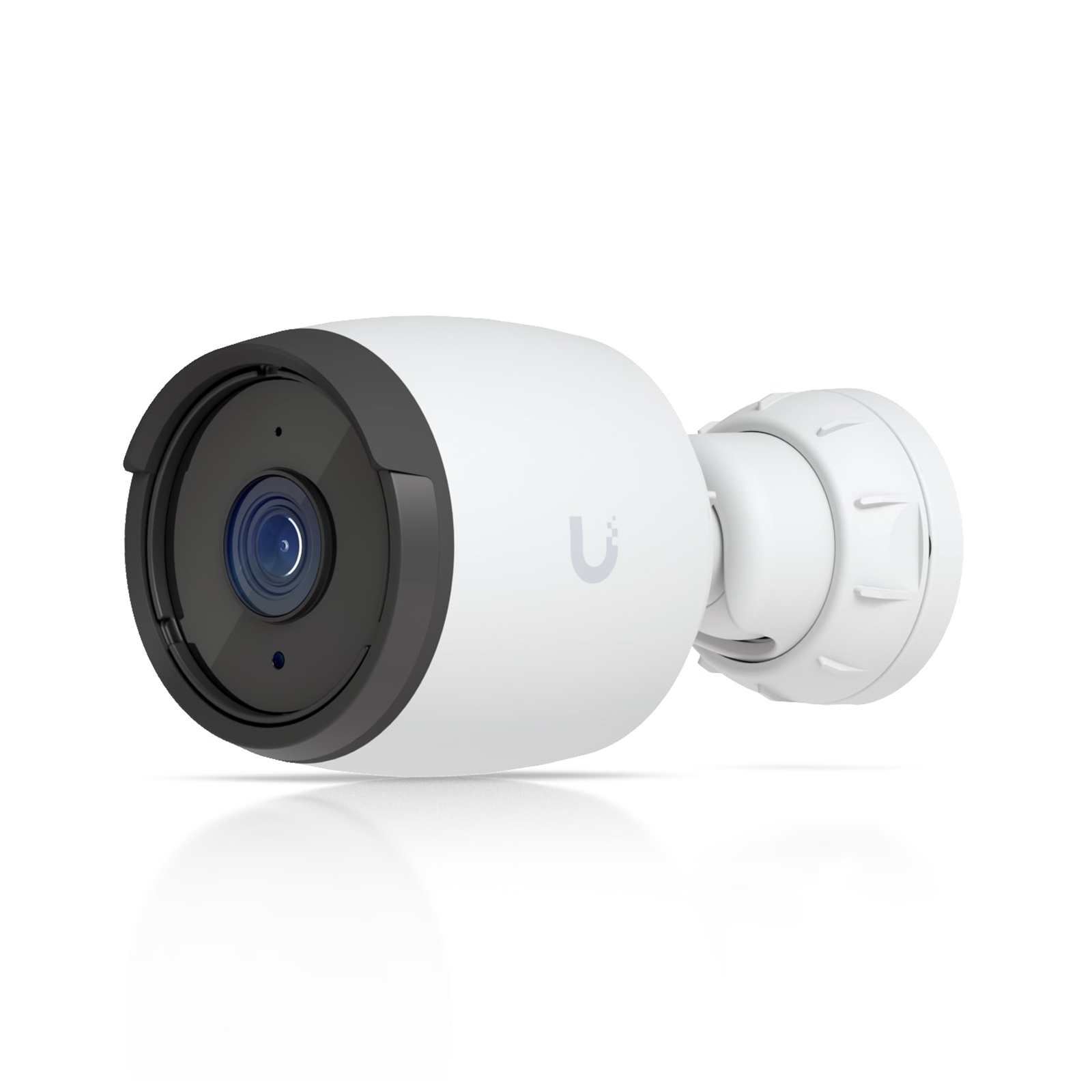

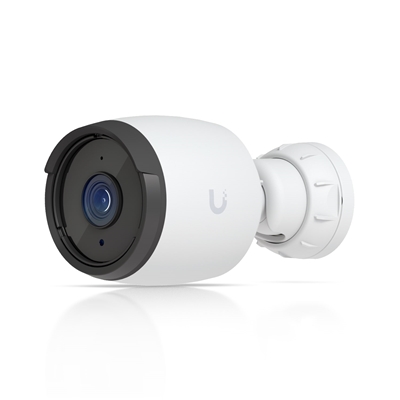

All-weather 4K PoE camera with a 1/1.8inch 8MP image sensor, Multi-TOPs AI Engine, and long-range IR night vision

Overview

Dimensions

Without mount
82 x 88.8 mm
(3.2 x 3.5inch)

With mount
82 x 153 mm
(3.2 x 6inch)

IR Night Vision
30 m (98 ft)

Face Recognition
Yes

License Plate Recognition
Yes

Smart Detections (People, Vehicles, Animals)
Yes

Resolution
4K

Field of View
H: 109.9°, V: 56.7°, D: 134.1°

Audio
Microphone

Weatherproofing
IP66

Tamper Resistance
IK04

Mounting
Wall, ceiling, pole mount (Included)
Junction box, angled base (Optional)
UniFi Application Suite
Protect Yes

Performance

Networking Interface
10/100 MbE RJ45 port

Video

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR

Max. Frame Rate
30 FPS

Resolution
8MP 3840 x 2160 (16:9)

Optics

Sensor
1/1.8inch 8MP

Lens
Fixed focal length

Night Mode
Built-in IR LED illumination and IR cut filter

Hardware

Max. Power Consumption
9.9W

Supported Voltage Range
37–57V DC

Power Method
PoE

Processor
Quad-core Arm Cortex -A53 based chip

Pole Mount Diameter
1.5–2inch (38–50 mm)

Weight
Without mount: 587 g (1.3 lb)
With mount: 737 g (1.6 lb)

Enclosure Material
Polycarbonate, aluminum alloy

Mount Material
Wall mount: aluminum alloy, polycarbonate
Pole mount: aluminum alloy

Button
(1) Factory-reset

Ambient Operating Temperature
-20 to 50° C (-4 to 122° F)

Ambient Operating Humidity
0 to 90% noncondensing

NDAA Compliant
Yes

Certifications
CE, FCC, IC

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

AUDIO
Built-in microphone	Yes
CAMERA
Lens viewing angle, horizontal	109.9°
Lens viewing angle, vertical	56.7°
Lens viewing angle, diagonal	134.1°
DESIGN
Form factor	Bullet
Product colour	White
Housing material	Aluminium, Polycarbonate (PC)
Mounting type	Ceiling/Wall/Pole
International Protection (IP) code	IP66
IK code	IK04
Weatherproof	Yes
ENERGY MANAGEMENT
DC output voltage	37, 42.5, 48, 54, 57
Power source type	PoE
Power consumption (max)	9.9 W
IMAGE SENSOR
Optical sensor size	25.4 / 1.8 mm (1 / 1.8")
MANAGEMENT FEATURES
Reset button	Yes
NETWORKING
Ethernet LAN	Yes
Bluetooth	No
Wi-Fi	No
Ethernet interface type	Fast Ethernet
NIGHT VISION
LED type	IR
Night vision	Yes
Night vision distance	30 m
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-20 - 50 °C
PACKAGING CONTENT
Manual	Yes
Mounting kit	Yes
Number of cameras	1
Screws included	Yes
PERFORMANCE
Type	IP security camera
Processor model	ARM Cortex-A53
Connectivity technology	Wired
Placement supported	Indoor & outdoor
Built-in processor	Yes
Infrared (IR) cut-off filter	Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
SECURITY
Human and vehicle targets classification	Yes
STORAGE
Built-in HDD	No
SUSTAINABILITY
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
TECHNICAL DETAILS
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
VIDEO
Maximum resolution	3840 x 2160 pixels
Noise reduction	Yes
Frame rate	30 fps
Total megapixels	8 MP
Image quality adjustment	Brightness, Contrast, HDR, Sharpness
Text caption overlay	Yes
Noise reduction technology	2D noise reduction, 3D noise reduction
WEIGHT & DIMENSIONS
Weight	587 g
Height	88.8 mm
Diameter	8.2 cm
