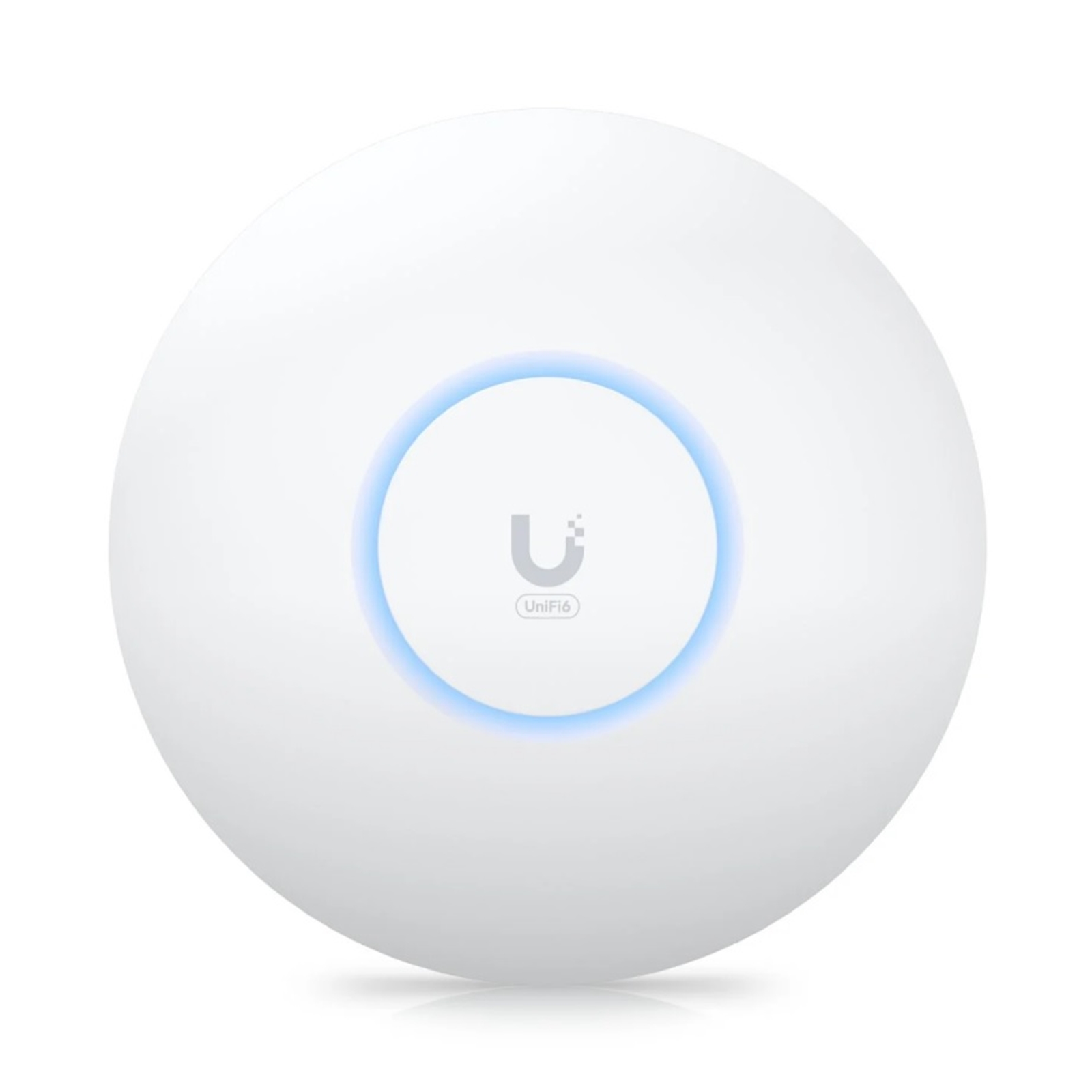

Ubiquiti U6+ (U6-Plus) Long Range Wi-Fi 6 Wireless Access Point

Key Specifications
TypeLong Range
SpeedWiFi 6
Indoor or OutdoorIndoor/Outdoor
POE Capability48v
Pack SizeSingle
Manufacturer : UBIQUITI
EAN : 810084691090
Manufacturer Part Code : U6+
Weight : 0.34 kg
Login For Pricing

Key Specifications
TypeLong Range
SpeedWiFi 6
Indoor or OutdoorIndoor/Outdoor
POE Capability48v
Pack SizeSingle
Manufacturer :
UBIQUITI

EAN :
810084691090

Manufacturer Part Code :
U6+

Weight :
0.34 kg
Recommended Products

Looking for exceptional long-range Wi-Fi connectivity? Look no further than the Ubiquiti U6+ (U6-Plus) Long Range Wi-Fi 6 Wireless Access Point. This cutting-edge device is designed to provide reliable and high-performance wireless networking solutions for your home or business.

With its Wi-Fi 6 technology, the U6+ offers lightning-fast speeds and enhanced network capacity, enabling seamless streaming, gaming, and productivity across multiple devices simultaneously. Say goodbye to buffering and lagging!

Thanks to its long-range capabilities, the U6+ ensures a strong and stable wireless signal even in larger areas, such as offices, warehouses, or expansive homes. No more dead spots or weak connections – enjoy consistent coverage throughout your space.

Equipped with advanced features, the U6+ provides robust security protocols to protect your network and sensitive data. You can rest assured knowing your network is safeguarded against potential threats, ensuring peace of mind for both personal and professional use.

Installation and management of the U6+ are a breeze, thanks to Ubiquiti's user-friendly software interface. Easily set up and customize your network settings, monitor performance, and manage connected devices with ease. Experience hassle-free networking that adapts to your specific needs.

The Ubiquiti U6+ (U6-Plus) Long Range Wi-Fi 6 Wireless Access Point is a top-of-the-line solution that combines superior performance, extensive coverage, and advanced security features. Boost your Wi-Fi experience and take your connectivity to new heights. Upgrade to the U6+ and enjoy a seamless wireless experience like never before.


Specifications

Dimensions
160 x 33 mm (Ø6.3 x 1.3")

Weight
Without mount: 338 g (0.75 lb)
With mount: 413 g (0.91 lb)

Enclosure materials
Top cover: polycarbonate
Bottom cover: aluminum

Mount materials
ABS, SGCC steel

Networking interface
(1) GbE RJ45 port

Management interface
Ethernet

Power method
PoE

Supported voltage range
44–57V DC

Max. power consumption
9W

Max. TX power
2.4 GHz 23 dBm
5 GHz 23 dBm

MIMO
2x2

Throughput rate
2.4 GHz 573.5 Mbps
5 GHz 2402 Mbps

LED
White/blue

Button
Factory reset

Mounting
Wall/ceiling (included)

Operating temperature
-30 to 60° C (-22 to 140° F)

Operating humidity
5 to 95% noncondensing

Certications
CE, FCC, IC

WiFi standards
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6

Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest traffic isolation
Supported

Zero wait DFS
Not supported

Concurrent clients
300+
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
Antenna type Internal
Antenna gain level (max) 5.4 dBi
DESIGN
Certification IC
LED indicators Yes
Product colour White
Reset button Yes
Housing material Aluminium, Polycarbonate (PC)
Placement Ceiling
ENERGY MANAGEMENT
Power over Ethernet (PoE) Yes
DC voltage range 44 - 57 V
Power consumption (max) 9 W
FEATURES
Maximum data transfer rate 2402 Mbit/s
Number of users 300 user(s)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q
Quality of Service (QoS) support Yes
VLAN support Yes
Maximum indoor range 139.35 m
Transmitting power 23 dBmW
2.4 GHz Yes
5 GHz Yes
MIMO Yes
Maximum data transfer rate (2.4 GHz) 573.5 Mbit/s
Maximum data transfer rate (5 GHz) 2402 Mbit/s
6 GHz No
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -30 - 60 °C
PACKAGING CONTENT
Number of products included 1 pc(s)
Mounting kit Yes
PACKAGING DATA
Number of products included 1 pc(s)
Mounting kit Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 1
Internal RJ-45 ports quantity 1
SECURITY
Security algorithms WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA3-Enterprise
SUSTAINABILITY
Sustainability certificates CE, Federal Communications Commission (FCC)
TECHNICAL DETAILS
Sustainability certificates CE, Federal Communications Commission (FCC)
Compliance certificates CE, Federal Communications Commission (FCC)
WEIGHT & DIMENSIONS
Weight 338 g
Height 33 mm
Width 160 mm
Depth 160 mm
