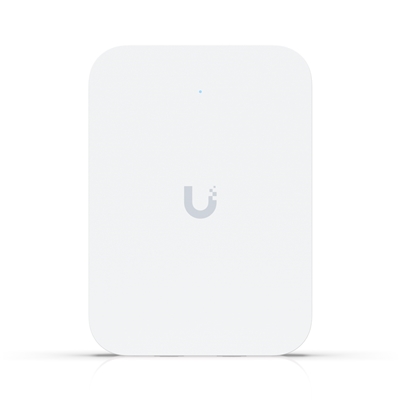

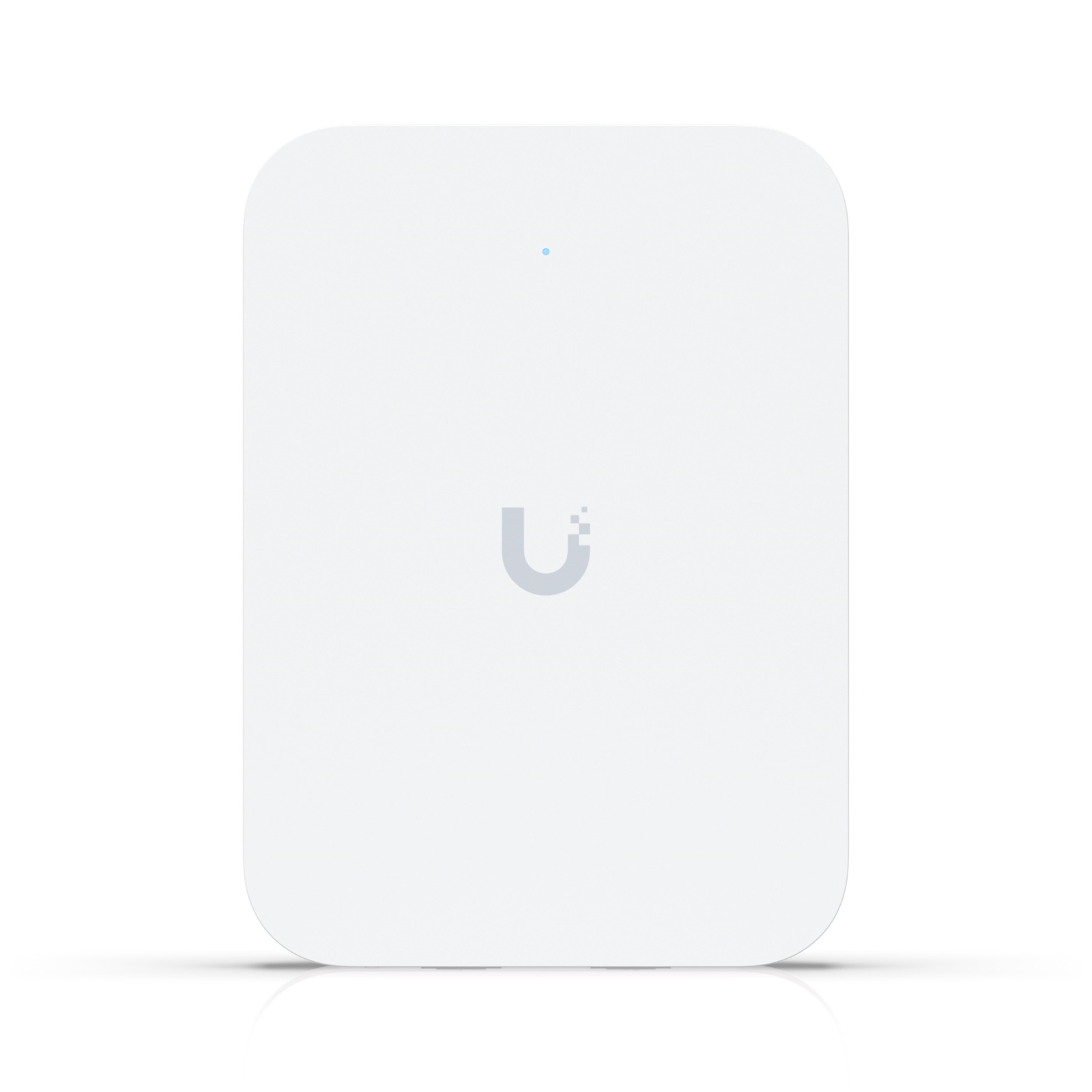

Wall-mounted WiFi? 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

Note. PoE+ input required for single-port PoE output.

Dimensions
137 x 98.7 x 30.2 mm
(5.4 x 3.9 x 1.2")

WiFi Standard
WiFi 7

Spatial Streams
4

Coverage Area
115 m2 (1,250 ft2)

Max. Client Count
200+

Uplink
2.5 GbE

Mounting
Wall
(Metal Wall Mount Included)

Power Method
PoE
PoE+ (Required for PoE output)

MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
5 GHz
4.3 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
5 GHz
8 dBi

2.4 GHz
4 dBi

Max. TX Power
5 GHz
24 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Max. Power Consumption
13W (Excluding PoE output)

Supported Voltage Range
42.5—57V DC

Networking Interface
(3) 2.5 GbE RJ45 ports

Weight
400 g (14.1 oz)

Management
Ethernet

Built-In Switch
(1) PoE+ input and
(1) PoE output

Enclosure Material
Polycarbonate, aluminum alloy

Mount Material
Aluminum alloy

LEDs
White/Blue

Certifications
CE, FCC, IC

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ANTENNA
Antenna type	Internal
Antenna gain level (max)	8 dBi
Antennas quantity	4
CERTIFICATION
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
DESIGN
LED indicators	Status
Product colour	White
Reset button	Yes
Housing material	Aluminium, Polycarbonate (PC)
Placement	Wall
ENERGY MANAGEMENT
Power over Ethernet (PoE)	Yes
DC voltage range	42.5 - 57 V
Power consumption (max)	13 W
FEATURES
Maximum data transfer rate	4300 Mbit/s
Frequency band	2.4 - 5 GHz
Number of users	200 user(s)
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates	2500 Mbit/s
VLAN support	Yes
2.4 GHz	Yes
5 GHz	Yes
MIMO	Yes
Fast roaming	Yes
Band steering	Yes
MIMO type	Multi User MIMO
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	4300 Mbit/s
Fit AP mode features	Hotspot 2.0
6 GHz	No
Maximum Tx power (2.4 GHz)	23 dBmW
Maximum Tx power (5 GHz)	24 dBmW
Spatial streams	4
Coverage area	115 m²
Wireless meshing	Yes
LOGISTICS DATA
Quantity per pack	1 pc(s)
MANAGEMENT FEATURES
Access point management	Wi-Fi schedule
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 40 °C
PACKAGING CONTENT
Mounting kit	Yes
Quantity per pack	1 pc(s)
PACKAGING DATA
Mounting kit	Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	3
SECURITY
Security algorithms	PPSK
TECHNICAL DETAILS
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
WEIGHT & DIMENSIONS
Weight	400 g
Height	137 mm
Width	98.7 mm
Depth	30.2 mm
