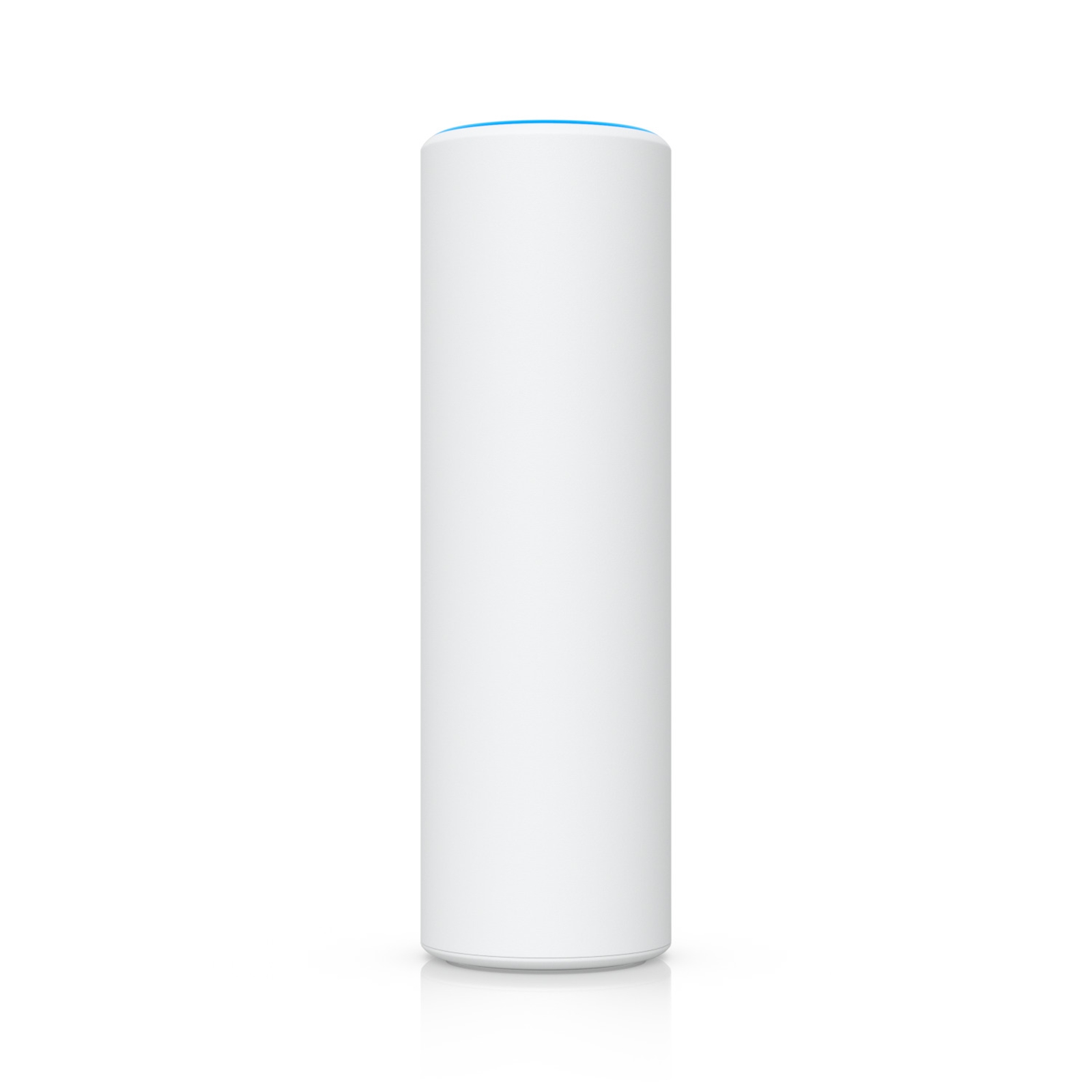

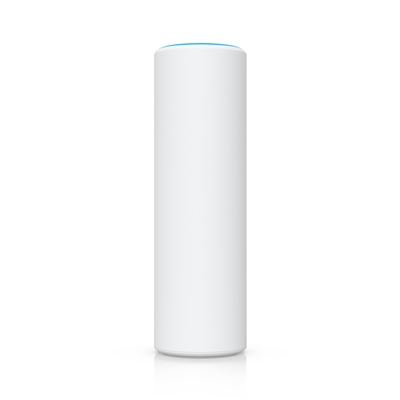

Ubiquiti U7 Mesh

Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system.

Specifications

Overview

Dimensions
48.5 x 159.5 mm
(1.9 x 6.3")

WiFi Standard
WiFi 7

Spatial Streams
4

Coverage Area
140 m² (1,500 ft²)

Max. Client Count
200+

Uplink
2.5 GbE

Mounting
Wall, Pole, Table stand
(Mounts included)

Weatherproofing
IPX6 (Installed with the outdoor mount)

Power Method
PoE

Performance

MIMO
5 GHz - 2 x 2 (DL/UL MU-MIMO)
2.4 GHz - 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
5 GHz - 4.3 Gbps (BW240)
2.4 GHz - 688 Mbps (BW40)

Antenna Gain
5 GHz - Omnidirectional: 6 dBi
Directional: 10 dBi
2.4 GHz - 3 dBi

Max. TX Power
5 GHz - 24 dBm
2.4 GHz - 23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7) - 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Custom Branding Landing Page - Yes
Voucher Authentication - Yes
Payment-Based Authentication - Yes
External Portal Server Support - Yes
Password Authentication - Yes
Guest Network Isolation - Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Hardware

Max. Power Consumption
13W

Includes PoE Adapter
Yes

Supported Voltage Range
42.5–57V DC

Networking Interface
(1) 2.5 GbE RJ45 port

Weight
313 g (11 oz)

Management
Ethernet

Enclosure Material
UV-stabilized polycarbonate

Mount Material
UV-stabilized polycarbonate

LEDs
System - W/B

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

NDAA Compliant
Yes

Certifications
CE, FCC, IC

Ambient Operating Temperature
-30 to 60 C (-22 to 140 F)

Ambient Operating Humidity
5 to 95% noncondensing

Software

Application Requirements

Mobile App
UniFi iOS: Version 10.32.1 and later
Android: Version 10.35.1 and later
