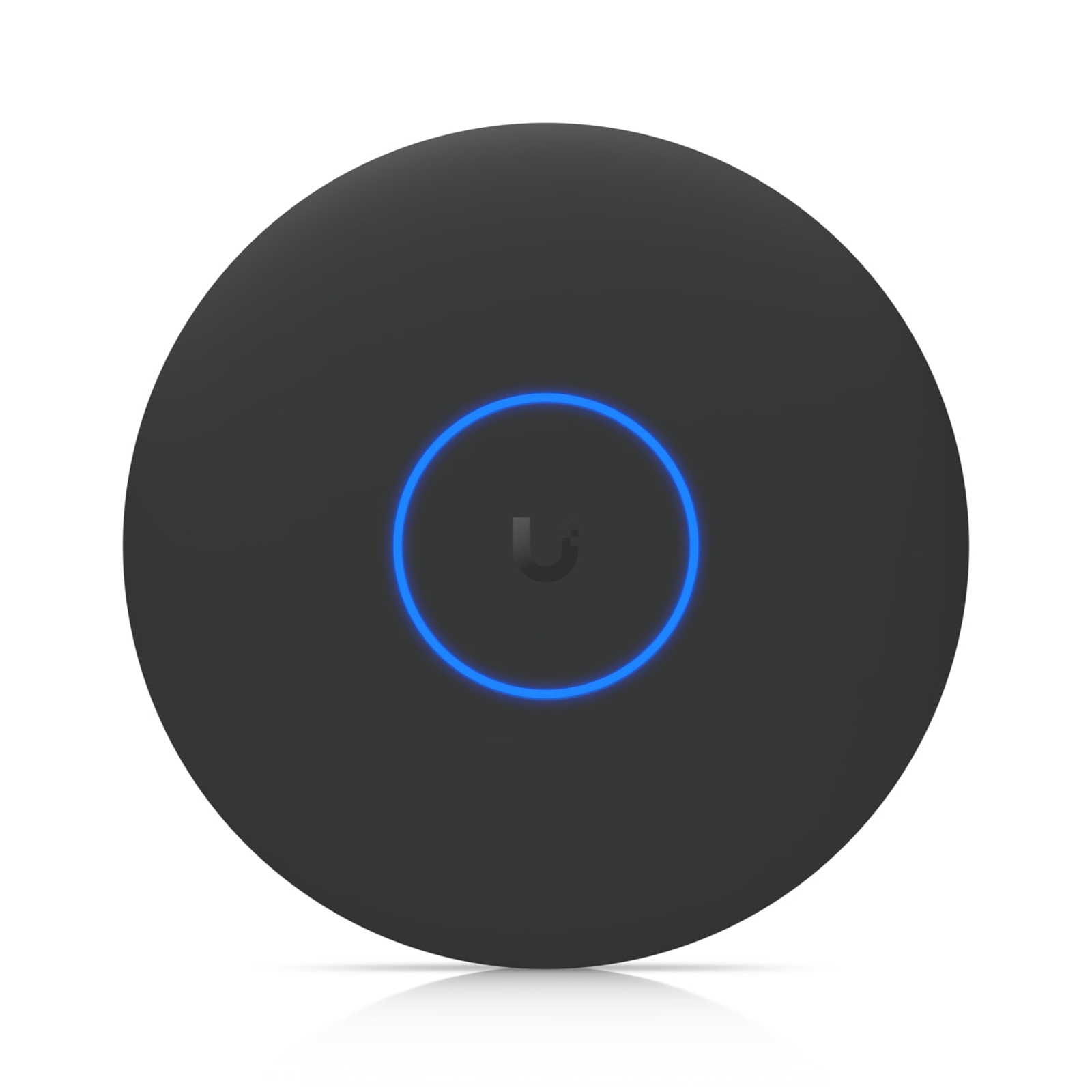

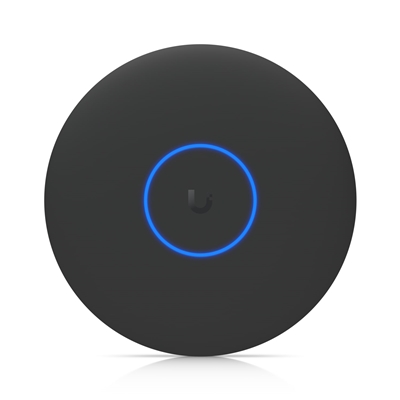

Ubiquiti U7-PRO-XGS UniFi 7 Pro XGS Ceiling Mounted 8 Stream WiFi 7 6GHz 10GbE Access Point - Black

NPUBI-U7PRO-XGSB
WiFi 7 with 6 GHz support
Key Specifications
TypeHigh Density
Speed8600Mbps
Indoor or OutdoorIndoor
POE Capability48v
Pack SizeSingle
/productImages/80/NPUBI-U7PRO-XGSB.jpg
/productImages/80/210133.JPG
/productImages/80/210134.JPG
/productImages/80/210135.JPG
/productImages/80/210136.JPG
/productImages/80/210137.JPG
/productImages/80/210138.JPG
/productImages/80/210139.JPG
Manufacturer : UBIQUITI
EAN : 0810177162131
Manufacturer Part Code : U7-Pro-XGS-B
Weight : 0.8 kg
Login For Pricing

Key Specifications
TypeHigh Density
Speed8600Mbps
Indoor or OutdoorIndoor
POE Capability48v
Pack SizeSingle
Manufacturer :
UBIQUITI

EAN :
0810177162131

Manufacturer Part Code :
U7-Pro-XGS-B

Weight :
0.8 kg
Recommended Products

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

WiFi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for enhanced channel selection
160 m2 (1,750 ft2) coverage
500+ connected devices
Powered using PoE++
10 GbE uplink

Dimensions
d215 x 32.5 mm
(d8.5 x 1.3")

WiFi Standard
WiFi 7

Spatial Streams
8

Coverage Area
160 m2 (1,750 ft2)

Max. Client Count
500+

Uplink
10 GbE

Mounting
Ceiling, Wall
(Lite Mount Included)

Power Method
PoE++

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)

5 GHz
4 x 4 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
6 GHz
5.8 Gbps (BW320)

5 GHz
8.6 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
6 GHz
6 dBi

5 GHz
6 dBi

2.4 GHz
4 dBi

Max. TX Power
6 GHz
24 dBm

5 GHz
29 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Zero-Wait DFS
Yes

Advanced Radio Management
Yes

Real-Time Spectral Analysis
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Max. Power Consumption
29W

Supported Voltage Range
42.5 - 57V DC

Networking Interface
(1) 10 GbE RJ45 port

Weight
800 g (1.8 lb)

Management
Ethernet

Enclosure Material
UV-stabilized polycarbonate, aluminum alloy

Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)

LEDs
System

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Certifications
CE, FCC, IC
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
Antenna type Internal
Antenna gain level (max) 6 dBi
CERTIFICATION
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
DESIGN
LED indicators Status
Product colour Black
Reset button Yes
Housing material Metal, Polycarbonate (PC)
Placement Ceiling, Wall
ENERGY MANAGEMENT
Power over Ethernet (PoE) Yes
Power consumption (max) 29 W
Power over Ethernet (PoE) type supported PoE++ (4PPoE)
FEATURES
Maximum data transfer rate 8600 Mbit/s
Frequency band 2.4, 5, 6 GHz
Number of users 500 user(s)
Networking standards IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Rate limiting Yes
Ethernet LAN data rates 1000,2500,5000,10000 Mbit/s
VLAN support Yes
2.4 GHz Yes
5 GHz Yes
MIMO Yes
Fast roaming Yes
Band steering Yes
MIMO type Multi User MIMO
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate (5 GHz) 8600 Mbit/s
Fit AP mode features Hotspot 2.0
6 GHz Yes
Maximum data transfer rate (6 GHz) 5800 Mbit/s
Maximum Tx power (2.4 GHz) 23 dBmW
Maximum Tx power (5 GHz) 29 dBmW
Spatial streams 8
Coverage area 160 m²
Maximum Tx power (6 GHz) 24 dBmW
Wireless meshing Yes
LOGISTICS DATA
Quantity per pack 1 pc(s)
MANAGEMENT FEATURES
Access point management Wi-Fi schedule
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -30 - 40 °C
PACKAGING CONTENT
Mounting kit Yes
Quantity per pack 1 pc(s)
PACKAGING DATA
Mounting kit Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 1
SECURITY
Security algorithms PPSK
TECHNICAL DETAILS
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
WEIGHT & DIMENSIONS
Weight 800 g
Height 215 mm
Width 215 mm
Depth 32.5 mm
