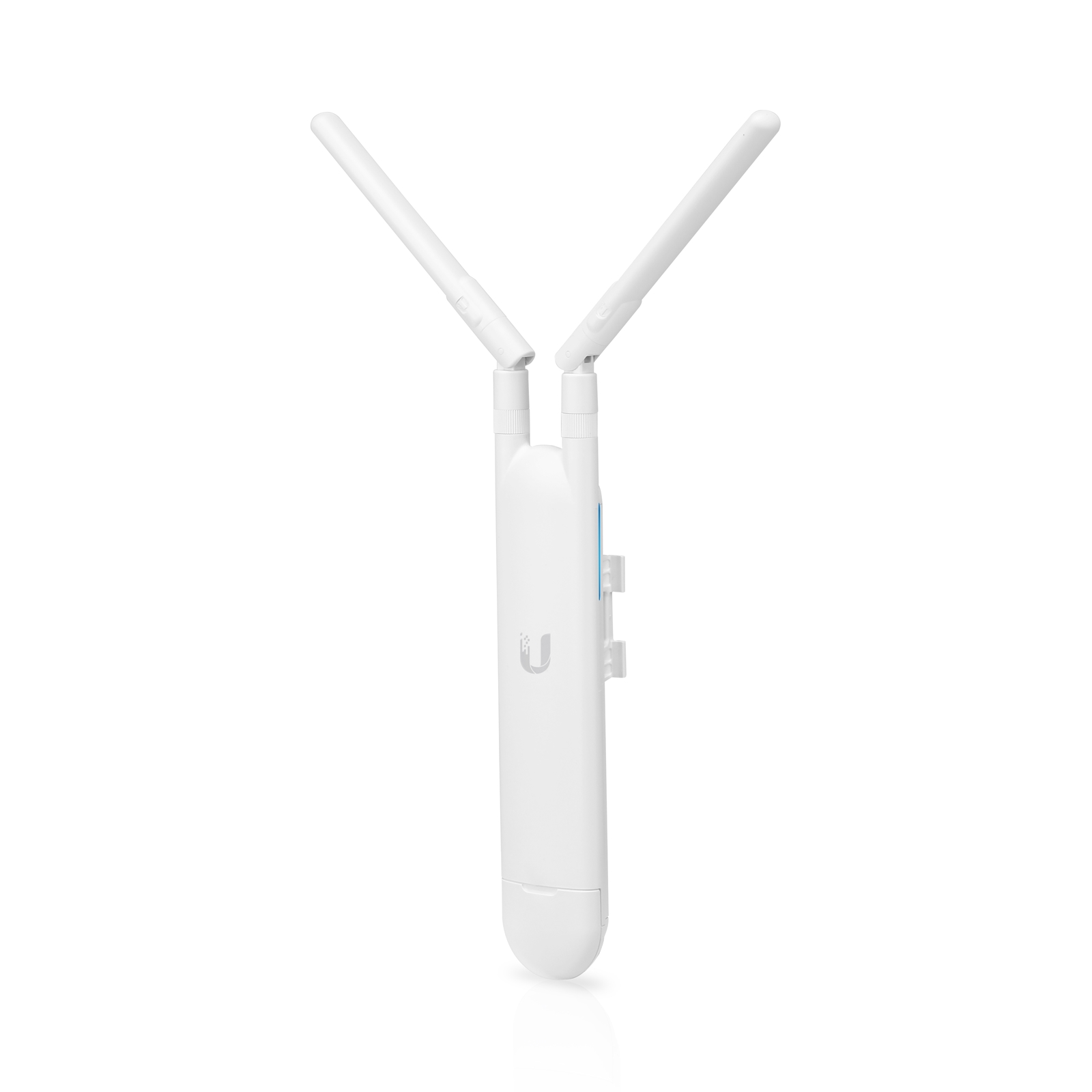

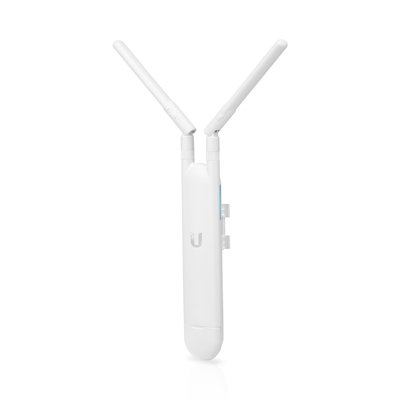

802.11AC Indoor/Outdoor Wi-Fi Access Point with Plug & Play Mesh Technology

Antenna Versatility
Adjustable dual-band omni-directional antennas and Fast-Mount included for expanded range coverage.

Optimal Performance
Dual-Band performance with aggregate speeds of up to 1167 Mbps.

Compact Form Factor
The UniFi AC Mesh base is just slightly larger than a standard pen, making it easy to deploy anywhere. Dimensions: 354 x 46 x 34 mm (H x W x D)

Multiple Power Options
Power the UniFi AC Mesh with an 802.3af compatible switch, a UniFi PoE Switch or the included Gigabit PoE adapter.

Mounting Flexibility
The UniFi AC Mesh can be mounted on a pole, wall, or Ubiquiti high-gain antenna.

Expand the limits of Wide-Area WiFi
UniFi creates a highly scalable, end-to-end system of devices spanning multiple locations across the world � all controlled by a single interface accessed via the Internet or local network.

Specifications

Dimensions: 353 x 46 x 34.4 mm
Environment: Indoor/Outdoor
2.4GHz Speed: 300 Mbps
5GHz Speed: 867 Mbps
Ports: 1x 10/100/1000 Ethernet / 24V Passive PoE and 802.3af

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ANTENNA
Antenna gain level (max)	4 dBi
Antennas quantity	2
Antenna features	Detachable antenna
DESIGN
Internal	No
Certification	CE, FCC, IC
Product colour	White
Reset button	Yes
Placement	Wall
ENERGY MANAGEMENT
Power consumption (typical)	8.5 W
Power supply	24 W
Power over Ethernet (PoE)	Yes
FEATURES
Maximum data transfer rate	1167 Mbit/s
Number of users	250 user(s)
Networking standards	IEEE 802.3af
Quality of Service (QoS) support	Yes
VLAN support	Yes
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia�(WMM)/(WME)	Yes
MIMO	Yes
LOGISTICS DATA
Harmonized System (HS) code	85176990
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 70 °C
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
SECURITY
Number of SSID supported	4
Service Set Identifier (SSID) features	Hidden SSID
TECHNICAL DETAILS
Harmonized System (HS) code	85176990
WEIGHT & DIMENSIONS
Weight	152 g
Height	353 mm
Width	46 mm
Depth	34 mm
