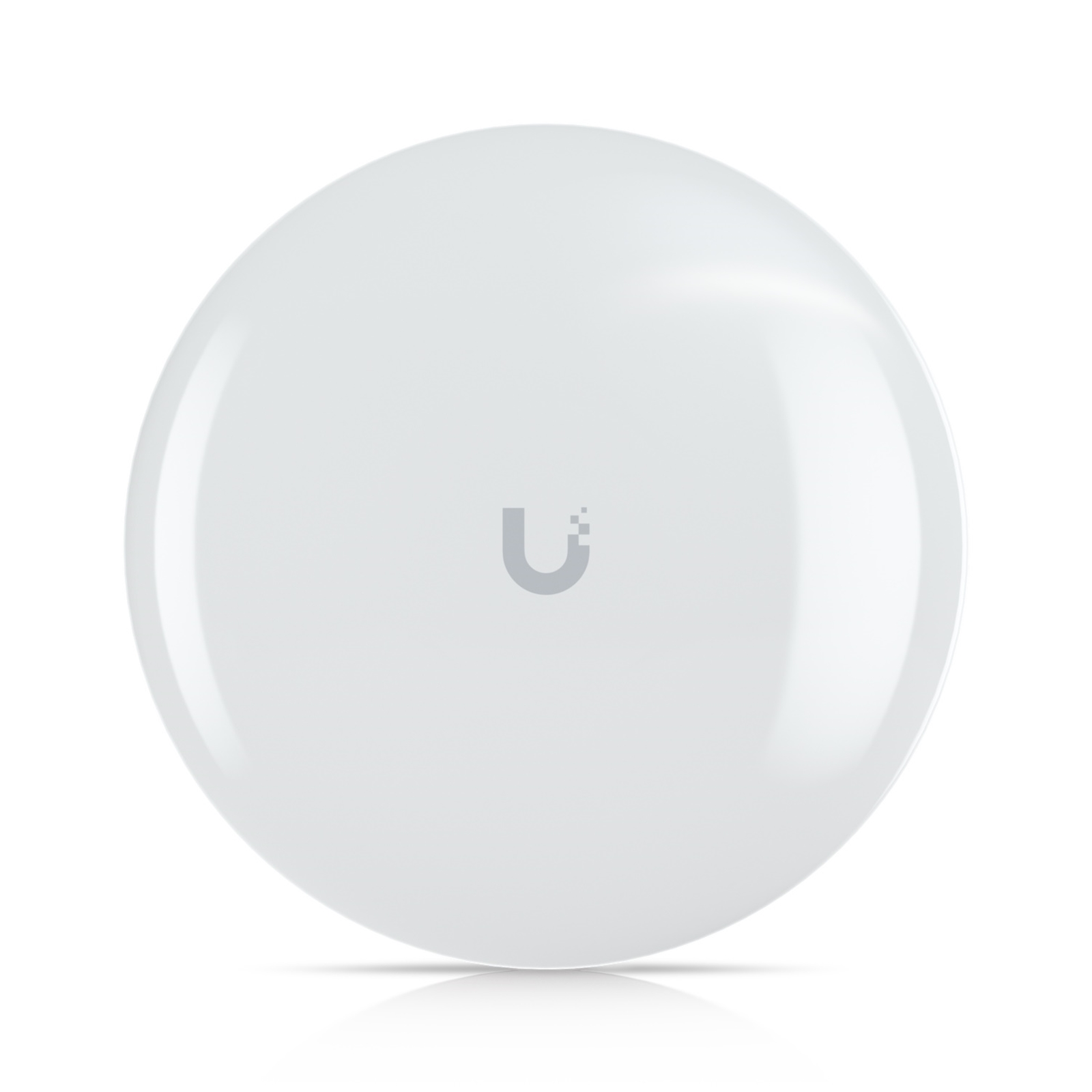

5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.

Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
PoE adapter included. PoE+ input required for PoE passthrough.

Dimensions
d189.5 x 64.3 mm
(d7.4 x 2.5")

WiFi Standard
WiFi 5

Spatial Streams
2

Coverage Area
5 km (3.1 mi)

Mounting Locations
Wall/Pole

Weatherproofing
IPX6

Power Method
PoE
PoE+ (Required for PoE output)

MIMO
2 x 2

Max. Data Rate
867 Mbps (BW80)

Antenna Gain
19 dBi

Max. TX Power
25 dBm

Max. Conducted TX Power
25 dBm (Combined)

Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Wireless Security
WPA2 AES (Always On)

Max. Power Consumption
9W

Supported Voltage Range
42.5—57V DC

Networking Interface
(2) GbE RJ45 ports

Antennas
Internal

Management
(1) PoE in (PoE output not used)
(1) Passive PoE output

Wind Loading
69 N at 200 km/h (15.5 lbf at 125 mph)

Weight
Device: 431 g (0.95 lb)
With mount: 515 g (1.1 lb)

Mount Material
UV-stabilized polycarbonate, stainless steel

Enclosure Material
UV-resistant polycarbonate

Pole Mount Diameter
0.8–2.1" (20–53.1 mm)

Button
(1) Factory-reset

System LEDs
Power, Ethernet, (4) signal strength

Channel Bandwidth
20/40/80 (MHz)

Certifications
CE, FCC, IC

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ANTENNA
Antenna type	2x2
Antenna gain level (max)	19 dBi
Antenna design	Internal
CERTIFICATES
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
DATA TRANSMISSION
Maximum data transfer rate	866.7 Mbit/s
ENERGY MANAGEMENT
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) voltage	48 V
Power source type	DC, PoE
DC input voltage	42.5 - 57 V
Power consumption (max)	9 W
FEATURES
Material	Polycarbonate (PC), Stainless steel
LED indicators	LAN, Power, Signal strength
Product colour	White
Power LED	Yes
Reset button	Yes
Mounting type	Pole
International Protection (IP) code	IPX6
Product type	Network bridge
NETWORKING
Ethernet LAN	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 60 °C
PACKAGING CONTENT
Cables included	AC
Power supply included	Yes
Mounting bracket(s) included	Yes
PACKAGING DATA
Quantity per pack	1 pc(s)
PORTS & INTERFACES
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	2
Power over Ethernet plus (PoE+) ports quantity	1
SECURITY
Security algorithms	WPA2-AES
TECHNICAL DETAILS
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
WEIGHT & DIMENSIONS
Weight	515 g
Height	189.5 mm
Width	189.5 mm
Depth	64.3 mm
WIRELESS LAN FEATURES
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Outdoor range	5+ km
Frequency band	5 GHz
Wi-Fi	Yes
Wi-Fi band	Single-band (5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Signal strength	25 dBm
