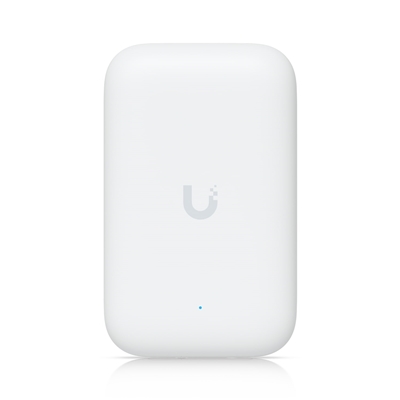

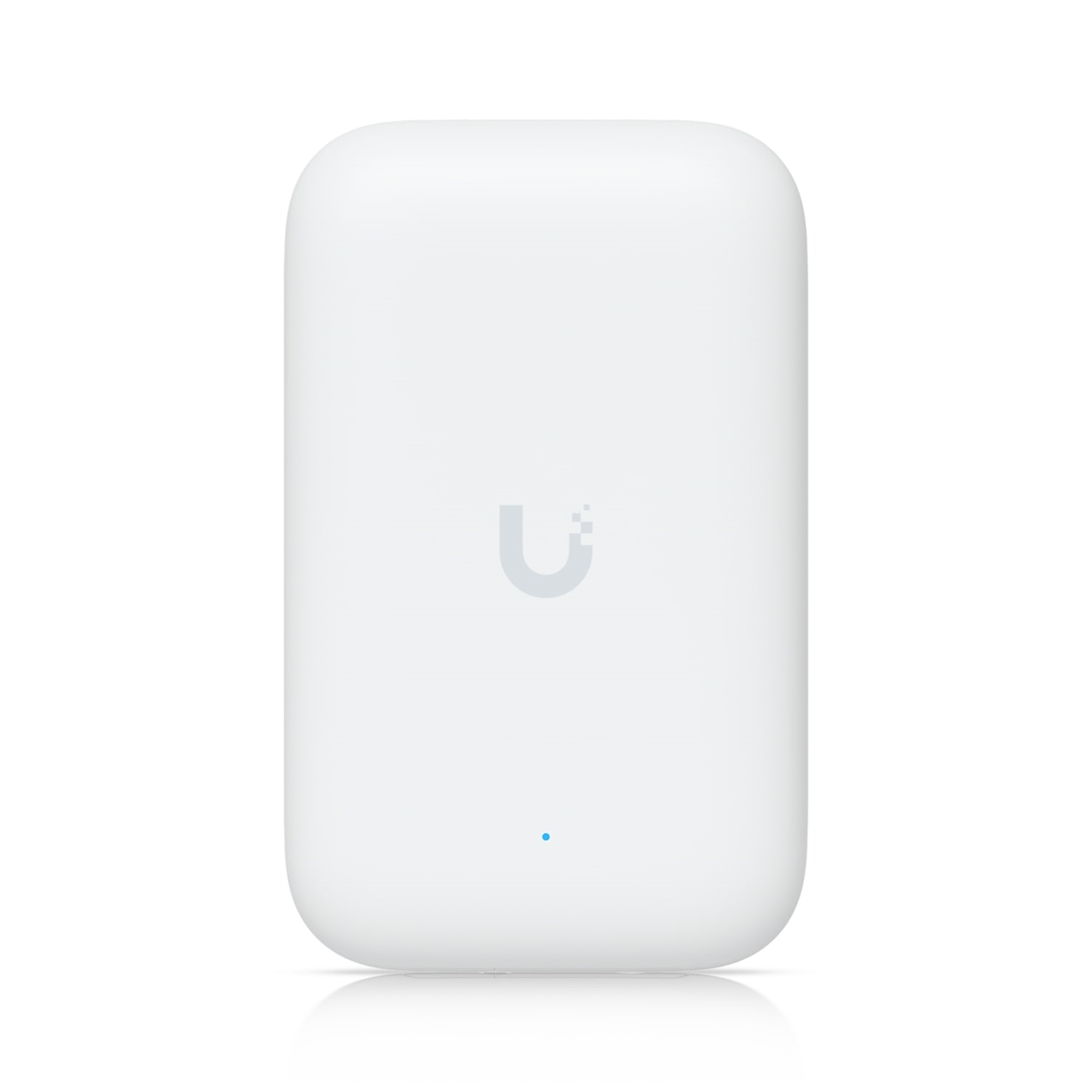

Ubiquiti UniFi Ultra "Swiss Army Knife" Access Point - UK-Ultra

Key Specifications
TypeAccess Point
SpeedAC1200
Indoor or OutdoorIndoor/Outdoor
POE CapabilityN/A
Pack SizeSingle
/productImages/80/NPUBI-UKULTRA.JPG
/productImages/80/193066.JPG
/productImages/80/193067.JPG
/productImages/80/193068.JPG
/productImages/80/193069.JPG
/productImages/80/193070.JPG
/productImages/80/193071.JPG
/productImages/80/193072.JPG
/productImages/80/193073.JPG
Manufacturer : UBIQUITI
EAN : 810084693636
Manufacturer Part Code : UK-Ultra
Weight : 0.17 kg
Login For Pricing

Key Specifications
TypeAccess Point
SpeedAC1200
Indoor or OutdoorIndoor/Outdoor
POE CapabilityN/A
Pack SizeSingle
Manufacturer :
UBIQUITI

EAN :
810084693636

Manufacturer Part Code :
UK-Ultra

Weight :
0.17 kg
Recommended Products

Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.

Features
WiFi 5
4 spatial streams
115 m² (1,250 ft²) coverage with internal antenna
200+ connected devices
Powered using PoE
GbE uplink
Versatile wall, ceiling, and pole mounting
2 x RP-SMA connectors for optional external antennas*
Weatherproof (outdoor exposed)

*Omnidirectional and directional antenna accessories coming soon.

Ubiquiti UniFi UK-Ultra "Swiss Army Knife" Access Point

UniFi UK-Ultra supports wireless standards 8021.11a/b/g/n/ac in a 2x2 MIMO configuration for both frequency bands and can handle 200+ connected clients.

UniFi UK-Ultra fearures a pair of RSMA connectors, where an omnidirectional or sectoral external antenna can be connected to increase the transmitter's range.

The UniFi UK-Ultra Access Point offers a wide range of mounting options on walls, ceilings, or poles, with mounting accessories included in the package.

Specifications

Mechanical

Weight &Dimensions
137 x 84 x 34 mm (5.4 x 3.3 x 1.3")
173 g (6.1 oz)

Enclosure materials
UV-stabilized polycarbonate

Mount materials
Polycarbonate, SGCC steel, plastic

Pole mount diameter
1~2" on pipe outer diameter

Wind survivability
33.2 N at 200 km/h (7.5 lbf at 125 mph)

Weatherproofing
IPX6

Hardware

Networking interface
(1) GbE RJ45 port

Management interface
Ethernet

Power method
PoE

Power supply
UniFi PoE Switch

Supported voltage range
44—57V DC

Max. power consumption
8W

Max. TX power
2.4 GHz - 20 dBm
5 GHz - 20 dBm

MIMO
2.4 GHz - 2 x 2
5 GHz - 2 x 2

Throughput rate
2.4 GHz - 300 Mbps
5 GHz - 866.7 Mbps

Antenna gain
2.4 GHz - 6 dBi
5 GHz - 6 dBi

Antenna
(1) Internal antenna
(2) RP-SMA connectors for optional external antennas

LEDs
(1) Power: white/blue
(4) Mesh signal: blue

Button
Factory reset

Mounting
Wall, ceiling, pole mount (Included)

Operating temperature
-40 to 60° C (-40 to 140° F)

Operating humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Software

WiFi standards
802.11a/b/g/n/ac

Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest traffic isolation
Supported

Concurrent clients
200+

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Application Requirements

UniFi Network
Web: Version 8.0.7 and later
iOS: Version 10.11.1 and later
Android: Version 10.10.1 and later
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
Antenna type Internal
Antenna gain level (max) 6 dBi
Antenna connector type RP-SMA
Antennas quantity 1
Number of connectors 2
DESIGN
LED indicators Power, Signal strength
Product colour White
Reset button Yes
Housing material Polycarbonate (PC)
International Protection (IP) code IPX6
Placement Ceiling, Pole, Wall
ENERGY MANAGEMENT
Power over Ethernet (PoE) Yes
DC voltage range 44- 57 V
Power consumption (max) 8 W
FEATURES
Maximum data transfer rate 866.7 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Quality of Service (QoS) support Yes
Rate limiting Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
VLAN support Yes
2.4 GHz Yes
5 GHz Yes
MIMO Yes
Maximum data transfer rate (2.4 GHz) 300 Mbit/s
Maximum data transfer rate (5 GHz) 866.7 Mbit/s
6 GHz No
MANAGEMENT FEATURES
Web-based management Yes
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -40 - 60 °C
PACKAGING CONTENT
Number of products included 1 pc(s)
Mounting kit Yes
PACKAGING DATA
Number of products included 1 pc(s)
Mounting kit Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 1
SECURITY
Security algorithms AES, TKIP, WPA, WPA-Enterprise, WPA-PSK, WPA2
SUSTAINABILITY
Sustainability compliance Yes
Sustainability certificates CE, Federal Communications Commission (FCC)
TECHNICAL DETAILS
Sustainability certificates CE, Federal Communications Commission (FCC)
Compliance certificates CE, Federal Communications Commission (FCC)
WEIGHT & DIMENSIONS
Weight 173 g
Height 137 mm
Width 84 mm
Depth 34 mm
