ONLY COMPATIBLE WITH UNIFI OS CONSOLES SUCH AS UDM/UDM-PRO

Third-Party SIM Card Support

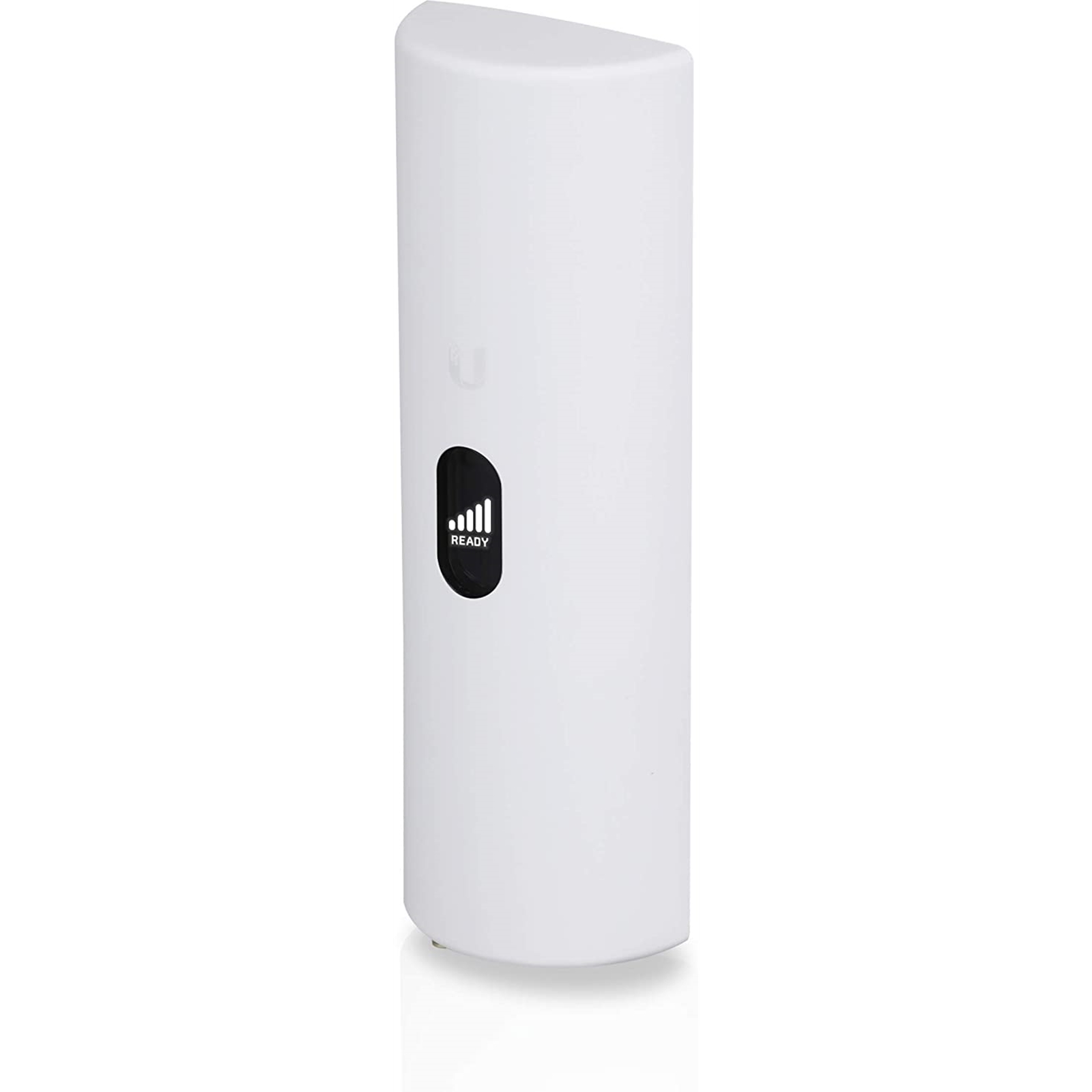

Avoid internet downtime and lost productivity by adding a UniFi LTE Pro to your existing UniFi network.

UniFi LTE Pro provides backup cellular internet connectivity to ensure your UniFi WAN network is always running. This model works in the EU region and supports European LTE and WCDMA bands. It has a Nano SIM card slot for your own card. Insert the Nano SIM, connect to any switch port in your corporate network, and activate the device.

Features:

Automatic redundant WAN connection
Integrated with UniFi Network application
PoE (802.3af) powered
Nano SIM card slot
Supports European bands: LTE (1, 3, 7, 8, 20, 28), WCDMA (1, 8)
Coverage and speed depend on the mobile network.
Requires UniFi Security Gateway or UniFi Dream Machine.

Managed with UniFi Network Application Version: 5.14.0or higher.

Note:This device only supports UniFi Network setups hosted by a UniFi OS Console.

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATES
Compliance certificates	CE, Federal Communications Commission (FCC)
DESIGN
Product colour	Grey, White
Mounting type	Desktop/Wall mounting
Enclosure material	Polycarbonate (PC)
DISPLAY
Control display unit	Yes
ENERGY MANAGEMENT
Power supply	0.5 W
Power over Ethernet (PoE)	Yes
DC input voltage	44 - 57 V
Power consumption (max)	8.5 W
FEATURES
Antenna type	Internal
Antenna connector type	RP-SMA
Antennas quantity	2
MANAGEMENT FEATURES
Web-based management	Yes
Reset button	Yes
MEMORY
Internal memory	128 MB
Internal memory type	DDR2
NETWORKING
Ethernet LAN data rates	10,100,1000 Mbit/s
Data network	4G
4G LTE category	4
Downlink/uplink speed	150 / 50 Mbit/s
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-10 - 60 °C
PERFORMANCE
Processor frequency	775 MHz
Internal memory	128 MB
Processor model	MIPS32 74Kc
Internal memory type	DDR2
Processor manufacturer	MIPS
Built-in processor	Yes
Display type	LCM
Control display unit	Yes
PORTS & INTERFACES
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	2
Number of simultaneous SIM cards	1
SIM card type	NanoSIM
SIM card slot	Yes
SUSTAINABILITY
Sustainability compliance	Yes
TECHNICAL DETAILS
Processor frequency	775 MHz
Built-in processor	Yes
Compliance certificates	CE, Federal Communications Commission (FCC)
WEIGHT & DIMENSIONS
Weight	223 g
Height	202 mm
Width	66 mm
Depth	32 mm
