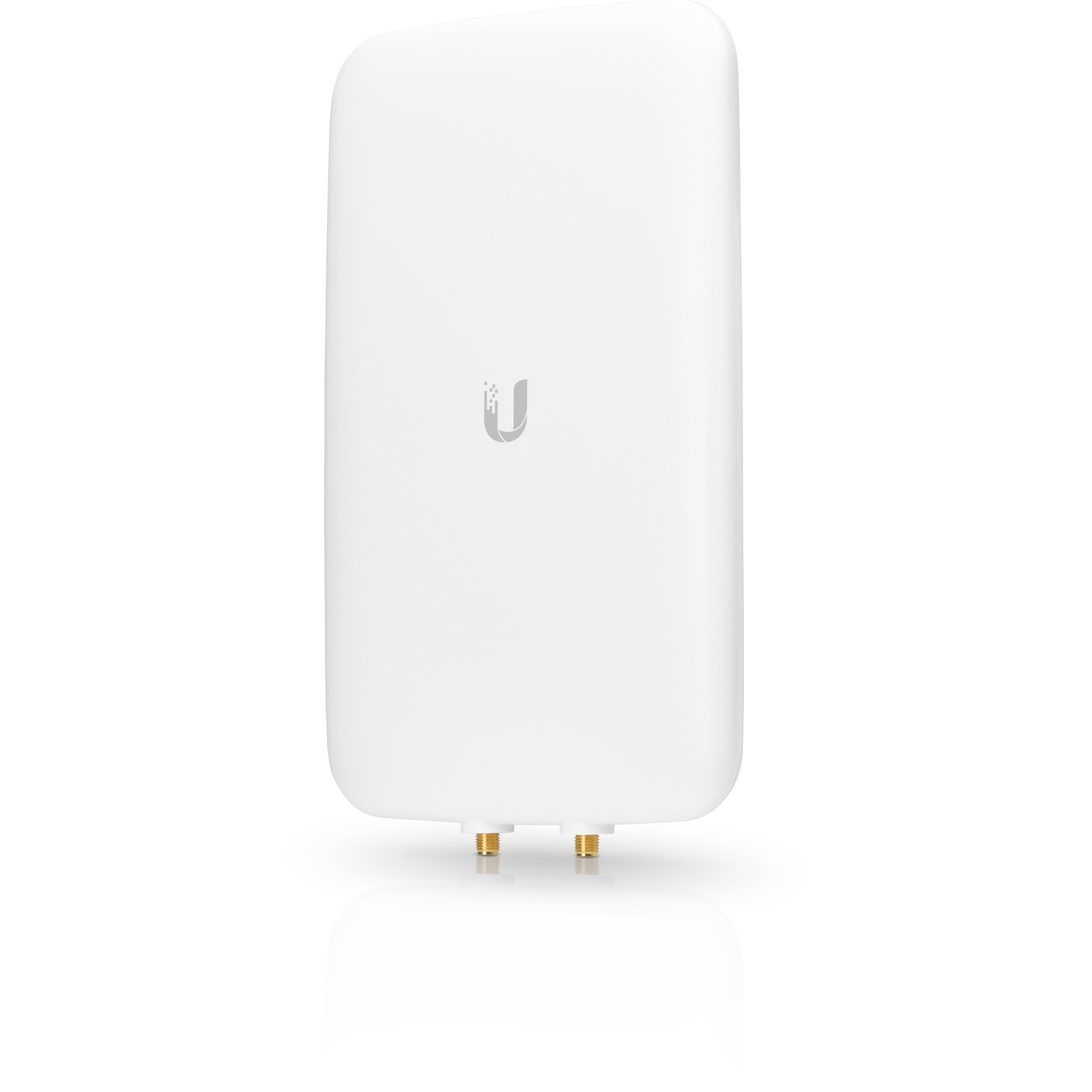

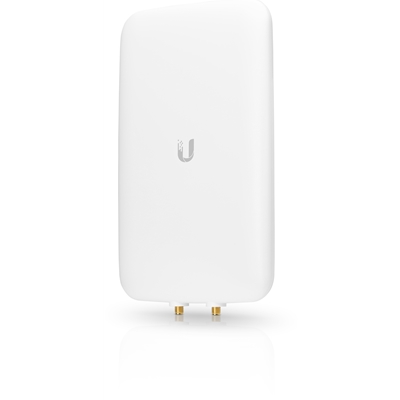

Directional Dual-Band Antenna for UAP-AC-M
The UMA-D is a dual-band, dual-polarity antenna optimized for 802.11ac. It offers a directional radiation pattern and a three-axis ball joint mount for precise aiming.

Dual-Band Directivity
Directivity allows you to get coverage where you need it. With its high-efficiency radiator, the UMA-D delivers significantly better performance for your desired coverage area and less interference with neighboring APs.

Mounting Versatility
Use the included mount for horizontal or vertical mounting on a wall, ceiling, or pole. The ball-joint system allows for quick and easy alignment: azimuth (left/right), elevation (up/down), and orientation (vertical or horizontal pole/surface).

Specifications

Dimensions: 201.3 x 128.0 x 32.5 mm (7.93 x 5.04 x 1.28")
Weight: with Mount - 480 g (16.93 oz), without Mount - 400 g (14.11 oz)
Enclosure: Outdoor UV Stabilized Plastic
RF Connections: (2) RP-SMA
Supported Frequency Range: 2.4 - 2.5 GHz, 5.1 - 5.9 GHz
HPOL Beamwidth: 2.4 GHz - 90�, 5 GHz - 45�
VPOL Beamwidth: 2.4 GHz - 90�, 5 GHz - 45�
Elevation Beamwidth: 2.4 GHz - 90�, 5 GHz - 45�
Maximum VSWR: 2:1
Polarization: Dual-Linear
Cross-Pol Isolation: 2.4 GHz - 25 dB, 5 GHz - 30 dB
Antenna Gain: 2.4 GHz - 10 dBi, 5 GHz - 15 dBi
Mounting: Wall/Pole (Kits Included)

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

FEATURES
Antenna type	Directional antenna
Product colour	White
Mounting	Wall/Pole
Compatible products	UAP-AC-M
Purpose	Indoor & outdoor
Antenna connector type	RP-SMA
Polarization	Dual polarization
Voltage Standing Wave Ratio (VSWR)	2:1
Housing material	Plastic
LOGISTICS DATA
Harmonized System (HS) code	85177100
PACKAGING CONTENT
Mounting kit	Yes
Quantity per pack	1 pc(s)
PERFORMANCE
Frequency band	2.4 - 2.5, 5.1 - 5.9 GHz
Networking standards	IEEE 802.11ac
Antenna gain level (max)	15 dBi
Antenna gain (2.4 GHz)	10 dBi
Antenna gain (5 GHz)	15 dBi
Horizontal beam width (2.4 GHz)	90°
Horizontal beam width (5 GHz)	45°
Vertical beam width (5 GHz)	45°
Vertical beam width (2.4 GHz)	90°
WEIGHT & DIMENSIONS
Weight	480 g
Height	201.3 mm
Width	128 mm
Depth	32.5 mm
