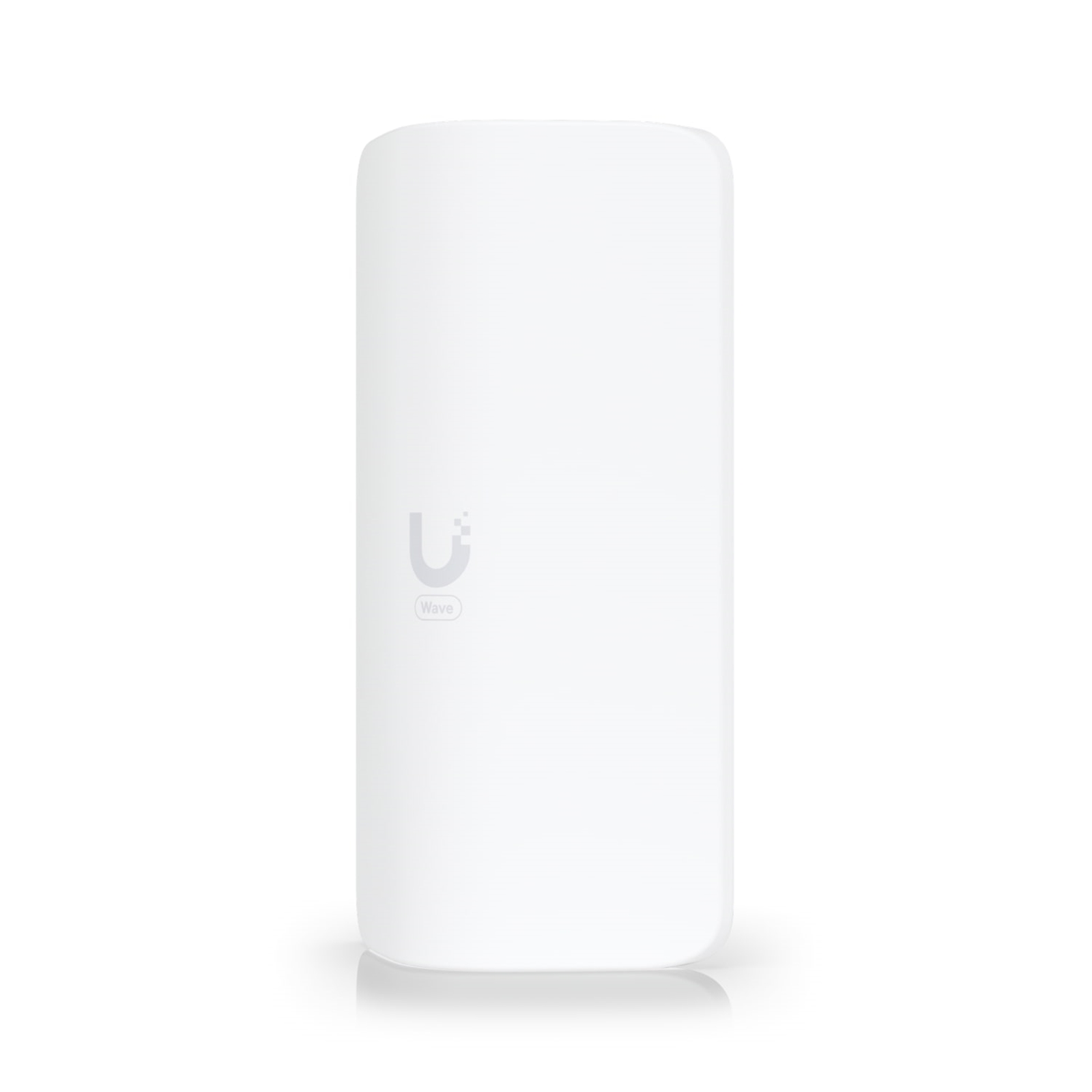

Ubiquiti UISP Wave-AP-Micro 60GHz PtMP Access Point
Experience the future of wireless networking with the groundbreaking Ubiquiti UISP Wave AP Micro. Engineered to deliver unparalleled performance and reliability, this 60GHz access point is designed to meet the demands of modern high-bandwidth applications, ensuring a seamless and lightning-fast wireless experience.
Ultra-Fast 60GHz Technology
Step into a new era of wireless connectivity with the power of 60GHz technology. The Ubiquiti UISP Wave AP Micro operates on the unlicensed 60GHz spectrum, providing unprecedented wireless speeds and low-latency connections. Enjoy lag-free streaming, gaming, and data transfers, all at multi-gigabit rates, revolutionising the way you interact with your network.
Compact and Discreet Design
Despite its powerful capabilities, the Ubiquiti UISP Wave AP Micro features a compact and unobtrusive design, making it the perfect fit for any space. Whether you're deploying it in an office, a home, or a public venue, its discreet appearance ensures seamless integration while delivering top-notch wireless performance.
High-Gain Antenna for Extended Coverage
The UISP Wave AP Micro is equipped with a high-gain antenna, optimised to deliver extended coverage and superior signal strength. Experience reliable wireless connectivity even in challenging environments and eliminate dead spots for an uninterrupted connection throughout your area of use.
Multi-User MIMO Technology
Maximise network efficiency with Multi-User Multiple-Input Multiple-Output (MU-MIMO) technology. The Ubiquiti UISP Wave AP Micro can serve multiple clients simultaneously, providing each device with its own dedicated data stream. This smart allocation of resources ensures all connected devices enjoy high-speed, low-latency connections, even in crowded networks.
Easy Plug-and-Play Deployment
Setting up the UISP Wave AP Micro is simple, with its straightforward plug-and-play installation, you can have your high-speed wireless network up and running in no time. No complex configurations required, thanks to the user-friendly Ubiquiti UISP platform that simplifies network management.
Enterprise-Grade Security
Protect your data and network from potential threats with enterprise-grade security features. The Ubiquiti UISP Wave AP Micro offers advanced encryption protocols, secure guest access, and network segmentation, ensuring your network remains safe and secure from unauthorised access.
Seamless Integration with UISP Platform
Enjoy centralised management and monitoring with the Ubiquiti UISP platform. Seamlessly integrate the UISP Wave AP Micro with other UISP devices, access detailed analytics, and customise network settings through the easy-to-use interface.
Specifications
Mechanical
Dimensions
284 x 156 x 76 mm (11.2 x 6.1 x 3")
Weight
1.3 kg (2.87 lb)
Enclosure materials
Aluminum alloy, UV stabilized polycarbonate
Mount materials
Stainless steel, UV stabilized polycarbonate
Pole mount diameter
35 to 60 mm (1.4 to 2.4") on pipe outer diameter
Wind loading
87 N at 200 km/h (20 lbf at 125 mph)
Weatherproofing
IPX6
Hardware
Processor
Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory
DDR3L 512 MB
Networking interface
(1) 1/2.5 GbE RJ45 port
Max. power consumption
24W
Power method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply
48V DC, 0.65A, 2.5 GbE PoE adapter (included)
Supported voltage range
44–54V DC
22–27V DC
GPS
Yes
Button
Factory reset
LEDs
Power, Ethernet, GPS, Link
Operating temperature
-40 to 60° C (-40 to 140° F)
Operating humidity
5 to 95% noncondensing
Certifications
FCC, IC, CE
Software
Operating mode
PtMP access point
Ubiquiti specific features
Wave AI, discovery protocol
Services
UISP, ping watchdog, NTP client, SNMP
Tools
Antenna alignment, discovery utility, ping, trace route, speed test
Network
Bridge mode
Application requirements
UISP web: Version 2.2.11 and later
UISP iOS: Version 2.25.1 and later
UISP Android: Version 2.27.5 and later
System
Total throughput
5 Gbps (2.5 Gbps duplex)
Supported clients count
15
Max. range
Connecting to a Wave Long-Range: up to 6 km
Connecting to a Wave Nano: up to 4 km
Encryption
WPA2-PSK (AES)
RF
Operating frequency
57–71 GHz
Channel bandwidth
2160, 1080 MHz
Operating channels
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
Modulation
16QAM, QPSK
Antenna gain
20 dBi
Polarization
Vertically linear
Beamwidth
Azimuth: 3 dB 90°
Elevation: 3 dB 7°
Electrical
downtilt 0°
Back-Up RF
WiFi standard
802.11ax (WiFi 6)
Operating frequency
US/CA
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide
5150 - 5875 MHz
Channel bandwidth
20, 40, 80 MHz
Modulation
BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)
Antenna gain
13.5 dBi
Polarization
Dual-linear
Beamwidth
Azimuth: 6 dB 90°
Elevation: 6 dB 25°
Cross-pol isolation
10 dB
Electric downtilt
0°
LEDs
Power
Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet
Flashing blue: Ethernet traffic detected
GPS
Blue: receiving at least(4) GPS satellite signal
Link
Blue: 60 GHz link
White: 5 GHz link
Box Contents
1x Wave-AP-Micro
1x Pole Mount kit
1x PoE Injector (POE-48-30w-2G-WH)
1x EU 48v Power Cable
1x UK 48v Power Cable
1x QSG
