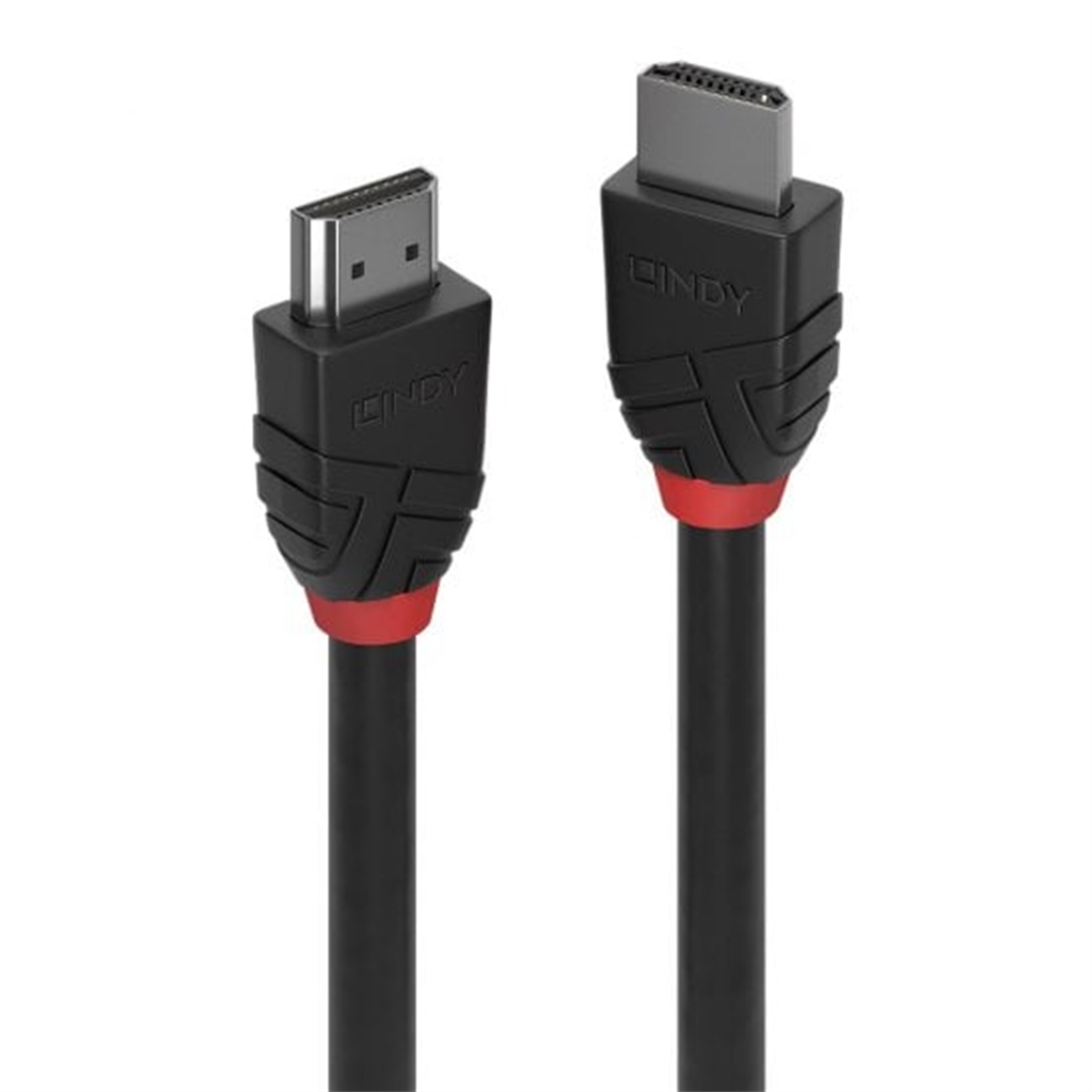

The Lindy 36771 is a 1-metre Ultra High Speed HDMI 2.1 cable from Lindy's "Black Line" series. It is an entry-level, high-resolution solution designed for home and small office use, supporting modern 8K and high-refresh-rate 4K content.
Features
ARC & eARC
Supports Enhanced Audio Return Channel for high-quality audio routing
HEC & CEC
Integrated HDMI Ethernet Channel and Consumer Electronics Control for device interoperability
3D Support
Full support for 3D video content
Corrosion Resistance
Gold-flashed contacts and copper-coated steel conductors provide reliable longevity in home environments
Key Specifications
Resolution & Refresh Rate
Supports resolutions up to 8K @ 60Hz (7680x4320) and 4K @ 120Hz (3840x2160)
Bandwidth
Provides a data transfer rate of 48Gbps, conforming to HDMI 2.1 standards
Audio Support
Capable of transmitting 32-channel audio, including high-fidelity formats like Dolby Atmos, DTS:X, and Dolby True HD
Construction
Connectors
Nickel connectors with gold-flashed contacts for signal reliability
Shielding
Triple-shielded 30AWG copper-coated steel conductors to resist corrosion and interference
Housing
Robust black PVC housing
Warranty
Typically comes with a 10-year manufacturer warranty
Specification
Standard
Ultra High Speed HDMI 2.1
Length
1.0 m (3.28 ft)
Bandwidth
48 Gbps
Max Resolutions
7680x4320@60Hz 4:4:4 10bit / 3840x2160@120Hz
Audio Support
32 Channel Audio, Dolby Atmos, DTS:X, Dolby True HD, DTS-HD Master Audio
Connector A & B
HDMI Type A Male
Connector Plating
Nickel with Gold-flashed contacts
Cable Jacket
PVC, 6.0 mm (0.24 in) diameter
Conductor Gauge
30 AWG
Conductor Material
Copper Coated Steel
Shielding
Triple Shielded (Aluminium Foil)
Min. Bend Radius
70 mm
Operating Temp
-10°C to 80°C (14°F - 176°F)
Certification
RoHS, REACH, UL
Warranty
10 Years
Warranty:
https://www.lindy.co.uk/returns-i36
Tel: 01642 754040 Fax: 01642 754049
Email: technical@lindy.co.uk
|
CERTIFICATION
|
| Certification |
RoHS & REACH UL |
FEATURES
|
| Certification |
RoHS & REACH UL |
| Cable length |
1 m |
| Cable type |
Round cable |
| Data transfer rate |
48 Gbit/s |
| Product colour |
Black |
| Connector material |
Aluminium |
| Supported graphics resolutions |
7680 x 4320 |
| HDMI version |
2.1 |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector contacts plating |
Copper |
| Maximum refresh rate |
120 Hz |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| AWG wire size |
30 |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Cable jacket material |
Nylon/Polyvinyl Chloride (PVC) |
| Quantity per pack |
1 pc(s) |
| Shield material |
Aluminium |
| RGB support |
4:4:4 |
| Contact material |
Phosphor copper |
| Colour sampling |
4:4:4 |
OPERATIONAL CONDITIONS
|
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating temperature (T-T) |
-10 - 80 °C |
PACKAGING DATA
|
| Package type |
Polybag |
| Quantity per pack |
1 pc(s) |
WEIGHT & DIMENSIONS
|
| Package type |
Polybag |
| Connector 1 dimensions (WxDxH) |
20 x 34.2 x 10.9 mm |
| Connector 2 dimensions (WxDxH) |
20 x 34.2 x 10.9 mm |
