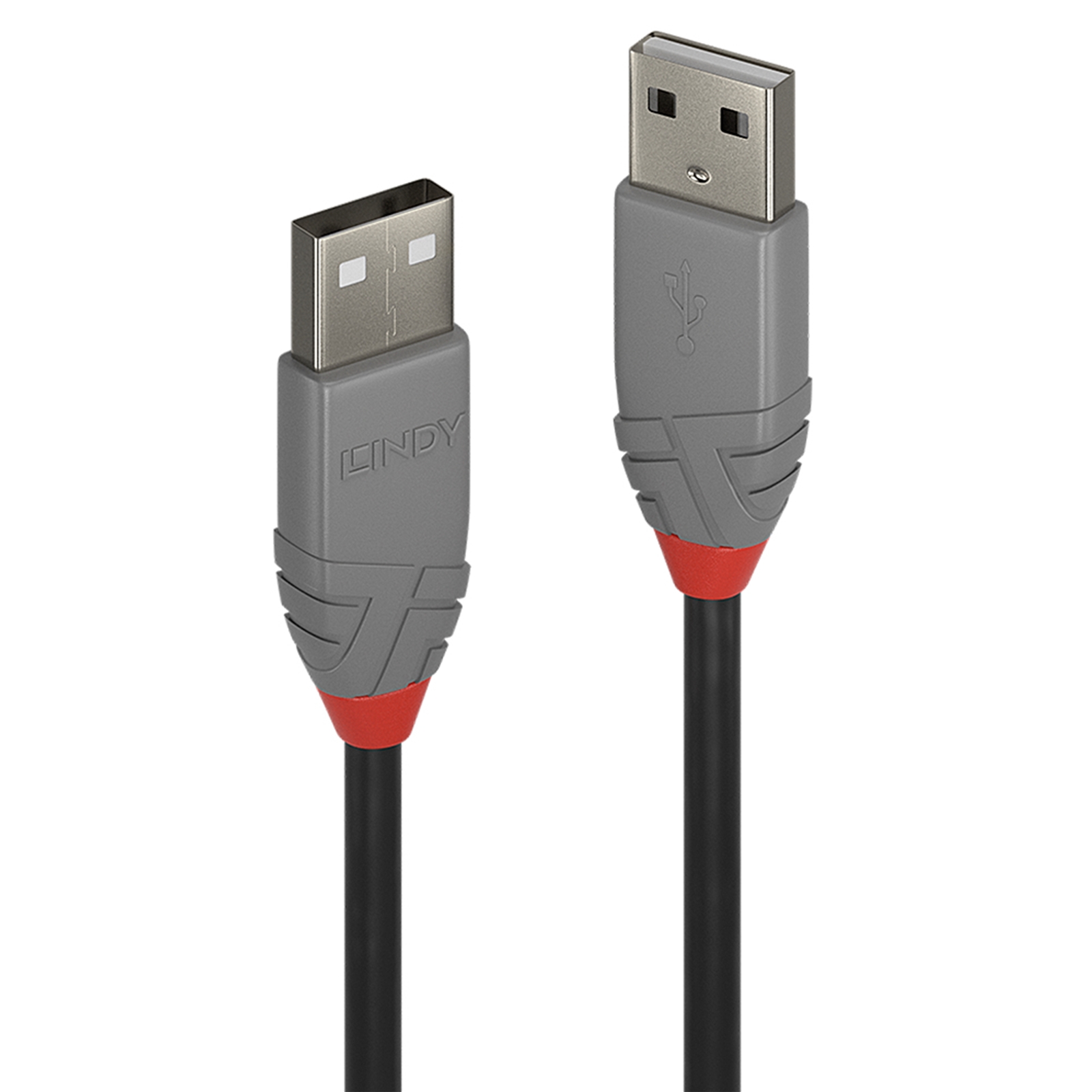

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to A cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A cables are available in lengths from 0.2m to 5m.

Specifications

Connectors

Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type A Male
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: Gold
Dimensions (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in)

Cable Construction

Length: 1m (3.28ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter : 4.4mm (0.17in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 26/28AWG
Shielding: Aluminium Magnesium Braid

Specifications

Supported Bandwidth: 480Mbps
Maximum Resolution: -
Nominal Attenuation: 5.8db/km
Minimum Bend Radius: 16mm (0.63in)
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: 0°C - 60°C (32°F - 140°F)
ATC Approved: -

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

Manufacturer's Website:

www.lindy.co.uk

Warranty:

2 Year Return To Base Warranty

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.

CERTIFICATION
Certification	REACH & UL
Compliance certificates	RoHS
FEATURES
Certification	REACH & UL
Maximum data transfer rate	480 Mbit/s
Cable length	1 m
Product colour	Black, Grey
Magnetically shielded	Yes
Maximum data transfer rate	0.48 Gbit/s
Connector 1	USB A
Connector 2	USB A
Connector contacts plating	Gold
USB version	USB 2.0
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	26/28
Connector 1 gender	Male
Connector 2 gender	Male
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
LOGISTICS DATA
Harmonized System (HS) code	84733080
OTHER FEATURES
Compliance certificates	RoHS
PACKAGING DATA
Package type	Polybag
SUSTAINABILITY
Sustainability certificates	RoHS
TECHNICAL DETAILS
Harmonized System (HS) code	84733080
Sustainability certificates	RoHS
Compliance certificates	RoHS
WEIGHT & DIMENSIONS
Cable length	1 m
