- Connects a USB 3.0 Type A computer to a Gigabit Ethernet network
- Supports 10/100/1000BASE-T, full and half duplex mode
- USB 3.1 Gen 1 / 3.0 SuperSpeed data transfer rates up to 5Gbps
- Bus-powered with no external power supply required
- 2 year warranty

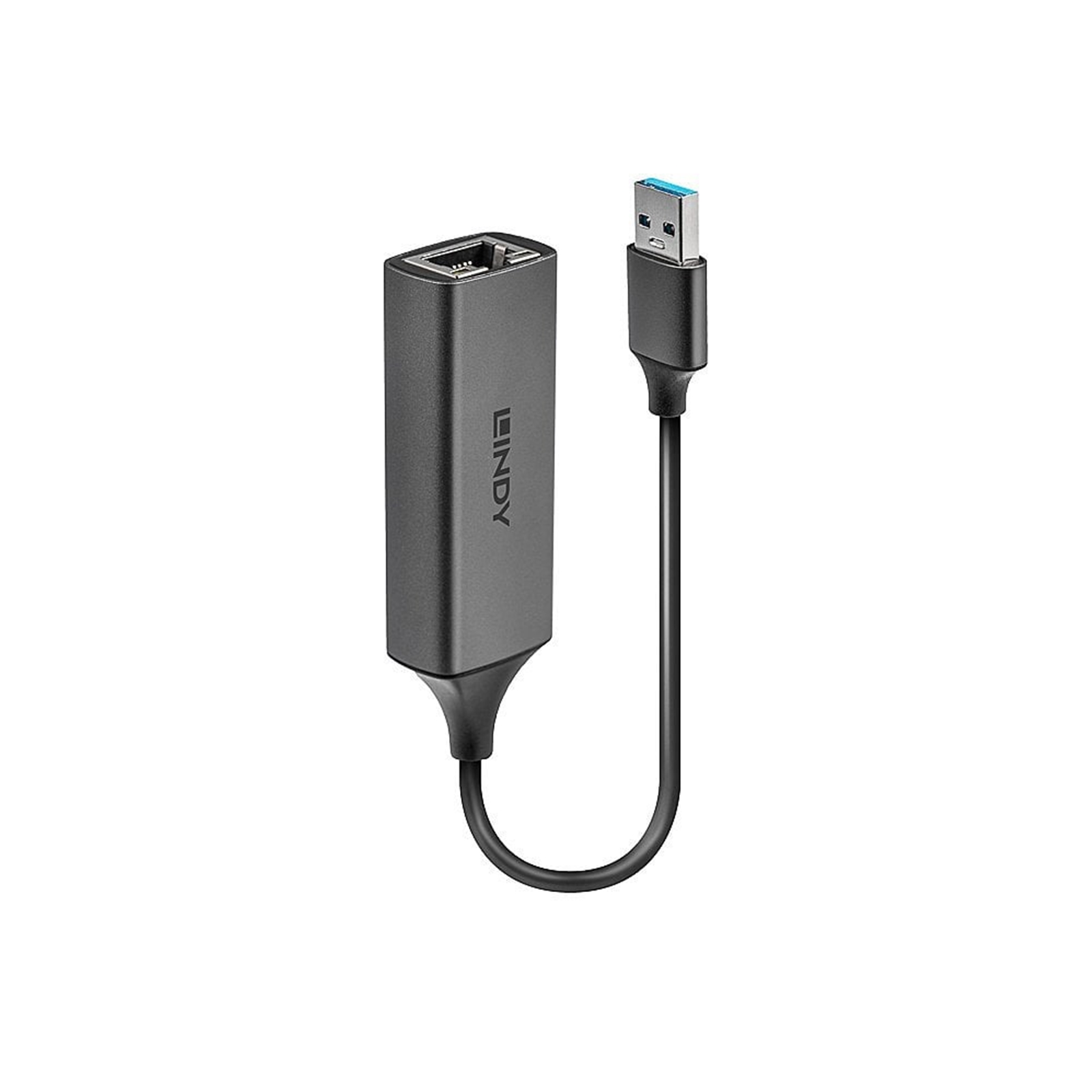

The Lindy USB 3.0 Gigabit Ethernet Converter allows users to conveniently connect a notebook or ultrabook to a Gigabit Ethernet network via a Type A USB port.
This converter is ideal for ultrabooks or notebooks which do not feature wired network connectivity and for locations which lack wireless connectivity or where it is unreliable or slow.
With its small size and lightweight design this USB 3.0 Gigabit Ethernet Converter is easy and convenient to carry, and because it is powered by the USB Bus no power adapter is required.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications
Interface: USB to RJ45
Interface Standard: USB 3.1 Gen 1 / 3.0, Gigabit LAN
Supported Bandwidth: 5Gbps, 10/100/1000Mbps
Chipset: RTL8153
Compatibility: USB Type A equipped computers
Power Delivery: -
Special Features: -
Connectors
Inputs: 1 x USB Type A (Male)
Outputs: 1 x RJ45 (Female)
Power: Bus-powered
Physical Properties
Dimensions WxDxH: 24x58x16mm (0.94x2.28x0.63in)
(Fixed) Cable Length: 135mm (5.31in)
Housing Material: Aluminium
Net Weight: 0.027kg (0.06lb)
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 0 - 80% RH (non-condensing)
Power Requirements: -
Colour: Silver
Miscellaneous
Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85x7.64in)
Gross Weight: 0.03kg (0.07lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Package Contents
USB 3.0 Gigabit Ethernet Converter
Warranty:
2 Year Return To Base Warranty
|
DESIGN
|
| Internal |
No |
| Certification |
CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Chipset |
Realtek RTL8153 |
| Product colour |
Silver |
| Compatible products |
USB Type A equipped computers |
| Component for |
PC/Laptop |
ENERGY MANAGEMENT
|
| USB powered |
Yes |
NETWORKING
|
| Maximum data transfer rate |
5000 Mbit/s |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 60 °C |
OTHER FEATURES
|
| Cable length |
0.135 m |
| Housing material |
Aluminium |
PACKAGING DATA
|
| Package weight |
30 g |
| Package depth |
174 mm |
| Package width |
194 mm |
| Package type |
Polybag |
PORTS & INTERFACES
|
| Interface |
Ethernet |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Host interface |
USB |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB connector form factor |
Straight |
WEIGHT & DIMENSIONS
|
| Weight |
27 g |
| Height |
16 mm |
| Width |
24 mm |
| Depth |
58 mm |
