- Simultaneous charging of up to 10 tablets, mobile phones and other USB devices
- Max. 2.4A charging per port, simultaneous use of all 10 ports allows max. 1.8A charging per port
- Smart charging function adjusts the current for optimum, safe charging
- Battery Charging Standard 1.2 supports fast charging & Apple Charging Protocol
- 2 year warranty

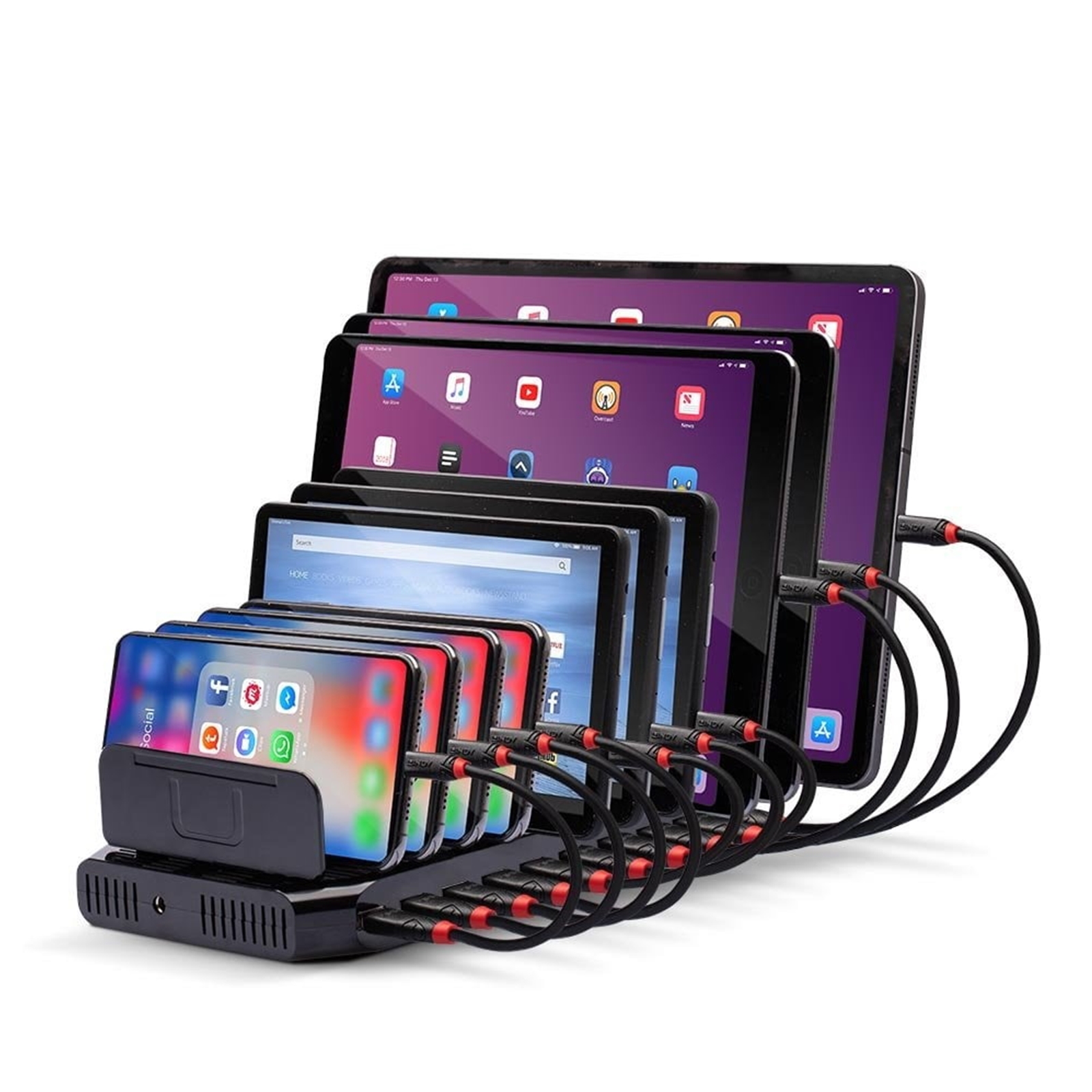

The Lindy 10 Port USB Charging Station allows charging up to 10 USB devices like tablets or smartphones. Each port can provide up to 5V 2.4A to satisfy the most power hungry devices. If all 10 ports are occupied, the maximum current is 1.8A per port. With its smart charging function, this USB Charging Station can recognise the connected device to automatically adjust the charging current for a fast and safe charge while also providing overcurrent protection to avoid excessive current damaging the device.
Plastic dividers can be assembled and stood on the top of the unit, which allows different widths for different tablets or mobile phone sizes. This product is perfect for use in schools, libraries, hotels, restaurants or any location that uses multiple devices. Country specific power cables are provided for seamless use of the charging station, ideal for global events or integration into installations abroad.
Specifications
Interface: USB
Compatibility: 10x USB Type A port for USB devices
Power Requirements: 12V 8A
Output Power: 5V 18A
Power Delivery: -
Special Features: BC 1.2, Smart Charging, Apple Charging Protocol
Connectors
Input: 10 x USB Type A (Female)
Physical Properties
Dimensions (approx.) WxDxH: 238x134x25mm (9.37x5.28x0.98in)
Connector Material: -
Housing Material: Plastic
Net Weight: 0.8kg (1.76lb)
Operating Temperature: 5°C - 35°C (41°F - 95°F)
Storage Temperature: -20°C - 50°C (-4°F - 122°F)
Humidity: 20% - 80% RH (non-Condensing)
Colour: Black
Miscellaneous
Packaging Type: Carton Box
Packaging Dimensions: 270x160x80mm (10.63x6.3x3.15in)
Gross Weight: 1.489kg (3.28lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, LVD, RoHS, REACH
Package Contents
USB Charging Station
11 plastic separators
12V 8A PSU with 5.5/2.5mm DC connector and 4 country specific power cables (EU/US/UK/AUS to IEC C5)
LINDY User Manual
Warranty:
2 Year Return To Base
|
FEATURES
|
| Type |
Freestanding |
| Special features |
BC 1.2, Smart Charging, Apple Charging Protocol |
| Certification |
CE, UKCA, FCC, LVD, RoHS, REACH |
| Compatibility |
With all USB Type A devices |
| Material |
Plastic |
| LED indicators |
Power |
| Product colour |
Black |
| Number of devices supported |
10 |
| Over voltage protection |
Y |
| Over voltage protection |
Yes |
| Number of compartments |
10 |
| Operating principle |
Contact |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating temperature (T-T) |
5 - 35 °C |
PACKAGING CONTENT
|
| Quantity |
1 |
| Manual |
Y |
| Manual |
Yes |
| Packaging content |
USB Charging Station
11 plastic separators
12V 8A PSU with 5.5/3.5mm DC connector and 4 country specific power cables (EU/US/UK/AUS to IEC C5) |
PACKAGING DATA
|
| Package weight |
1.49 kg |
| Package depth |
160 mm |
| Package height |
80 mm |
| Package width |
270 mm |
| Package type |
Box |
PORTS & INTERFACES
|
| USB A output ports |
10 |
POWER
|
| Input voltage |
12 V |
| Input current |
8 A |
| Output current |
18 A |
| Maximum output voltage |
5 V |
TECHNICAL DETAILS
|
| Master (outer) case GTIN (EAN/UPC) |
4002888733090 |
WEIGHT & DIMENSIONS
|
| Weight |
800 g |
| Height |
25 mm |
| Width |
238 mm |
| Depth |
134 mm |
