Target Components

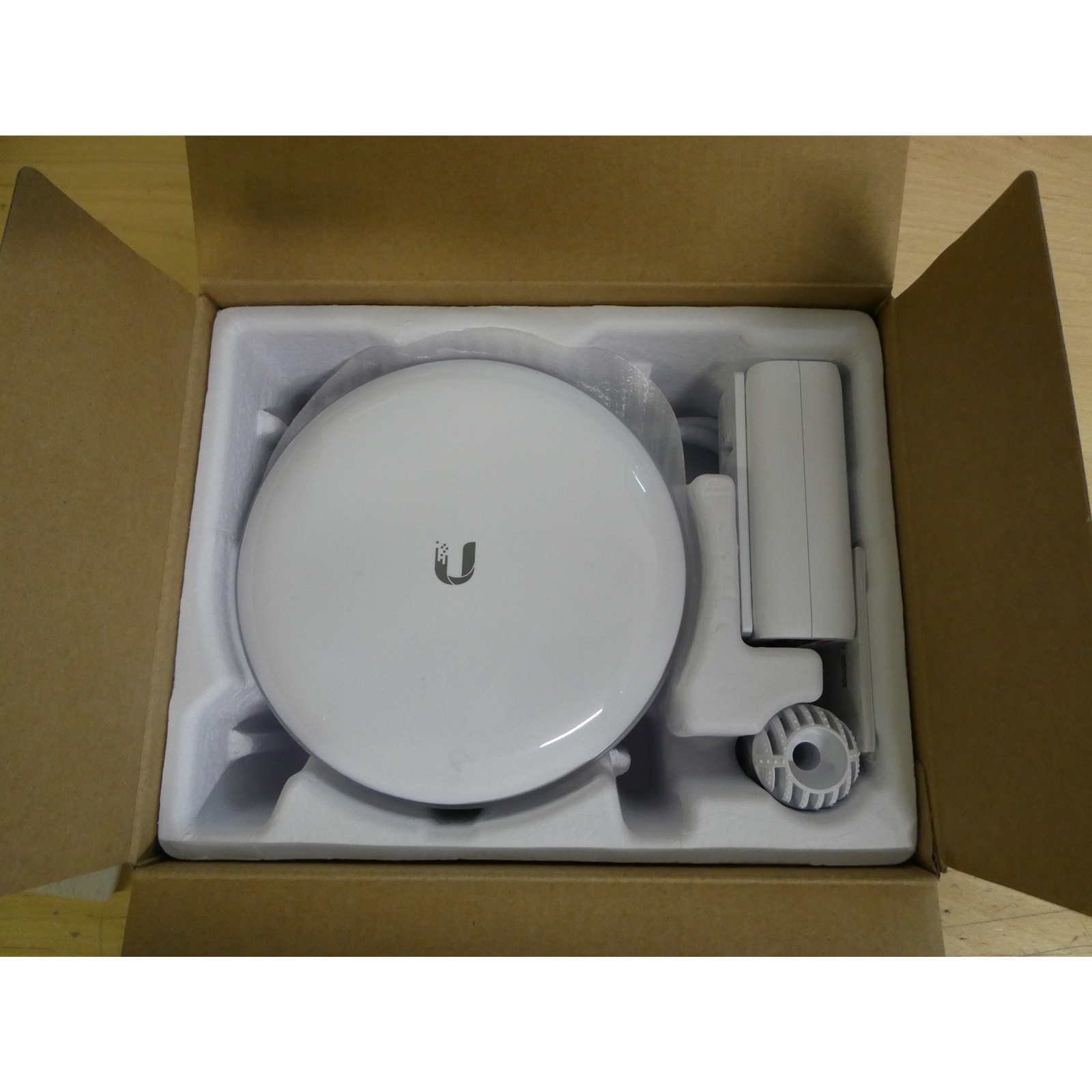

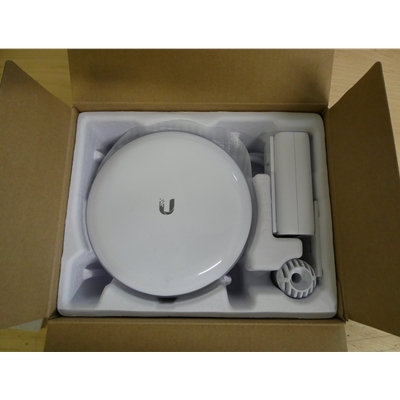

Open Box. Unused item.
please note the packaging is damaged and may exhibit minor tears, creases or marks.

All Graded and Refurbished products (0-Stock) carry a 90-day Dead On Arrival Warranty (rest of existing warranty if supplied as an RMA replacement).

0-stock will be as original product description. Please be aware that these products are likely to be incomplete and missing drivers, cables, manuals, packaging etc. Chassis and other peripherals may be missing screw-packs, blanking plates, and may also have cosmetic damage in the form of scratches, small dents, damage to original outer carton or retail box etc.

The price of these items has been reduced to reflect this. Drivers and manuals can usually be downloaded from the manufacturers website.

60 GHz PtP link using 802.11ad with 5 GHz radio for backup. Ideal for high-throughput connectivity with a range of up to 500 m.

1.7+ Gbps bi-directional Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Controller Management, and range of up to 500 m

UniFi Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi Controller makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.

Package Contents:

UniFi Building-to-Building Bridge (x2)
Ball joint mount (x2)
Lock ring (x2)
Metal strap (x2)
Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
Power cord (x2)

Easily Adjust for Best Signal Using LED
Use the LED indicator to adjust the UBB position for optimal signal to the other bridge device.

Easy to Set Up
The UniFi Building-to-Building Bridge integration with the UniFi Controller makes bridging two networks seamless.

Specifications

Dimensions
140 x 140 x 90 mm (5.51 x 5.51 x 3.54")

Weight
376 g (13.3 oz)

GPS
Yes

Max TX Power
25 dBm (5 GHz)

Interfaces
(1) 10/100/1000 Ethernet Port
Bluetooth

Enclosure
UV-Resistant Polycarbonate

Power Method
802.3af Supported
Passive Power over Ethernet (48V)

Power Supply
UniFi PoE Switch
48V, 0.32A Gigabit PoE Adapter (Included)

Max Power Consumption
11W

Wind Loading
56 N @ 200 km/h (12.6 lbf @ 125 mph)

Wind Survivability
200 km/h (125 mph)

Mounting
Pole-Mount (Kit Included)
Wall-Mount (Not Included)

ESD/EMP Protection
24kV Contact/Air

Operating Temperature
-40 to 70 C (-40 to 158 F)

Operating Humidity
5 to 95% Noncondensing

Certifications
CE, FCC, IC
