New Product.
Open Box, complete, checked OK.
The item will ship in original retail packaging.
Complete with Full Manufacturer Warranty.
All Open Box products (0-Stock) also carry a 90-day Dead On Arrival Warranty with Target.
PRODUCT DETAILS

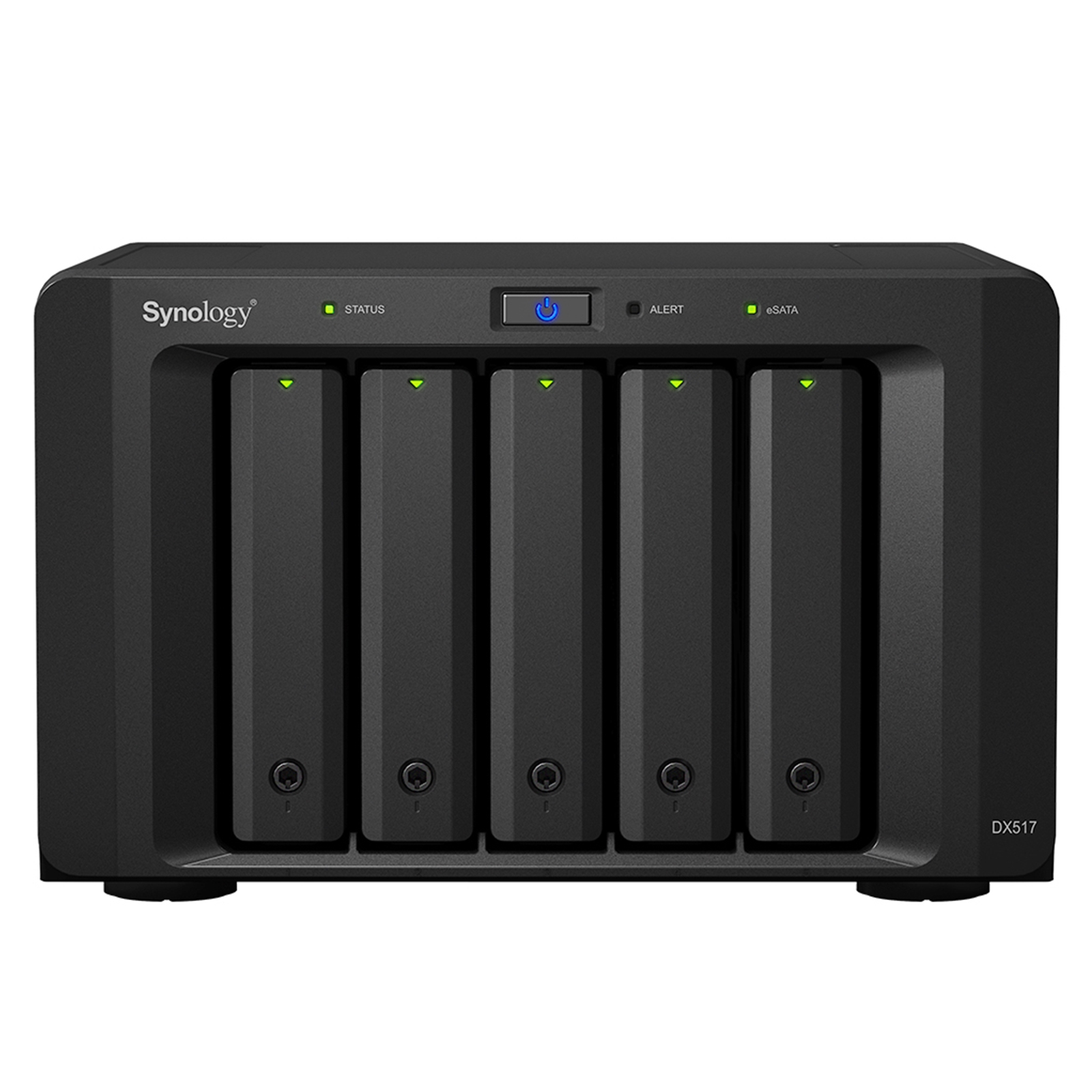

5-bay 3.5"/2.5" SATA expansion
Easily add 5 additional drive bays to Synology DiskStation. Supporting both 2.5" and 3.5" SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Online volume expansion
Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.
Hot-swappable drive tray design
The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.
Dedicated local backup solution
Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.
Specifications
Applied Models
Supports creating volumes across different units
23 series:DS923+
22 series:DS1522+
21 series:DS1821+, DS1621xs+, DS1621+, DVA3221
20 series:DS1520+, DS920+, DS720+
19 series:DS1819+, DS1019+, DVA3219
18 series:DS1618+, DS918+, DS718+, NVR1218
17 series:DS1817+, DS1817, DS1517+, DS1517
16 series:DS916+, DS716+, DS716+II
15 series:DS1815+, DS1515+, DS1515
Supports creating volumes on a single unit only
18 series:DS218+
16 series:DS216+, DS216+II, NVR216
15 series:DS415+
Drive Bays
5
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Maximum Internal Raw Capacity
80 TB (16 TB drive x 5) (Capacity may vary by RAID types)
RAID Management through Synology
DSM
eSATA Port
1
Size (Height x Width x Depth)
157 mm x 248 mm x 233 mm
Weight
3.91 kg
Power Recovery
Synchronized with the Synology DiskStation
Power Supply Unit / Adapter
200 W
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
29.9 W (Access)
2.4 W (HDD Hibernation)
British Thermal Unit
102.02 BTU/hr (Access)
8.19 BTU/hr (HDD Hibernation)
Operating Temperature
5°C to 40°C (40°F to 104°F)
Storage Temperature
-10°C to 70°C (15°F to 155°F)
Relative Humidity
5% to 95% RH
System Fan
80 mm x 80 mm x 2 pcs
Noise Level
21.5 dB(A)
Certification
FCC
CE
BSMI
Warranty
3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus
Environmental Compliance
RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
Expansion Cable: eSATA X 1
Warranty:
Synology Warranty Information: NAS Range- RS / DX / DS (inc XS range) 3 Year Warranty. DS / DX (excluding XS and XS+ range) 2 Year Warranty. First Year Return To Base Remaining Warranty With Synology
There are currently no data sheets available for this product.
