Used Product
Please note used products might exhibit minor wear or cosmetic imperfections consistent with prior use. These imperfections could include small scratches, small dents, or worn corners. Additionally, the retail packaging may show signs of damage, such as creases, and there might be residue from shipping labels.
All Graded and Refurbished products (0-Stock) carry a 90-day Dead On Arrival Warranty (rest of existing warranty if supplied as an RMA replacement).
0-stock will be as original product description. Please be aware that these products are likely to be incomplete and missing drivers, cables, manuals, packaging etc. Chassis and other peripherals may be missing screw-packs, blanking plates, and may also have cosmetic damage in the form of scratches, small dents, damage to original outer carton or retail box etc.
The price of these items has been reduced to reflect this. Drivers and manuals can usually be downloaded from the manufacturers website.

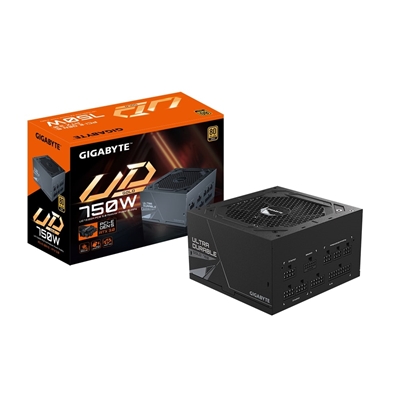

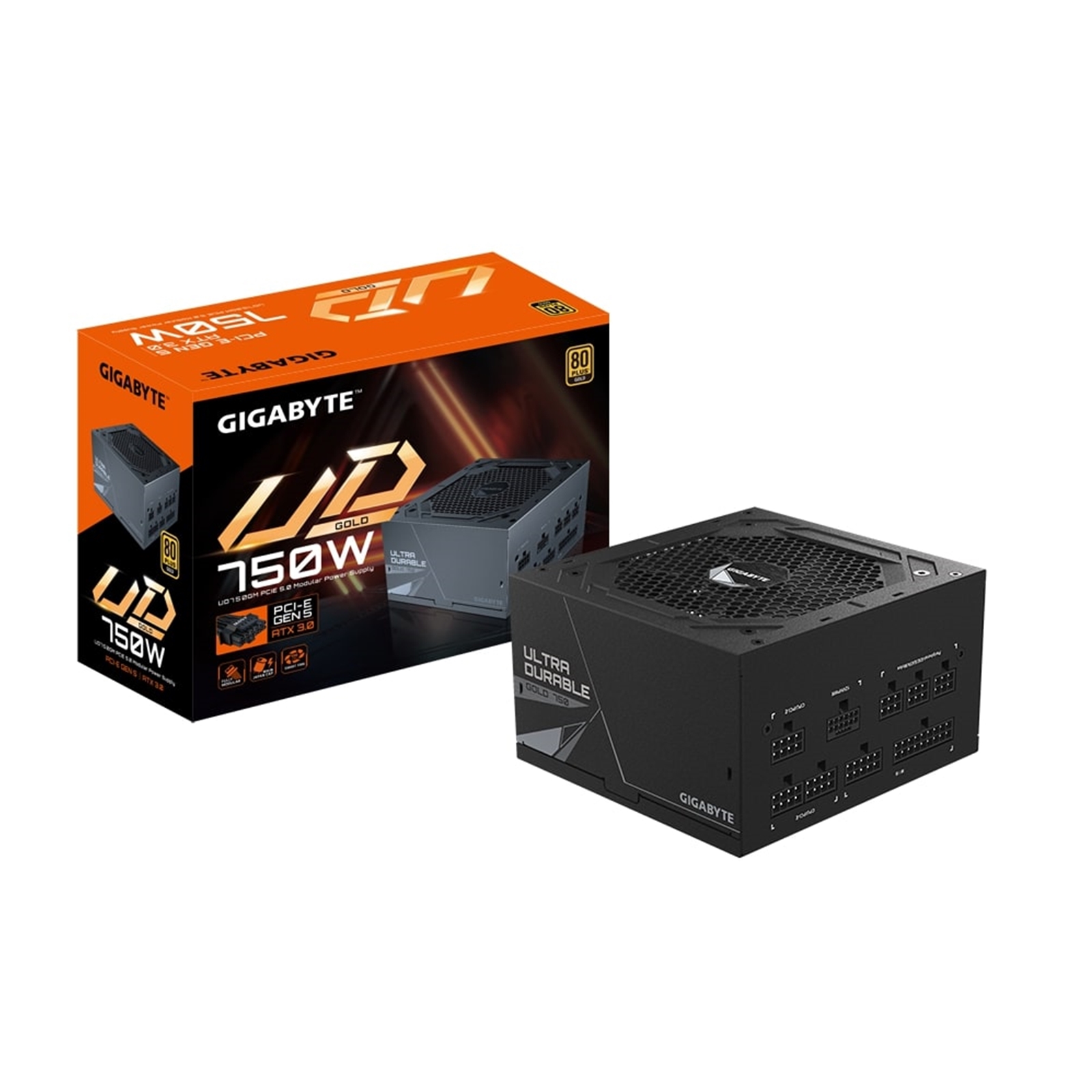

The Gigabyte GP-UD750GM PG5 is a high-performance power supply unit designed to meet the needs of modern PC builds. It features a fully modular design, 80 PLUS Gold certification, and support for PCIe Gen 5.0 graphics cards, making it ideal for high-end gaming and professional applications.
Key Features
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact design
5 years warranty (Adjusted according to different regions)
Specifications
Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6A
Input Frequency
60-50 Hz
Output Capacity
750W
Fan Type
120mm smart hydraulic bearing (HYB) fan
Efficiency
90% at typical load
MTBF
100,000 hours
Protection
OVP, OPP, SCP, UVP, OCP, OTP
Certifications
80 PLUS Gold
Dimensions
150 x 140 x 86 mm
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1: 610 mm x 1
CPU/EPS 4+4 Pin x 2: 600 mm + 200mm x 1
PCIe 16 Pin x 1: 700 mm x 1
PCIe 6+2 Pin x 4: 600 mm + 150 mm x 2
SATA x 8:
600 mm +150 mm +150 mm +150 mm x 2
4 Pin Peripheral x 3+4-Pin floppy x 1: 500 mm +120 mm +120 mm +150mm x 1
Warranty:
All Graded and Refurbished products (0-Stock) carry a 90-day Dead On Arrival Warranty (rest of existing warranty if supplied as an RMA replacement).
There are currently no data sheets available for this product.
