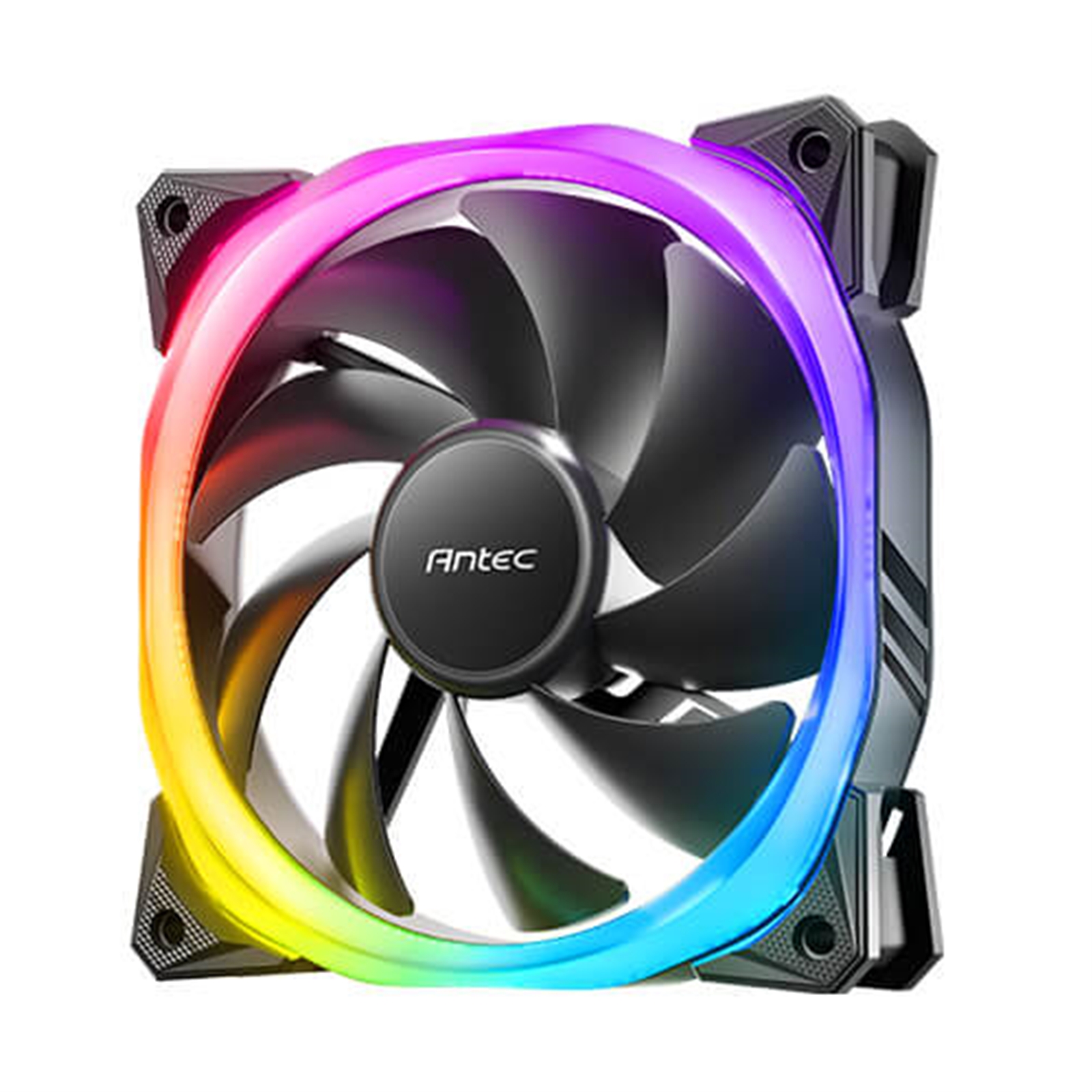

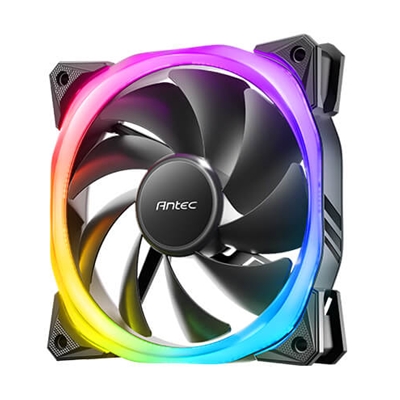

Fusion 120mm ARGB Fan Single
Create Your Charisma
The brand-new Fusion 120 ARGB case fan features a unique dodecagon-shaped lighting ring with 16 LEDs & a hydraulic bearing fan. It will bring you an unforgettable experience visually and functionally.
Unique Multilateral Shaped Lighting Frame Projects, Various Lighting Effects
The unique dodecagon-shaped lighting ring with 16 LEDs projects various lighting effects from many angles.
Advance Dual-Layer Design with Crystal Layer and Frosty Layers.
Wonderful Texture
The well-processed fan structure and unique shape of fine craftsmanship bring the fan quality to the next level.
Compatible with the Motherboard
2 Individual Cable
Durable Woven Wire
The cable is covered with durable woven wire to enhance the lifetime & create unique aesthetics.
4-Pin PWM Connector
Connect to the motherboard (50cm)
3-Pin ARGB Connector
Connect to the motherboard for the ARGB Sync (50cm)
8 Enlarged Anti-Vibration Pads
The anti-noise design with 8 anti-vibration pads can efficiently reduce noise.
Hydraulic Bearing Fan
Extends the lifespan and reduces the noise.
ARGB/PWM Controller
FAN: PWM Port (4pin)
LED: ARGB port (3pin)
DC-IN: SATA Power Connector
LED CTRL: External LED Connector (Connect to the reset button of the chassis to turn it into LED control)
LED SPEED: Control the speed of lighting effects (Low/Mid/High)
PWM LED: External Signal Connector (Connect to the Motherboard for ARGB & PWM functions)
MODE: Switch the lighting effects
Specifications
Model Name
Fusion 120 ARGB
Fan Type
PWM Fan
Dimensions
120 x 120 x 25 mm
Bearing Type
Hydraulic Bearing
LED Type
Addressable RGB
Fan Speed
600±200~2000±10% RPM
Airflow
57.93 CFM (max.)
Air Pressure
2.11 mmH2O (max.)
Fan Noise Level
17.02~31.24 dB(A)
Lifespan
40,000 hours /hrs 25°c
Connector
FAN: 4-pin PWM | LED: 3-pin
Rated Voltage
FAN: DC 12 V | LED: DC 5 V
Operation Voltage
FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
Rated Current
FAN : = 0.21 A | LED : = 0.58 A
Warranty
2 Years
Warranty:
2 Year Return To Base Warranty
|
DESIGN
|
| Product colour |
Black |
| Fan connector |
3-pin |
| Illumination LED |
Yes |
| Number of fan blades |
9 |
| LED connector type |
4-pin |
ENERGY MANAGEMENT
|
| Fan voltage |
12 V |
| Fan current |
0.21 A |
| Rated voltage |
12 V |
| LED voltage |
5 V |
OTHER FEATURES
|
| Fan rated voltage |
6 - 13.8 V |
PERFORMANCE
|
| Type |
Fan |
| Suitable location |
Computer case |
| Maximum airflow |
57.93 cfm |
| Maximum air pressure |
2.11 mmH2O |
| Noise level (low speed) |
17.02 dB |
| Noise level (high speed) |
31.24 dB |
| Rotational speed (max) |
2000 RPM |
| Rotational speed (min) |
600 RPM |
| Bearing type |
Hydraulic |
| Quantity per pack |
1 pc(s) |
| Pulse-width modulation (PWM) support |
Yes |
| Fan's mean time to failure (MTTF) |
40000 h |
WEIGHT & DIMENSIONS
|
| Fan dimensions (W x D x H) |
120 x 25 x 120 mm |
