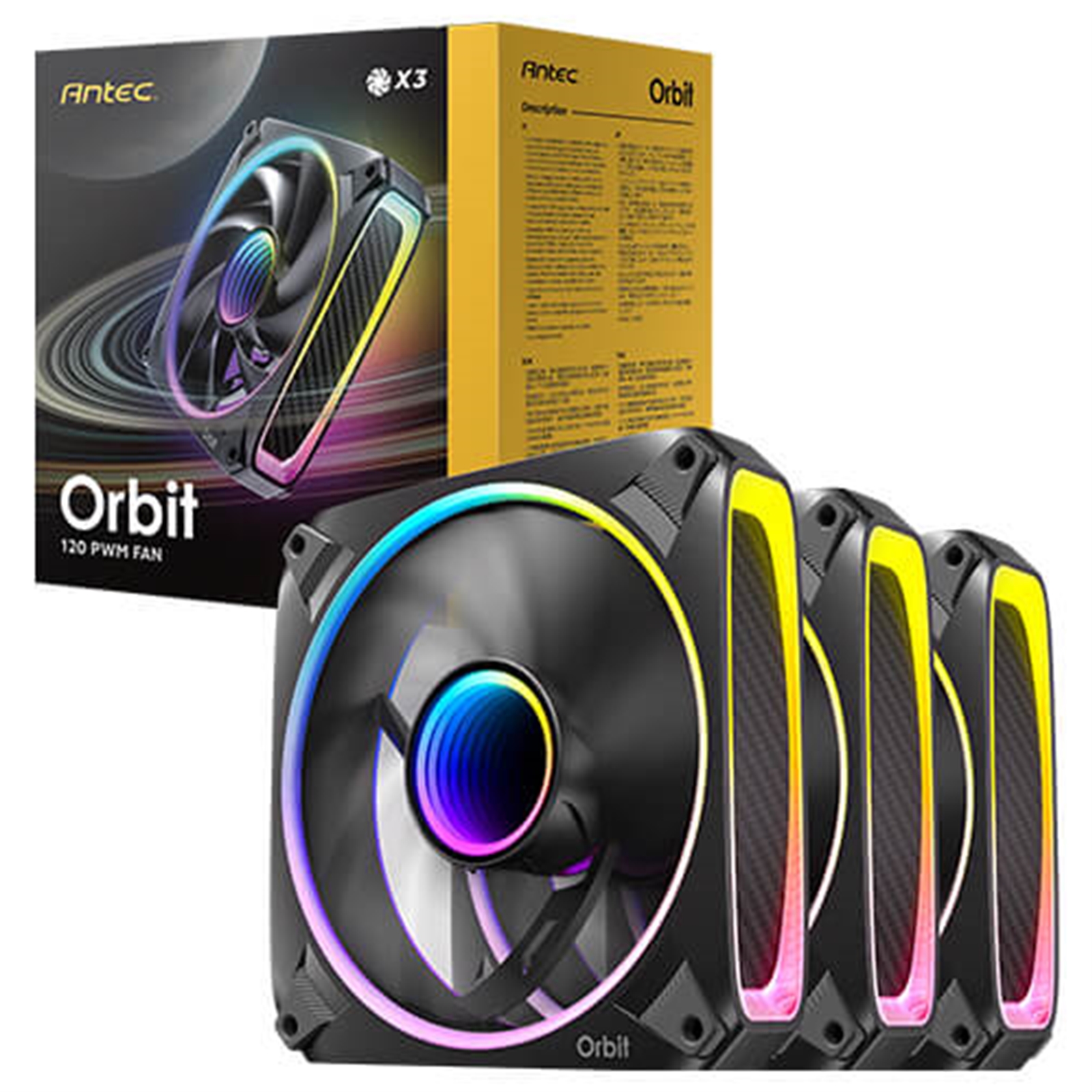

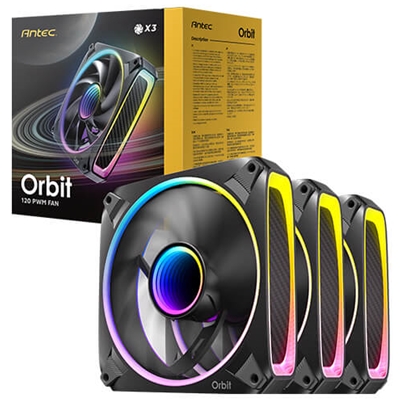

Antec Orbit 120 ARGB FAN - 3 Pack

Extreme Lighting Effects
The front and rear covers of the fan feature a curved surface design. Combined with the infinity mirror effect at the center of the blades, it evokes the image of a miniature interstellar portal like a wormhole.

Intelligent PWM Control
With intelligent fan control, the system ensures optimal cooling under high loads and complete silence at low loads. When PWM duty cycle drops below 6% in standby mode, the fan automatically stops through chip-based regulation, achieving ultra-silent operation.

28mm Thickness for Enhanced Performance
Increasing the thickness to 28mm widens the contact surface and increases the air inlet area between the fan and the chassis, delivering improved airflow.

9 Fan Blade design
The 9-blade design increases airflow, providing better cooling performance.

Fluid Dynamic Bearing for Longer Life and Reduced Noise
FDB bearing achieves optimal longevity while also enhancing anti-vibration, ensuring quieter and more stable operation.

Vibration-Absorbing & Anti-Noise Pads
Equipped with 8 rubber pads, effectively absorbing vibrations and minimizing noise. Also features diagonal patterns, ensuring a cohesive overall design.

SPECIFICATIONS

Fan

Model Name
Orbit 120 ARGB

Fan Type
ARGB Fan

Dimensions
120x120x28 mm

Bearing Type
FDB

Fan Speed
200-2000 ±10% RPM

Airflow
0.48-66.72±5% CFM

Air Pressure
0.02-2.06±5% mmH2O

Fan Noise Level
18-31±5% dB(A)

Lifespan
50,000 hours / 40?

Connector
FAN: 4-pin | LED: 3-pin

Rated Voltage
FAN: DC 12 V | LED: DC 5 V

Operation Voltage
FAN: DC 6.0-13.2 V | LED: DC 3.7-5.5 V
Rated Current FAN: 0.35 A | LED: 1 A

Warranty
3 years
