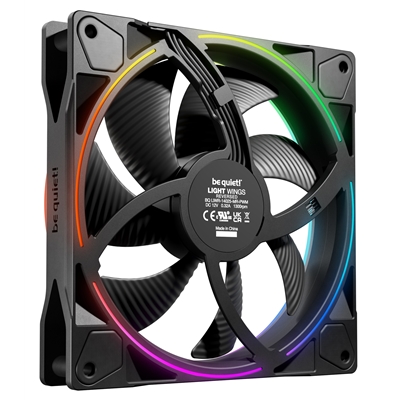

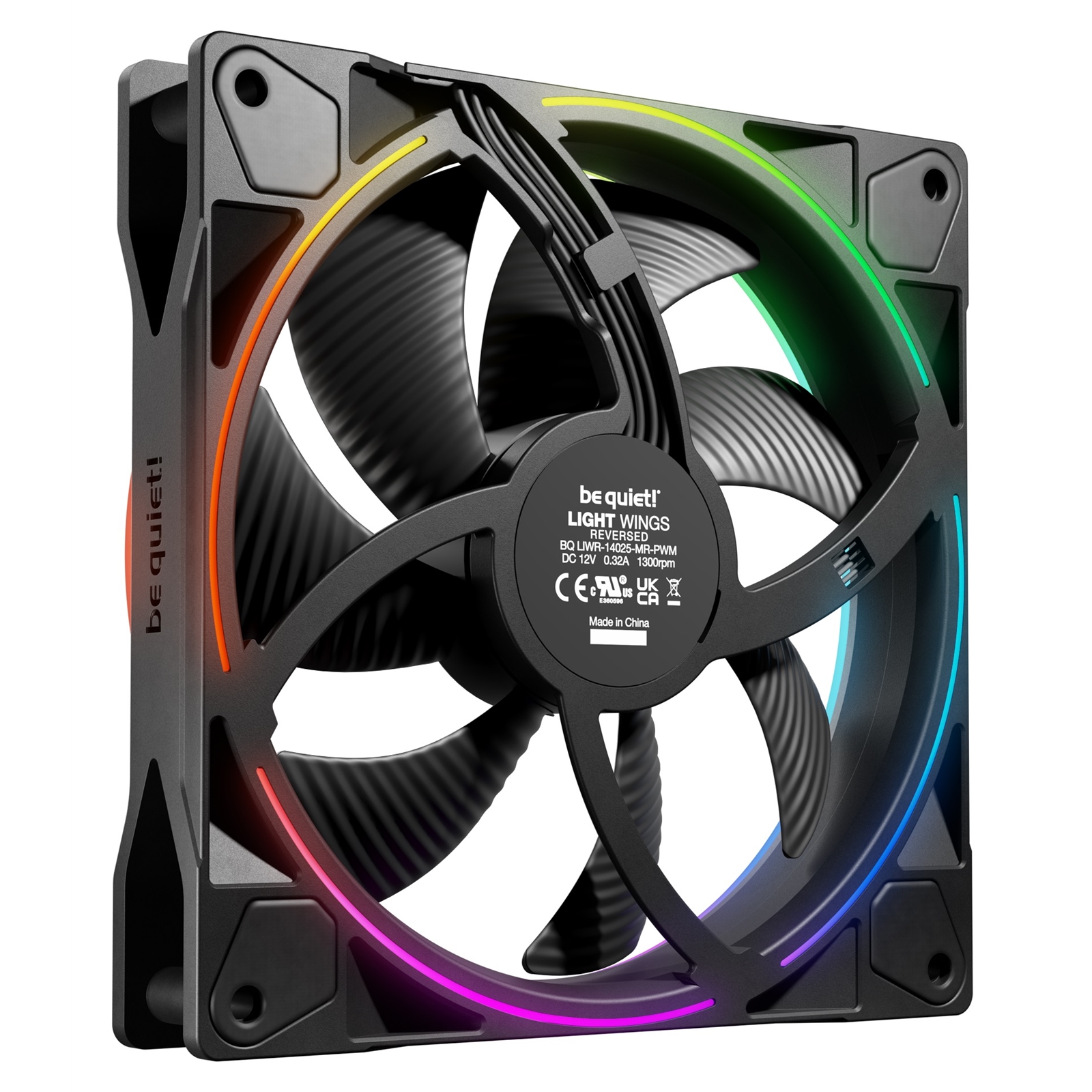

be quiet! Light Wings LX 120mm PWM Reverse Black (BL134)
Key Features
Reversed Blade Design: Optimized for side or bottom intake, ensuring efficient airflow into the case without obstructing visual aesthetics.
ARGB Lighting: 16 individually addressable LEDs offer vivid and customizable lighting effects, ideal for RGB-themed builds.
Quiet Operation: Advanced rifle bearing and aerodynamic fan blade design ensure low noise levels even at high RPMs.
PWM Control: Enables dynamic speed regulation via motherboard software to balance cooling and acoustics.
Daisy-Chaining Support: Simplifies cable management and allows synchronized lighting across multiple fans.
Full Specifications
Model Number:
BL134
Dimensions:
120 x 120 x 25 mm
Fan Speed:
Up to 1,500 RPM
Airflow:
Up to 58.9 CFM (100 m³/h)
Static Pressure:
2.31 mm H2O
Noise Level:
Up to 28.5 dB(A)
Bearing Type:
Rifle Bearing
Lifespan:
Up to 60,000 hours
Voltage Range:
5V – 13.2V
Rated Voltage:
12V
Input Power:
2.4W
Input Current:
0.20A
Fan Connector:
4-pin PWM
Lighting Connector:
3-pin 5V ARGB
Number of LEDs:
16 ARGB LEDs
Cable Length:
500 mm
Warranty:
3 Years
Certifications:
CE, RoHS, UKCA, WEEE
Package Includes
1x 120mm PWM Reverse Fan, Mounting Screws, ARGB Cables
Warranty:
3 Year Return To Base Warranty
There are currently no data sheets available for this product.
