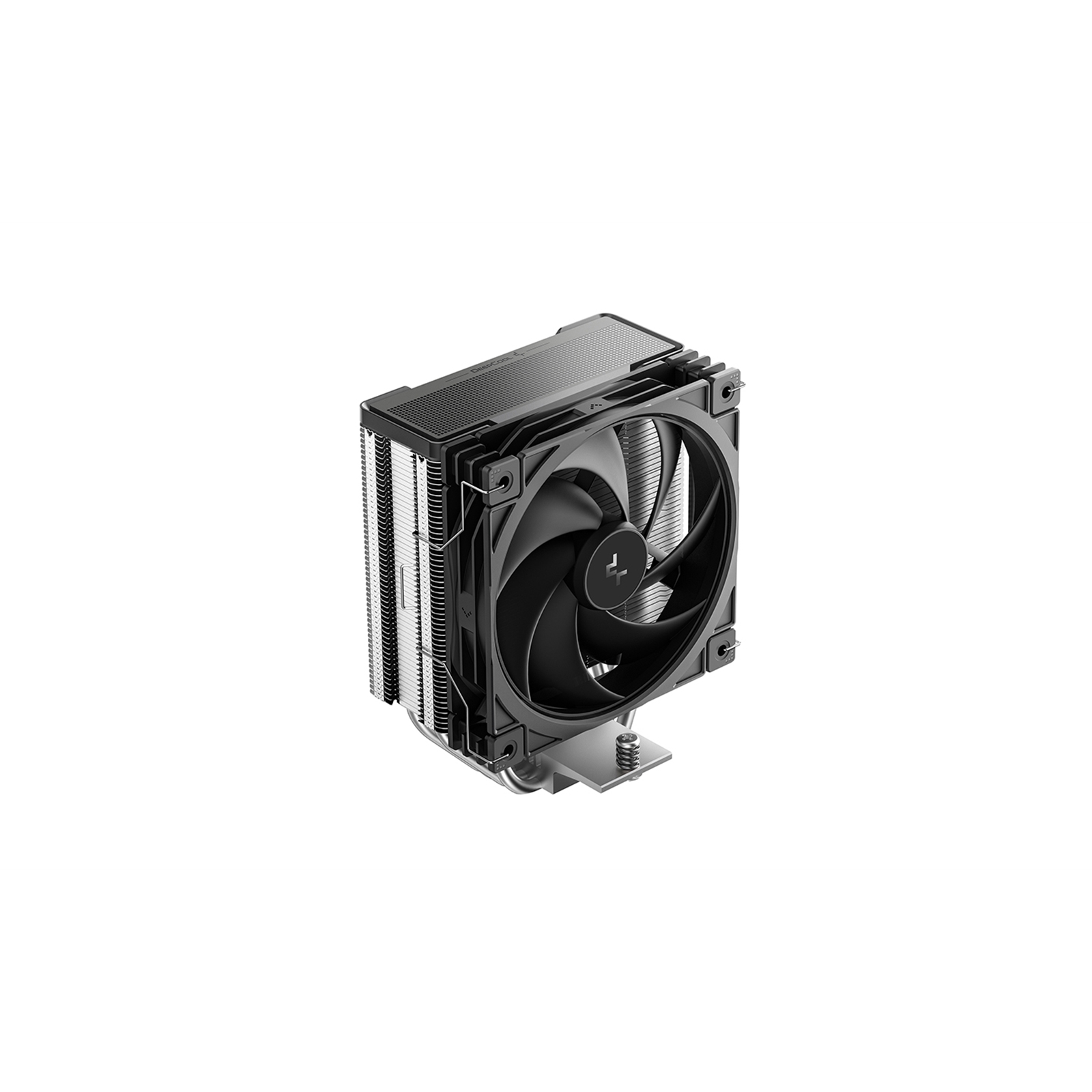

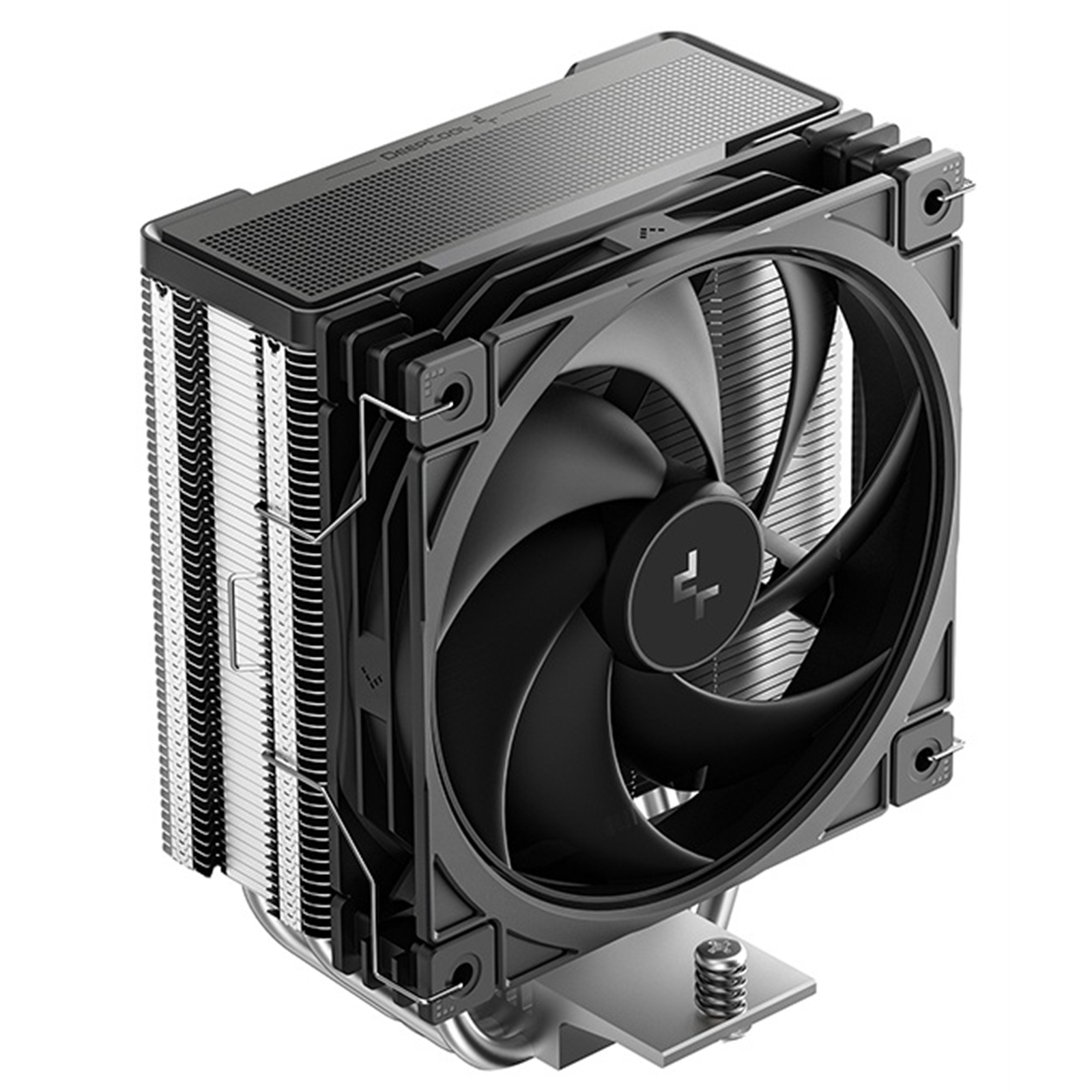

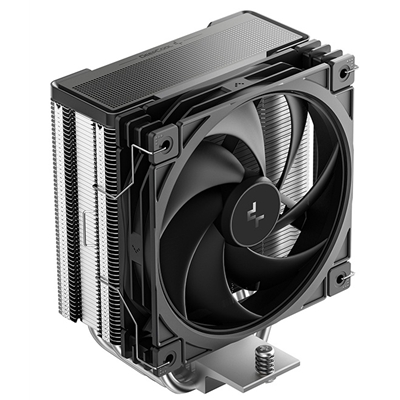

DeepCool AD400 G2 Single Tower Air Cooling
The AG400 G2 raises the bar for single-tower air cooling with a second-generation upgrade that delivers enhanced performance and a bold new look. Featuring four heat pipes embedded in a dense single-tower heatsink and paired with a finely tuned 120mm PWM fan for seriously powerful airflow and thermal transfer.
NEXT GENERATION PERFORMANCE
With an optimized tower layout and four direct-contact heat pipes for rapid heat transfer, the AG400 G2 delivers stronger cooling performance than its predecessor.
STYLED TO IMPRESS
The AG400 G2 retains the signature matrix fin stack style while introducing a refined top-cover decoration for premium presence. It carries over the trusted four heat-pipe single-tower architecture and replaces RGB lighting with minimalist design for a sleek and serious look.
COOL, QUIET,AND POWERFUL
Outfitted with all-new semi-integral blade fan designed for optimal balance in top performance under load to silent efficiency when idle. This innovative setup optimizes airflow and static pressure while dramatically reducing noise.
SIMPLE AND SECURE INSTALLATION
The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
Specifications
Product Dimensions
125x92x152 mm(LxWxH)
Heatsink Dimensions
120x92x150 mm(LxWxH)
Net Weight
631 g
Heatpipe
Ø6 mm×4 pcs
Fan Dimensions
120x120x25 mm(LxWxH)
Fan Speed
500~2200±10% RPM
Fan Motor
1-phase,4-slot,4-pole
Fan Airflow
70.09 CFM
Fan Air Pressure
2.49 mmAq
Fan Noise
=29.22 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Hydro Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.18 A
Fan Power Consumption
2.16 W
EAN
6933412730026
P/N
R-AG400-BKNPMG2-G
Warranty:
2 Year Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
|
DESIGN
|
| Product colour |
Black |
| Fan connector |
4-pin |
| Number of heat pipes |
4 |
| Number of fan blades |
7 |
ENERGY MANAGEMENT
|
| Fan voltage |
12 V |
| Fan current |
0.18 A |
| Fan power consumption |
2.16 W |
PACKAGING CONTENT
|
| Package type |
Box |
| Screws included |
Yes |
| Thermal pad included |
Yes |
| CPU bracket(s) |
Yes |
| Adapter frame included |
Yes |
PERFORMANCE
|
| Type |
Air cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1851, LGA 1700, Socket AM4, Socket AM5 |
| Suitable location |
Processor |
| Maximum airflow |
70.09 cfm |
| Maximum air pressure |
2.49 mmH2O |
| Noise level (high speed) |
29.22 dB |
| Rotational speed (max) |
2200 RPM |
| Rotational speed (min) |
500 RPM |
| Bearing type |
Hydraulic |
WEIGHT & DIMENSIONS
|
| Weight |
631 g |
| Height |
152 mm |
| Width |
92 mm |
| Depth |
125 mm |
| Heat pipes diameter |
6 mm |
| Fan dimensions (W x D x H) |
120 x 25 x 120 mm |
