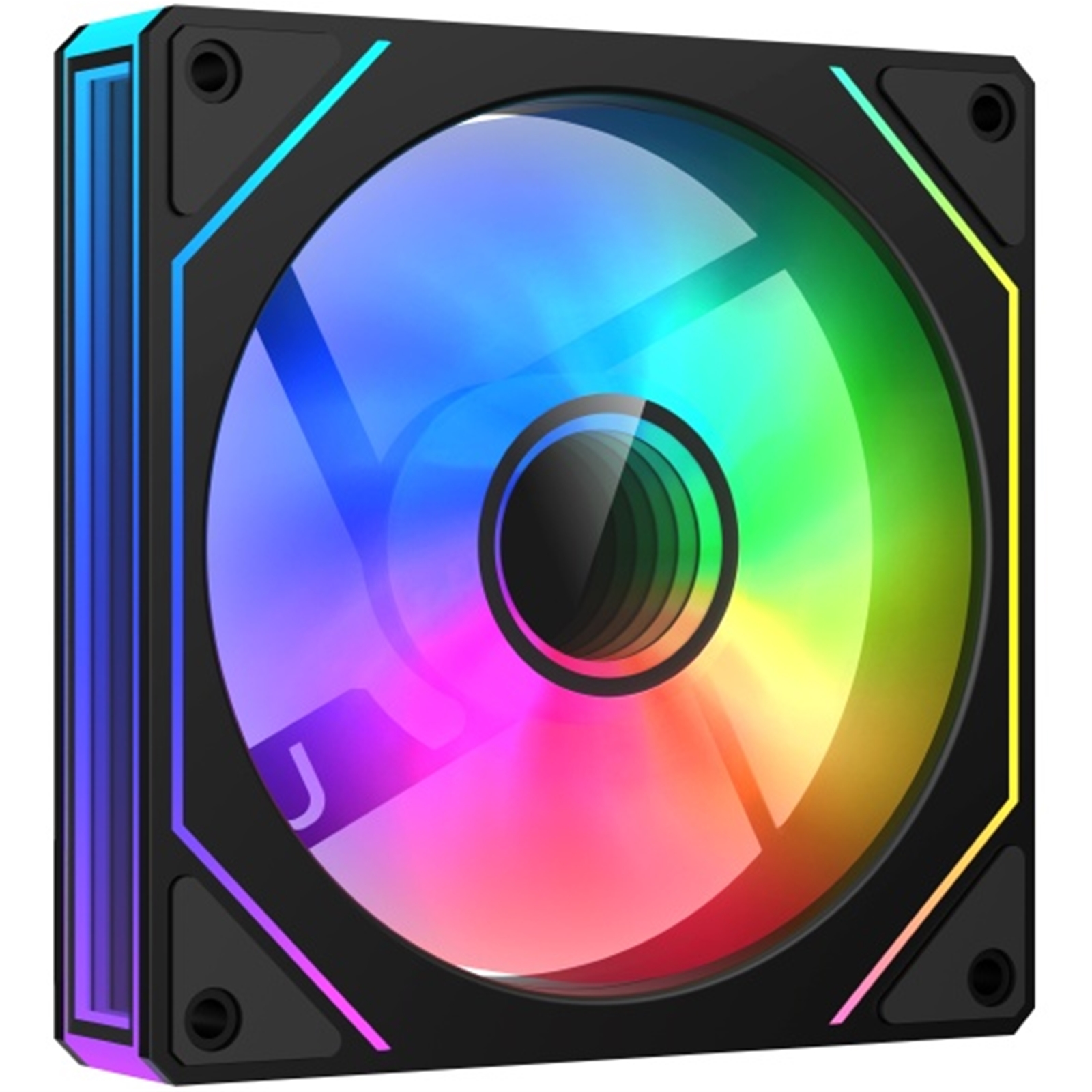

This 120mm ARGB PWM case fan is designed to deliver efficient cooling performance while enhancing the visual appeal of your PC build. Featuring a 9-blade design, it ensures optimal airflow and static pressure, making it suitable for various cooling applications.
Equipped with ARGB lighting, the fan offers vibrant illumination to complement your system's aesthetics. The hydro bearing technology ensures quiet operation and longevity, while the anti-vibration rubber pads minimize noise and vibration.
With PWM control, the fan speed can be adjusted based on system requirements, providing a balance between cooling performance and noise levels.
Key Features:
Efficient Cooling: Delivers high airflow and static pressure for effective cooling.
ARGB Lighting: Enhances the visual appeal of your PC with vibrant illumination.
Quiet Operation: Hydro bearing and anti-vibration pads ensure minimal noise.
PWM Control: Allows dynamic adjustment of fan speed based on system needs.
Specifications:
General:
Model Number:
R-EDF120-BKAPR17-G-1
Color:
Black
Quantity:
1 Fan
Fan Dimensions:
Size:
120 × 120 × 25 mm
Weight:
Approximately 150 g
Performance:
Speed:
500–1800 RPM ±10%
Airflow:
Up to 61.91 CFM
Static Pressure:
Up to 1.83 mmH2O
Noise Level:
=28 dB(A)
Electrical:
Rated Voltage:
12 VDC (Fan), 5 VDC (LED)
Rated Current:
0.13 A (Fan), 0.21 A (LED)
Power Consumption:
1.56 W (Fan), 1.05 W (LED)
Connectors:
Fan Connector:
4-pin PWM
LED Connector:
3-pin ARGB
Lighting:
Type:
RGB
Control:
Compatible with standard RGB controllers
Bearing Type:
Hydro Bearing
Materials:
Frame:
PBT (Polybutylene Terephthalate)
Blades:
Polycarbonate
Noise Dampening:
Rubber Pads:
Anti-vibration pads at each corner
Package Contents:
1 × 120mm RGB PWM Case Fan
Mounting Screws
User Manual
Warranty:
2 Years
Warranty:
2 Year Return To Base Warranty
There are currently no data sheets available for this product.
