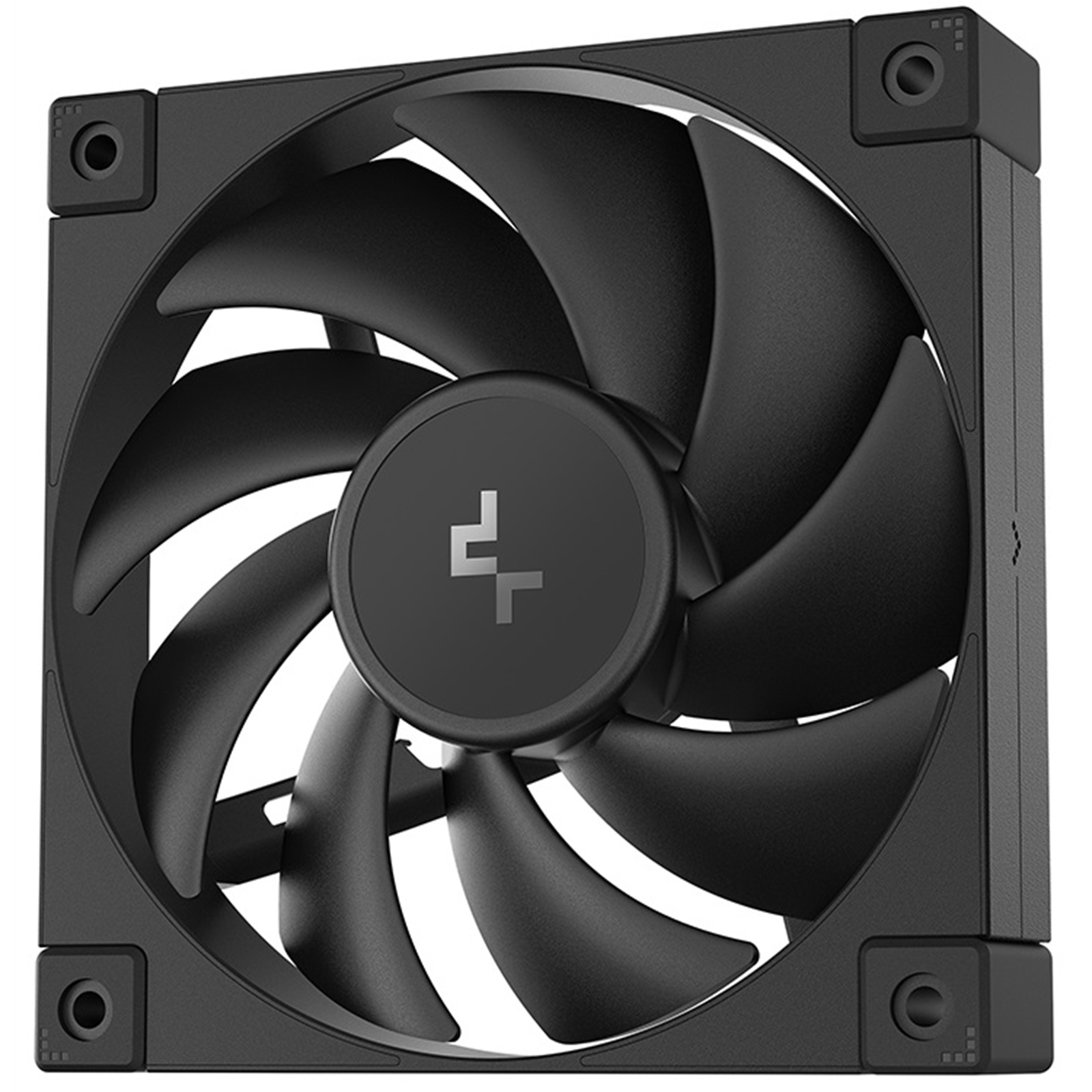

This 120mm PWM case fan is engineered to deliver strong airflow and static pressure for efficient system cooling. It features a high-performance 9-blade design that supports balanced thermal management while minimizing operational noise.
With a hydro bearing system and vibration-dampening rubber pads on each corner, the fan provides quiet and reliable operation over extended periods. The 8-pin daisy-chain connector simplifies cable management, making installation easier and cleaner for multi-fan setups.
Built with high-quality materials, this fan is a dependable choice for performance-focused users looking for cooling efficiency and ease of use.
Key Features:
High Airflow & Static Pressure: Designed to enhance both case ventilation and radiator performance
Low Noise Operation: Hydro bearing and rubber pads reduce sound and vibration
Daisy-Chain Support: 8-pin connector simplifies cable routing for multi-fan configurations
Durable Build: Made with robust frame and blade materials for long-term performance
Specifications:
Fan Dimensions:
120 × 120 × 25 mm
Performance:
Fan Speed: 400 – 2050 RPM ±10%
Airflow: Up to 64.2 CFM
Static Pressure: Up to 2.49 mmAq
Noise Level: =27.6 dB(A)
Electrical:
Rated Voltage: 12 VDC
Rated Current: 0.13 A
Power Consumption: 1.56 W
Connectors:
Fan Connector: 4-pin PWM
Daisy-Chain Connector: 8-pin proprietary
Bearing Type:
Hydro Bearing
Material:
Frame: PBT (Polybutylene Terephthalate)
Fan Blades: Polycarbonate
Mounting & Noise Control:
Rubber Dampening Pads: Yes, on all corners
Package Contents:
1 × 120mm PWM Case Fan
Mounting Screws
Installation Guide
Warranty:
3 Years
Warranty:
2 Year Return To Base Warranty
|
DESIGN
|
| Product colour |
Black |
| Number of fans |
1 fan(s) |
| Fan connector |
4-pin |
ENERGY MANAGEMENT
|
| Power consumption (typical) |
1.56 W |
| Rated voltage |
12 V |
OTHER FEATURES
|
| Fan performance |
64.2 cfm |
PERFORMANCE
|
| Type |
Fan |
| Airflow |
109 m³/h |
| Fan diameter |
12 cm |
| Suitable location |
Computer case |
| Minimum air pressure |
2.49 mmH2O |
| Noise level (high speed) |
27.6 dB |
| Rotational speed (max) |
2050 RPM |
| Rotational speed (min) |
400 RPM |
| Quantity per pack |
1 pc(s) |
WEIGHT & DIMENSIONS
|
| Weight |
175 g |
| Height |
25 mm |
| Width |
120 mm |
| Depth |
120 mm |
