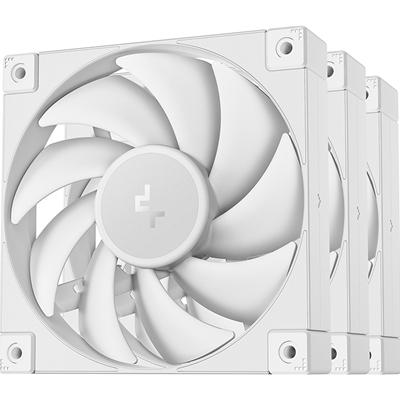

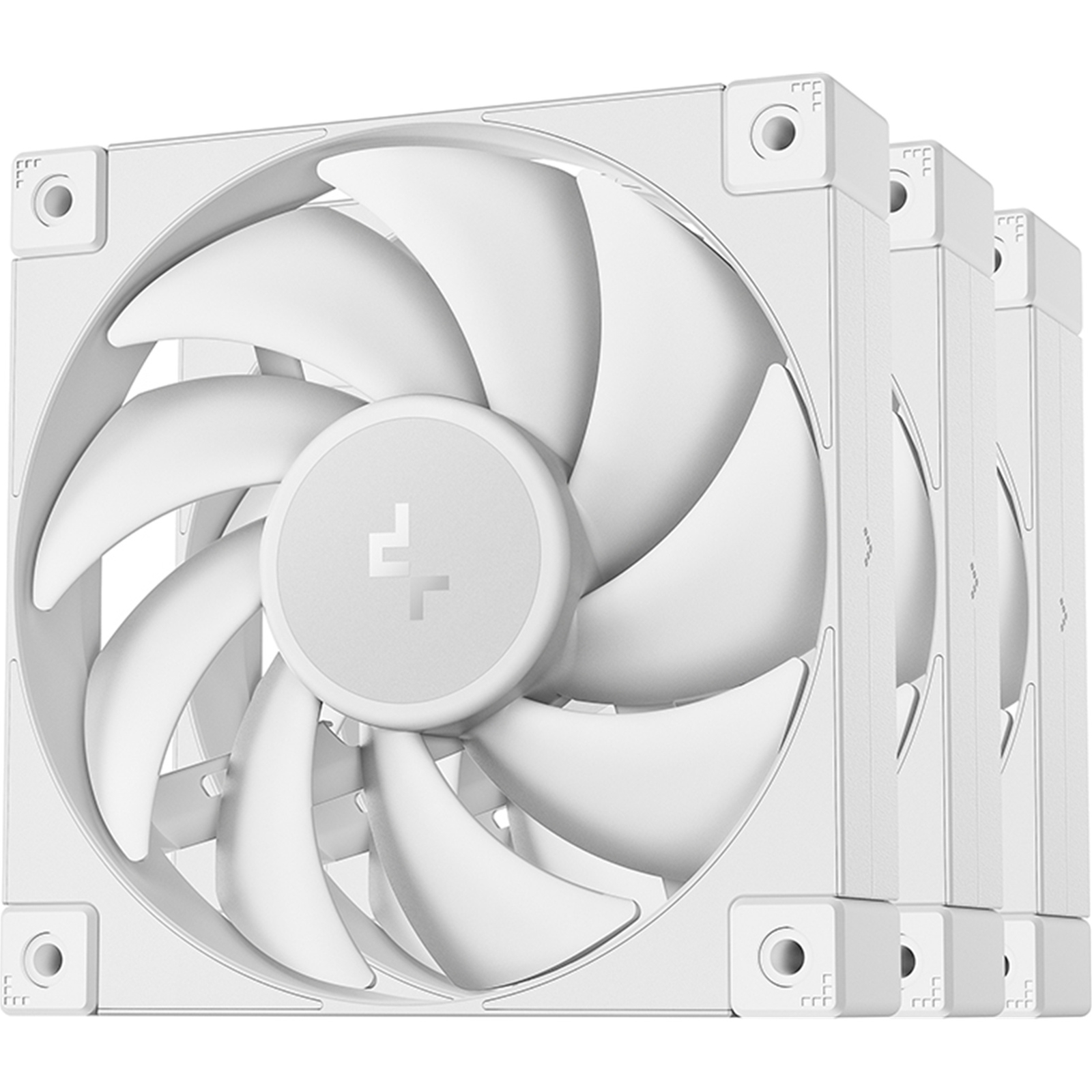

The DeepCool FD12 120mm White PWM case fan offers a blend of high performance and quiet operation, making it ideal for enhancing your PC's cooling system. Each fan features a 9-blade design that delivers strong airflow and static pressure, ensuring efficient cooling for your components.

Equipped with a hydro bearing system, these fans provide longevity and reduced noise levels. The inclusion of full-coverage rubber pads at each corner minimizes vibrations, ensuring stable and silent operation.

The fans come with a 4-pin PWM connector, allowing for dynamic speed control based on system requirements. This feature enables a balance between cooling performance and noise levels.

This 3-pack offers a cost-effective solution for users looking to upgrade their cooling system with reliable and efficient fans.

Key Features:
High-Efficiency Cooling: Delivers strong airflow and static pressure for effective cooling.#
Quiet Operation: Hydro bearing and anti-vibration pads ensure minimal noise.
PWM Control: Allows dynamic adjustment of fan speed based on system needs.
Durable Construction: Enhanced composite materials for frame and blades.
3-Pack Value: Provides multiple fans for a complete cooling solution.

Specifications:
General:
Model Number:
R-FD12-WHNPN3-G

Color:
White

Quantity:
3 Fans

Fan Dimensions:
Size:
120 × 120 × 25 mm

Weight (per fan):
Approximately 175 g

Performance:
Speed:
400–2050 RPM ±10%

Airflow:
Up to 64.2 CFM

Static Pressure:
Up to 2.49 mmAq

Noise Level:
=27.6 dB(A)

Electrical:
Rated Voltage:
12 VDC

Rated Current:
0.13 A

Power Consumption:
1.56 W

Connectors:
Fan Connector:
4-pin PWM

Daisy-Chain Connector:
8-pin proprietary

Bearing Type:
Hydro Bearing

Materials:
Frame:
PBT (Polybutylene Terephthalate)

Blades:
Polycarbonate

Noise Dampening:
Rubber Pads:
Anti-vibration pads at each corner

Package Contents:
3 × 120mm PWM Case Fans
Mounting Screws
User Manual

Warranty:
3 Years
