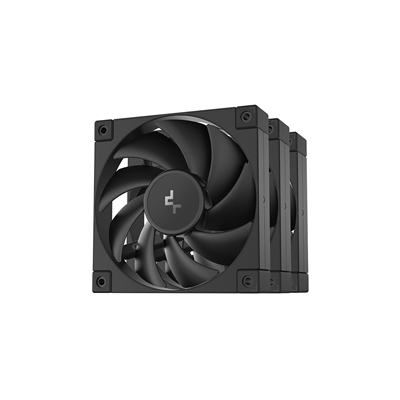

DeepCool FD12 ARBG Case Fan

The new DeepCool FD12 performance fans are the next evolution of the popular FK120 cooling fans. Revamped with a clean daisy chain cable and secure connectors, as well as a more durable and cleaner-looking frame. This package includes three FD12 performance fans.

NEXT WAVE OF DAISY CHAINS
Outfitted with an easy-to-manage 8-pin cable that can be chained to each of the FD fans, this greatly reduces the mess of fan wires that need to be managed.

SECURE CONNECTION
The 8-pin connectors in the fan frames have been greatly improved to utilize a block-shaped connection rather than the straight line found with the FC series. Quick, secure, and simple.

COOLING YOU CAN TRUST
Equipped with a long-life hydraulic bearing. The FD12 PWM fans boast exceptional cooling specs while remaining relatively quiet.
400-2050 RPM±10% Fan Speed
64.2 CFM Air Volume
2.49 mmAq Static Pressure=2
7.6 dB(A)Fan Noise

ENHANCED MATERIALS
By utilizing an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades, the entire fan assembly is extremely consistent and has a quieter overall sound profile

REDUCED VIBRATIONS
Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.

FANS YOU CAN DEPEND ON
The quality of these fans will last quite some time, but if anything arises, fear not, as all FD series fans are backed by DeepCool's limited warranty for three full years.

Specifications

Fan Dimensions
120x120x25 mm(LxWxH)

Net Weight
525g

Fan Speed
400~2050 RPM±10%

Fan Airflow
64.2 CFM

Fan Air Pressure
2.49 mmAq

Fan Noise
=27.6 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Hydro Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.13A

Fan Power Consumption
1.56 W
