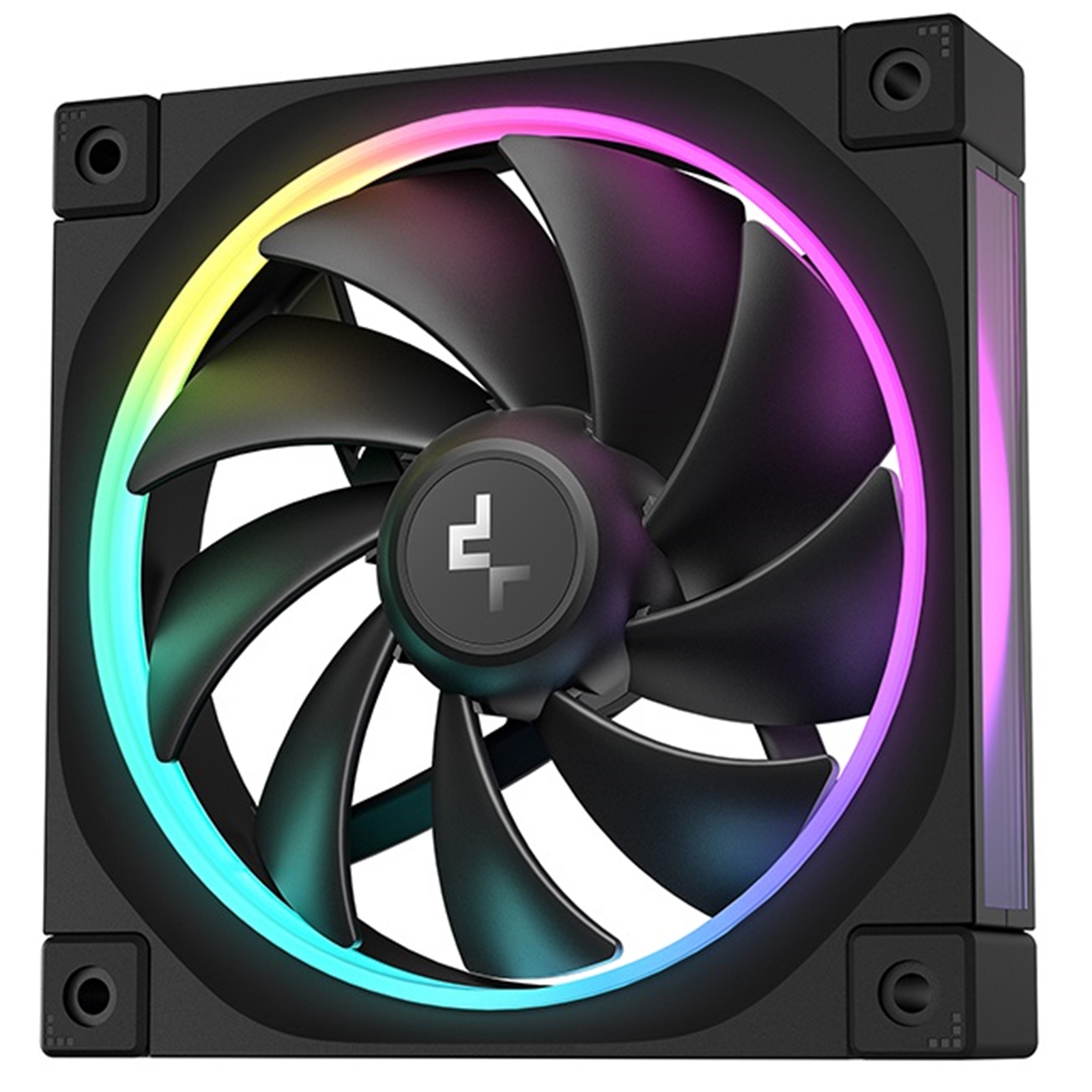

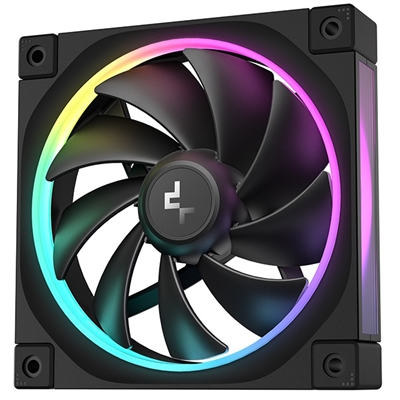

The DeepCool FL12 is a 120mm PWM case fan designed to deliver high-performance cooling with customizable lighting effects. Its addressable RGB LEDs allow for a wide range of lighting options, enhancing the aesthetic of your PC build.

Key Features:

Enhanced Durability: Constructed with an enhanced composite material based on PBT, the FL12's structure and dynamic balance are strengthened for improved durability.

Secure Connectivity: Equipped with 8-pin connectors that integrate PWM and ARGB SYNC, the FL12 ensures a more accessible and secure user installation experience.

Specifications:

Fan Dimensions:
120×120×25 mm (L×W×H)

Net Weight:
166 g

Fan Speed:
500~2150 RPM ±10%

Fan Airflow:
55 CFM

Fan Air Pressure:
2.82 mmAq

Fan Noise Level:
=32 dB(A)

Fan Connector:
4-pin PWM

Bearing Type:
Fluid Dynamic Bearing

Rated Voltage:
12 VDC

Rated Current:
0.15 A

Power Consumption:
1.8 W

LED Type:
Addressable RGB LED

LED Connector:
3-pin (+5V-D-G)

LED Rated Voltage:
5 VDC

LED Power Consumption:
2.75 W

Part Number:
R-FL12-BKAPN1-G

EAN:
6933412711063
